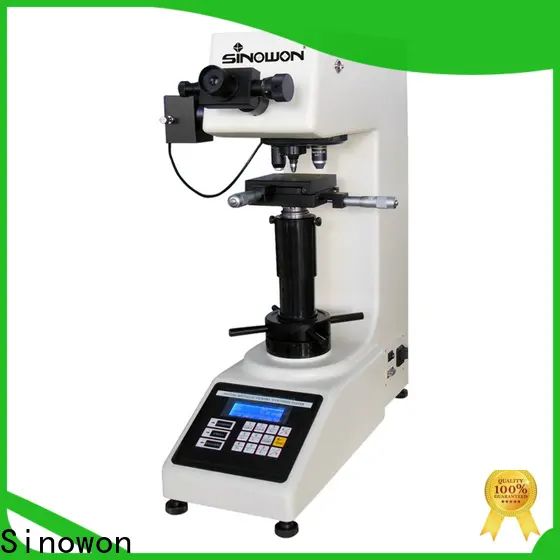

Sinowon elegant vickers hardness test design for small parts

Company Advantages
1. Sinowon barcol hardness tester is manufactured by skillful professionals using top class techniques and modernized machines. The product is highly praised in many exhibitions such as Shanghai Electronica China Show
2. This product enhances productivity and maximizes the use of available facilities and workers in the production process. The product can be controlled in a motorized way, to eliminate errors caused by manual operation
3. It exhibits durability and satisfactory wear performance due to the type and properties of its fibers, yarn fabric and structure, and any chemical and/or mechanical treatment associated with it. The product has been installed in many countries such as the US, Canada, Mexico, and Germany

◆ Hardness testing of metals and scientific researching;

◆ Hardness range from soft materials to very hard materials;

◆ Except very thin and coated layers, can test almost the metals.

◆ Apply closed loop loading sensor, MPU controls the loading, dwell and unloading process;

◆ Equips with LCD screen, show loading force, hardness value, dwell time;

◆ Manually reading indentation, then input dialog length to calculate hardness value;

◆ Available to add optional mini printer, motorized turret, and VicPad measurement device or PC software iVicky 2.0.

Product Name		Vickers hardness tester
Model		V-5	V-10	V-30	V-50
Code#		821-101	821-111	821-121	821-131
Loading Force	N	2.94、4.9、9.8、19.6、24.5、29.4、49.0	2.94、4.9、9.8、19.6、24.5、29.4、49.0、98.0	4.9、9.8、19.6、24.5、29.4、49.0、98.0、196、294	9.8、19.6、24.5、29.4、49.0、98.0、196、294、490
	Kgf	0.3、0.5、1、2、2.5、3、5	0.3、0.5、1、2、2.5、3、5、10	0.5、1、2、2.5、3、5、10、20、30	1、2、2.5、3、5、10、20、30、50
Optic System		Observe and Measure Objectives：10X/20X	Observe and Measure Objectives：10X/40X	Observe and Measure Objectives：10X/20X	Observe and Measure Objectives：10X/20X
Hardness Range		1HV-2967HV
Turret		Manual Turret（Optional Motorized Turret）
Loading Control		Auto loading dwell and unloading
Eyepiece		10x mechanical eyepiece
Dwell Time		5-60s adjustable
Illumination		LED / halogen
Vertical Space		170mm
Horizontal Space		130m
Power Supply		AC220V/50Hz; AC110V/60Hz
Tester Dimension		530x225x630mm
Packing Dimension		630x460x710mm
Gross / Net Weight		75Kg/55Kg
Conform Standards		ISO6507，ASTM E92，JIS Z2244，GB/T4340
