Sinowon elegant vision software inquire now for commercial

Company Advantages
1. Sinowon visionscape software is designed with a trendy and aesthetically-appealing look.
2. The product provides good reliability and superior performance at a low cost.
3. The product comes up to the standards in terms of quality and performance.
4. People who live or work in a fairly loud area such as office can install this product to effectively keep the noise out.
5. People can use this product to decrease energy expenses and respond to the financial impact of unpredictable sharp energy price increases that could happen in the years to come.

◆ Precision optical design, high resolution, low distortion, excellent optical performance.

◆ Super long working distance, big FOV range.

◆ Multiply coating technology, reduce the stray light and ghost, offering high quality image.

◆ Anodized metal part, improved endurance.

◆ Compact and reliable structure.

Widely used in industry inspection, automation, electronic communication, semiconductor, scientific research, etc.

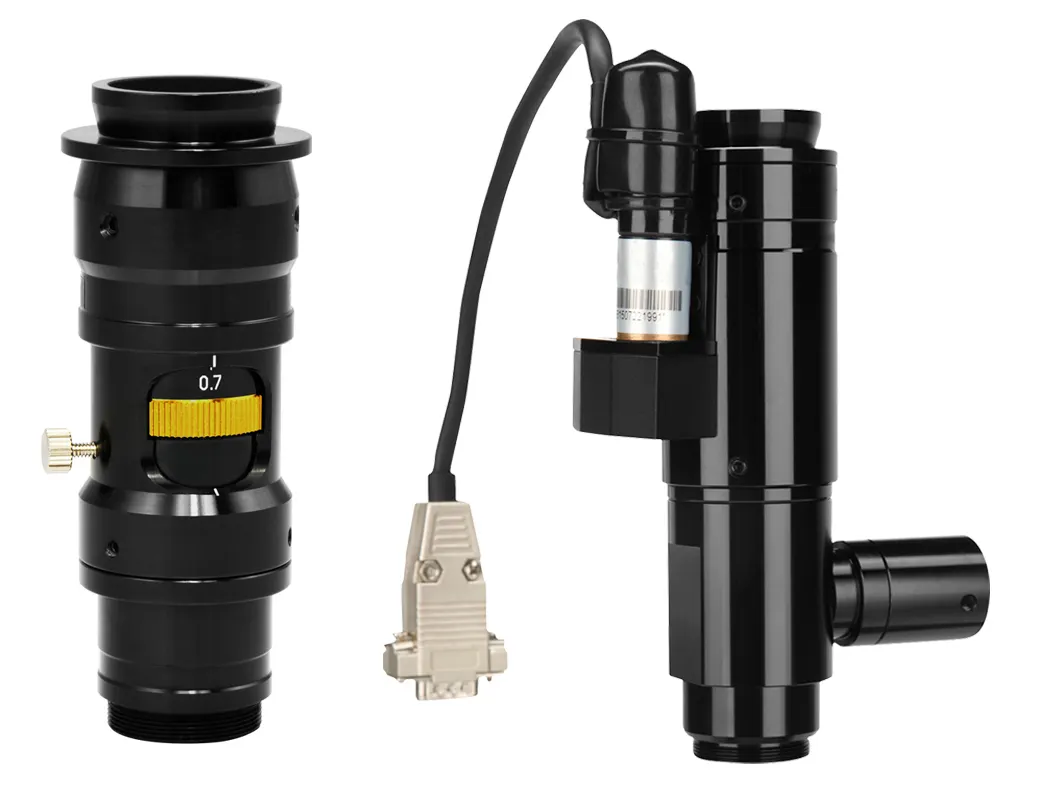

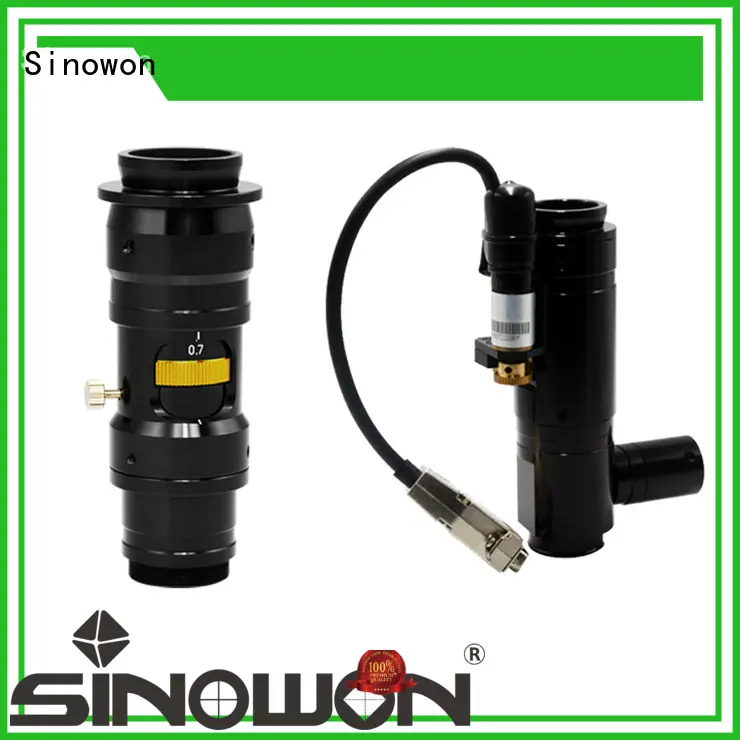

Model

Zoom745

Zoom745C

Zoom745D

Zoom745DC

Zoom745M

Zoom745HC

Type

Zoom Lens

Coaxial Illumination Zoom Lens

Detented Zoom Lens

Detented With Coaxial Illumination

Motorized Zoom

Motorized Zoom Lens With Coaxial Illumination

Zoom Control

Manual Zoom

Manual Zoom

Manual Zoom

Manual Zoom

Motorized Zoom

Motorized Zoom

Optical Magnification

0.7X~4.5X

Working Distance

90±2mm

80±2mm

Magnification

0.7X

1.0X

1.5X

2.0X

2.5X

3.0X

3.5X

4.0X

4.5X

DOF（mm）

1.9

0.952

0.44

0.29

0.23

0.16

0.13

0.12

0.1

N.A.

0.03

0.042

0.06

0.07

0.07

0.085

0.085

0.085

0.085

F.No.

11.6

2.1

12.5

14.2

17.8

17.6

20.5

23.5

26.5

Resolution （um）

11.18

7.99

5.59

4.79

4.79

3.95

3.95

3.95

3.95

TV Distortion

0.019%

0.035%

0.002%

0.003%

0.004%

0.001%

0.001%

0.002%

0.002%

FOV（mm） DxHxV

2/3"

15.71x12.57x9.43

11.00x8.80x6.60

7.33x5.87x4.40

5.50x4.40x3.30

4.40x3.52x2.64

3.67x2.93x2.20

3.14x2.51x1.89

2.75x2.20x1.65

2.44x1.96x1.47

1/2"

11.43x9.14x6.86

8.00x6.40x4.80

5.33x4.27x3.20

4.00x3.20x2.40

3.20x2.56x1.92

2.67x2.13x1.60

2.29x1.83x1.37

2.00x1.60x1.20

1.78x1.42x1.07

1/3"

8.57x8.86x5.14

6.00x4.80x3.60

4.00x3.20x2.40

3.00x2.40x1.80

2.40x1.92x1.44

2.00x1.60x1.20

1.71x1.37x1.03

1.50x1.20x0.90

1.33x1.07x0.80

Max.Sensor Size

2/3"

Mount

C-Mount

Coaxial Illumination

1. Infinity parallel incident light, with shadow-free and uniform illumination.

2. Coaxial illumination structure ensure even illumination.



Detented zoom lens

1. Mechnical positiong structure, high accuracy in zoom and repetitive positioning

2. 15-divided points for mechanical positioning

3. High hardness alloy material, for a long lifespan;Precision mechanical structure.

Motorized Zoom

1.High speed in zoom and focus and high accuracy in repetitive positioning; Imported DC servo motor, closed loop control.

2.Single or double motor control system via 9-PIN RS232.

3.Stable quality performance even in the strong vibration environment.

Fine-focus Device

1. Used in narrow space, adjust fine-focus part for focusing on different height surface of parts, no need to change WD;

2. Fine focus range: 3mm-12mm;

3. Manual and motorized structure.

Company Features
1. Sinowon Metrology Instrument is China's outstanding overall solution provider for vision software systems.
2. We have a highly capable team with extensive knowledge, skills, and experience to develop, manufacture and sell innovative products, meeting our customer requirements.
3. Performance with integrity is a fundamental value of Sinowon Innovation Metrology Manufacture Limited.. Welcome to visit our factory! Sinowon holds the belief that pursuing the excellence will bring more benefits for itself. Welcome to visit our factory!
