Sinowon excellent portable hardness tester with good price for measuring

Company Advantages
1. Sinowon hardness testing equipment has been inspected in terms of its quality. It will be checked in terms of its workmanship defects such as poor lasting performance, incomplete bonding, and stitching errors. Its packing is made seriously to guarantee the safety during shipment
2. Due to its significant advantages in the market, this product has great market prospects. Imported materials and accessories are used in product manufacturing
3. Strict quality control process runs through the whole production process and eliminates the possible defects. It is well recognized by more than 5000 customers

◆ Hardness testing of metals and scientific researching;

◆ Hardness range from soft materials to very hard materials;

◆ Except very thin and coated layers, can test almost the metals.

◆ Apply closed loop loading sensor, MPU controls the loading, dwell and unloading process;

◆ Equips with LCD screen, show loading force, hardness value, dwell time;

◆ Just aim the dialog line, then it will automatically reading the length and display hardness value

◆ Available to add optional mini printer, motorized turret, and VicPad measurement device or PC software iVicky 2.0.

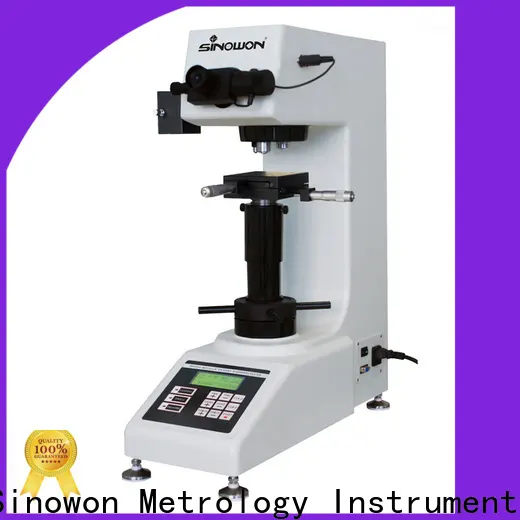

Product Name		Digital Vickers hardness tester
Model		SV-5	SV-10	SV-30	SV-50
Code#		821-101S	821-111S	821-121S	821-131S
Loading Force	N	2.94、4.9、9.8、19.6、24.5、29.4、49.0	2.94、4.9、9.8、19.6、24.5、29.4、49.0、98.0	4.9、9.8、19.6、24.5、29.4、49.0、98.0、196、294	9.8、19.6、24.5、29.4、49.0、98.0、196、294、490
	Kgf	0.3、0.5、1、2、2.5、3、5	0.3、0.5、1、2、2.5、3、5、10	0.5、1、2、2.5、3、5、10、20、30	1、2、2.5、3、5、10、20、30、50
Optic System		Observe and Measure Objectives：10X/20X	Observe and Measure Objectives：10X/40X	Observe and Measure Objectives：10X/20X	Observe and Measure Objectives：10X/20X
Hardness Range		1HV-2967HV
Turret		Manual Turret（Optional Motorized Turret）
Loading Control		Auto loading dwell and unloading
Eyepiece		10x digital Eyepiece
Dwell Time		5-60s adjustable
Illumination		LED / halogen
Vertical Space		170mm
Horizontal Space		130m
Power Supply		AC220V/50Hz; AC110V/60Hz
Tester Dimension		530x225x630mm
Packing Dimension		630x460x710mm
Gross / Net Weight		75Kg/55Kg
Conform Standards		ISO6507，ASTM E92，JIS Z2244，GB/T4340

Company Features
1. Our production team is made up of talented members. Combining with their years of experience, they have a unique outlook on the industry and this translates into the way that they work with customers.
2. Sinowon entrepreneurs must strive to achieve the goals of the world's portable hardness tester pioneers! Inquire now!
