A professional manufacturer of measuring & testing equipment.

Sinowon hardness testing machine directly sale for small parts 1
Sinowon hardness testing machine directly sale for small parts 2
Sinowon hardness testing machine directly sale for small parts 1
Sinowon hardness testing machine directly sale for small parts 2

Sinowon hardness testing machine directly sale for small parts

Model:
DigiRock BRV3
Code#:
811-160
Warranty:
12 month
Delivery Time:
15-30days
Standard:
ISO 6508,ASTM E18,JIS Z2245,GB/T230
Certificate:
CE
Inquiry
Company Advantages
1. hardness testing machine is of novel design and has characteristics of rockwell hardness testing machine price . The product is excellent in dust prevention
2. This product has attracted a lot of attention and will be used more by people in various fields. The quality is reliable and the service life is long
3. To meet the needs of our rapid social development, hardness testing machine is considered to be the unique characteristics of our products. It is aimed at more than 60 countries and regions for exports

Sinowon hardness testing machine directly sale for small parts 3



Product Feature

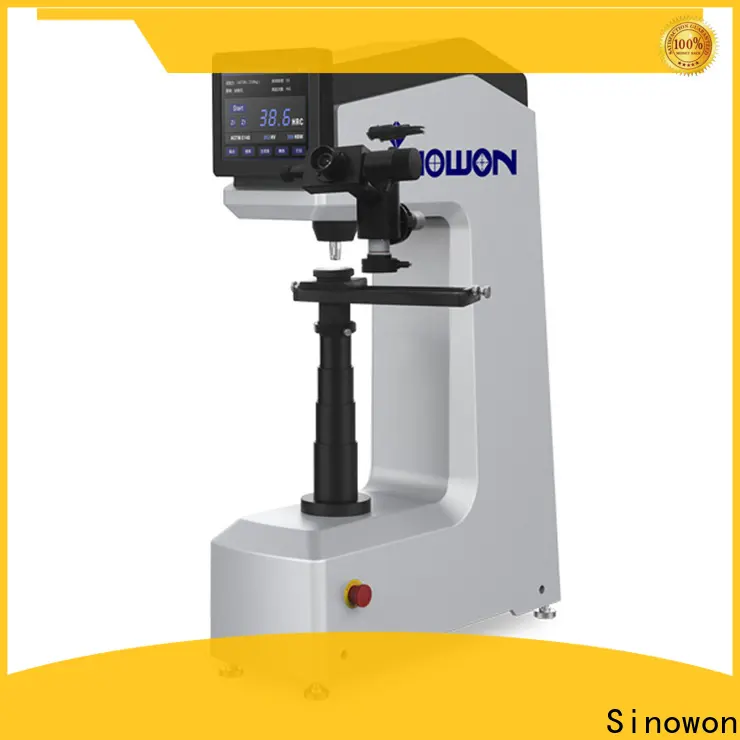

 DigiRock BRV3 is a universal hardness testing instrument for the measurement of Brinell, Rockwell and Vickers scale.

 DigiRock BRV3 equips 7-testing-foce and 5-indenter, it is universal to measure most of metal material.

 DigiRock BRV3 dwell time from 2 to 60S can be setup on LCD panel, it is much convenient than the setup on the manual hardness tester;

◆ DigiRock BRV3  loading ,dwell and unloading is driven by electronic motor automatically , doesn’t need the operator to handle it, it eliminates the human operating error maximum ;

◆ DigiRock BRV3 doesn’t need the operator to read and check the hardness scale table ,it will compute and display the testing result once press the key of digital length sensor.



Specification



Product NameDigital Universal Hardness Tester
ModelDigiRock BRV3
Code#811-160
Rockwell ScalesHRA, HRB, HRC
Rockwell Testing Force60Kgf(588.4N)、100Kgf(980.7N)、150Kgf(1471N)
Brinell ScalesHBW1/30、HBW2.5/62.5、HBW10/100、HBW2.5/187.5
Brinell Testing Force31.25Kgf(306.5N)、62.5Kgf(612.9N、187.5Kgf(1839N)
Vickers ScalesHV 30、HV100
Vickers Testing Force30Kgf(294.2N)、100Kgf(980.7N)
Rockwell Hardness Indication

Digital LCD display

Rockwell Resolution0.1HR
Loading ControlAutomatic
Magnification of MicroscopeBrinell:50x; Vickers:100x
Dwell TimeAdjustable 1~60s
Max. Height Of Specimen

Rockwell:300mm; Brinell, Vickers:260m

Instrument Throat173mm
Dimension(LxWxH)620x210x900mm
Packing Dimension710x530x1000mm
Power supplyAC220V/50Hz;AC110V/60Hz
Gross/Net Weight143Kg/120Kg
Execution StandardISO 6508,ASTM E18,JIS Z2245,GB/T230


Application




Rockwell B Scale HRB: Copper alloys, soft steels, aluminum alloys, malleable iron, etc.

Rockwell C Scale HRC: Steel, hard cast irons, pearlitic malleable iron, titanium, deep case hardened steel, and other materials harder than B100.

Rockwell A Scale HRA: Cemented carbides, thin steel, and shallow case-hardened steel.




Company Features
1. Under the strict test of rockwell hardness testing machine price , Sinowon has the capability of manufacturing the selected hardness testing machine .
2. Sinowon Innovation Metrology Manufacture Limited.'s R&D team is an experienced expert in many core technologies for rockwell test .
3. Our company has established a corporate social responsibility framework. Under the guideline of this framework, the company contributes to supporting foundations which help the disadvantaged, starving people, and those with social needs. Check now!
