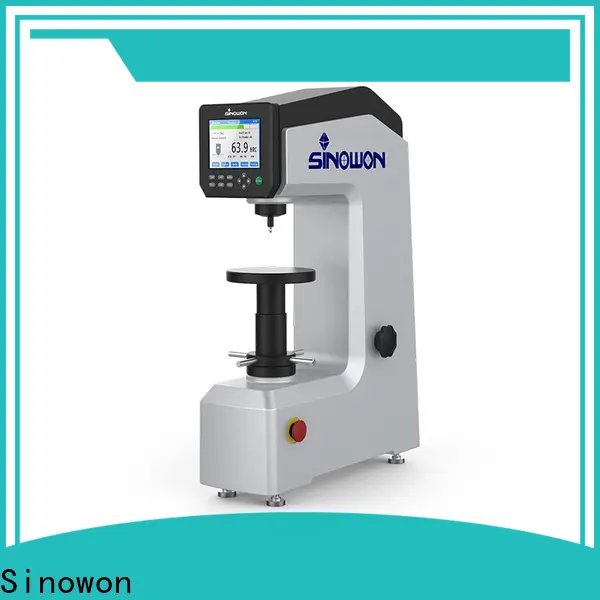

Sinowon hot selling rockwell hardness examples manufacturer for thin materials
1. A range of quality inspections for Sinowon hardness tester price will be carried out by professionals. It will be checked in terms of surface smoothness, stability, harmoniousness with space, and actual practicability. Imported materials and accessories are used in product manufacturing
2. Sinowon Innovation Metrology Manufacture Limited. is a professional manufacturer and exporter that is concerned with the design,development and production of hardness tester price and rockwell hardness test equipment . The product is designed by professional designers to be user-friendly
3. The product can withstand extreme weather elements. It can resist extreme cold, hot, dry, and humid environment without losing its original properties. The product is well used in many large engineering projects
4. The product is well known for its acoustic property. It can reduce the speed of particles carrying sound waves in the air to absorb sound. It can be customized according to customers' needs
5. The product features enough durability. The materials of the outsole contain polymers that are infused with sulfur to provide more durability while maintaining the shoe's elasticity. It is supported by multiple languages say English, Turkish, and German
Product Feature
◆ Semi automatic hardness tester except loading initial force and change force knob. Operation is very convenient and fast.
◆ Motorized control loading, dwell and unloading, eliminates error by manual operation.
◆ Built-in micro processor auto compute max, min, mean and deviation value, resolution is 0.1HR, largely improve accuracy.
◆ Auto hardness conversion to others scales, no need to check table and improve working efficiency.
◆ Support Multiple languages, English, Turkish, German, etc. Convenient for local customers operation.
◆ Save 2000 single testing results and 1000 group results for reviewing and analysis.
◆ Optional blue tooth mini printer is available.
Specification
| Product Name | Digital Rockwell Hardness Tester |
| Model | DigiRock DR3 |
| Code# | 811-130 |
| Rockwell Scales | HRA、HRB、HRC、HRD、HRE、HRF、HRG、HRH、HRK、 HRL、HRM、HRP、HRR、HRS、HRV |
| Preliminary Test Force | 10Kgf(98.07N) Permitted Error：±2.0% |
| Addtional Test Fore | 60Kgf(588.4N)、100Kgf(980.7N)、150Kgf(1471N) Permitted Error：±1.0% |
| Dwell Time | Adjustable 1-60s |
| Hardness Indication | 5.2” Color Touch Screen, Resolution:640x480 |
| Resolution | 0.1HR |
| Loading Control | Auto Loading/Dwell/Unloading |
| Hardness Conversion | HRC、HV、HBS、HBW、HK、HRA、HRD、HR15N、HR30N、 HR45N、HS、HRF、HR15T、HR30T、HR45T、HRB |
| Conversion Standards | ASTM、DIN |
| Language Option | Chinese, English, German, Portuguese, Turkish, Czech, Korean |
| Correction Range | -3.0HR to +3.0HR, Step 0.1HR |
| Data Memory | 2000 Single Measuring Result, Curve Analysis, Results Reviewing And Analysis |
| Data Output | Optional Blue Tooth Mini Printer |
| Max. Height Of Specimen | 175mm |
| Instrument Throat | 165mm |
| Power supply | AC220V/50Hz;AC110V/60Hz |
| Dimension(LxWxH) | 546x182x755mm |
| Packing Dimension | 620x460x870mm |
| Gross/Net Weight | 120Kg/90Kg |
| Execution Standard | GB/T230.2, EN-ISO6508, ASTM E-18 |
Standard Delivery:
| Product Name | Code# | Product Name | Code# |
| Instrument Main Body | 811-130 | 1/16" Ball Indenter | 811-411 |
| Hardness Block (57-70) HRC | 811-641C | 1/16" Ball | 811-421 |
| Hardness Block (20-33) HRC | 811-611C | Diamond Spheroconical Indenter | 811-401 |
| Hardness Block (85-100) HRB | 811-641B | Weight A | 811-741 |
| Ø 150mm Flat Anvil | 811-541 | Weight B | 811-751 |
| Ø 60mm Flat Anvil | 811-521 | Weight C | 811-761 |
| Ø 40mm V-grooved Anvil | 811-511 | Power Cable | 811-801 |
| Accessories Box | 811-901 | Instrument Manual | DigiRock DR3 |
Application
Rockwell B Scale HRB: Copper alloys, soft steels, aluminum alloys, malleable iron, etc.
Rockwell C Scale HRC: Steel, hard cast irons, pearlitic malleable iron, titanium, deep case hardened steel, and other materials harder than B100.
Rockwell A Scale HRA: Cemented carbides, thin steel, and shallow case-hardened steel.
Company Features
1. Covering a large scale, the factory owns 50% of highly automatic production lines. With space combining with technologies, we can flexibly arrange the production lines to coordinate the production demands.
2. Sinowon stresses the importance of service during the whole process. Please contact us!
