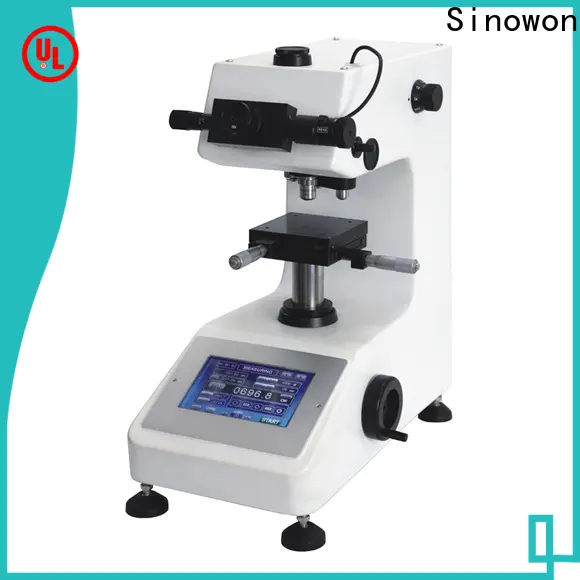

Sinowon micro vickers hardness tester directly sale for measuring
1. The production of Sinowon microhardness tester price follows the international standards and green norms. More than 10,000 pcs have been delivered and installed
2. This Sinowon branded product will find a ready market overseas. The product is excellent in dust prevention
3. micro vickers hardness tester is applied to many fields of microhardness tester price . Its packing is made seriously to guarantee the safety during shipment
Characteristics
◆ Micro-Vickers hardness tester with colour touch screen;
◆ 8 inches colour touch screen , high resolution , easy to operate;
◆ Strong and stable body;
◆ LED illumination , light , adjustable , long life and no heat;
◆ Data storage for review and printing;
◆ Rotatable turret with five working positions;
◆ 250 lines encode with more precise measurement;
◆ D1 and D2 exchange automatically (Vicky MHV-2000Plus);
◆ Conversion between different scales;
◆ Two indenters available (Vickers and Knoop);
◆ Can be developed to semi-automatically or full-automatically system.
Application Range
◆ Testing very thin materials like foils, thin pieces, coatings layers, etc;
◆ Measuring hardness of the surface of a part, small parts or small areas;
◆ Measuring individual micro-structures;
◆ Measuring the depth of case hardening by sectioning a part and making a series of indentations to describe a profile of the change in hardness.
Specification
Model | Vicky MHV-1000 Plus | Vicky MHV-2000 Plus | |
Code# | 823-160Plus | 823-260Plus | |
Test Load | gf | 10 / 25 / 50 / 100 / 200 / 300 / 500 / 1000 / 2000 (option) | |
mN | 98.07/ 245.2/ 490.3/ 980.7/ 1961/ 2942/ 4903/ 9807/19614 (option) | ||
Loading Mechanism | Automatic loading and releasing method 50 ~100 µm/s | ||
Dwell Time | 5 ~ 99 s | ||
Turret Mechanism | Automatic | ||
Objective | 40x/10x ( Option:20x,80x ) | ||
Magnification of Microscope | For measurement :400x ( Objective 40X and Eyepiece 10X ) | ||
For observation : 100x ( Objective 10X and Eyepiece 10X ) | |||
Measuring Microscope | Electronic ( Auto D1/D2 ) | ||
Max. Measuring length | 230 µm ( In case of 400x ) | ||
Mix. Measuring unit | 0.1µm (0.01µm for TS type) | ||
Max.Specimen Height | 90mm | ||
Max.Specimen Depth | 110mm | ||
Measuring Hardness Scale | HV, HK | ||
X-Y Stage | Manual type | ||
Dimensions | 110 × 110 mm | ||
Max. movement | 25 × 25 mm | ||
Min. micro graduation | 1/100 mm | ||
Light Source | LED Illuminator | ||
Print Output | Measured data and statistic data :( Max. Value / Min. value / Mean value / Range / Standard deviation ) | ||
Accuracy | Conform to : JIS B -7735, ASTM E-384 and ISO 146 | ||
Photographic Device | Capable to mount photographic device ( Option) | ||
Dimensions | W 240 × D 470 × H 520 mm | ||
Weight | 48Kg | ||
Power Supply | Single phase AC 220 V 50/60 Hz | ||
Company Features
1. Sinowon Innovation Metrology Manufacture Limited. is a global leading micro vickers hardness tester company having its own large-scale manufacture base.
2. In terms of technical capabilities, Sinowon Innovation Metrology Manufacture Limited. is powerful in the industry.
3. We embrace social responsibility in our products, the way we conduct our business, and in our relations with customers, employees, vendors, shareholders, and communities.
