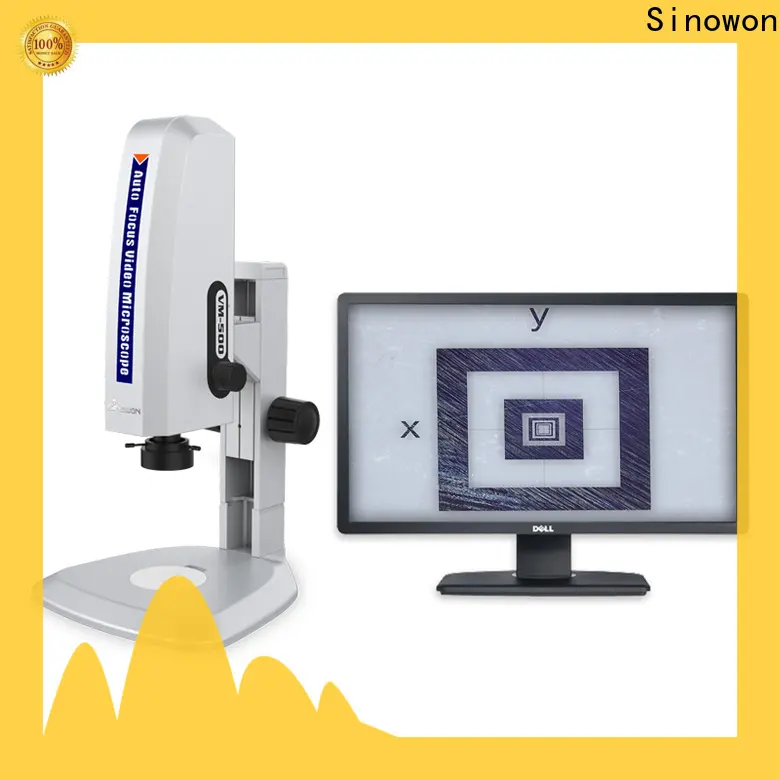

Sinowon microscope microscope wholesale for steel products
Application:
It can be applied to incoming inspection, production inspection, material research, PCB and SMT inspection analysis, printing, textile inspection, biological anatomy, medical testing and other fields.
Product Feature
◆ Integral design, exquisite, fashion, generous;
◆ Built-in high-definition HDMI integrated camera, directly connected to HDMI display, can take pictures or videos;
◆ With high definition 0.7~4.5X parallel continue zoom lens, it is much more convenience and fast to switch objective magnification;
◆ With adjustable LED surface reflection illumination, is able to control brightness independently;
◆ With 2 mega pixel auto focus camera, no need to waste time for manual focus frequently;
◆ Multiple optional mobile control platform, ensure precision position measurement;
◆ With its own measurement function, it can measure linear dimensions such as distance, perimeter, area, angle, radian, width, height, and radius elements.
Measurement Function Introduction
Field of View
Specification
Product Name | Auto Focus Video Measuring Microscope |
Model | VM-500Plus |
Code# | #451-450P |
Electronic Magnification | 32X-206X ( HDMI 16:9 24”Monitor） |
Optical Objective | 0.7X~4.5X Zoom Lens |
Zoom ratio：6.5:1 | |
0.5X C-mount camera adapter mirror | |
Camera Parameters | 2MPixel（1920*1080） |
Image Size:1/2.8” | |
Frames：1080P@60fps | |
Measuring Function | Linear dimensions such as distance, perimeter, area, angle, radian, width, height, and radius elements are measured |
Measurement Accuracy | 0.02mm~0.003mm |
Illumination | Adjustable LED Surface Illumination |
Microscope Stand | Z-axis Travel: 100mm |
AC90~240V/50~60HZ | |
Dimension | 375*285*500 mm |
Weight | 6.5Kg |
Application
Optional Accessories
