A professional manufacturer of measuring & testing equipment.

Sinowon multisensor measuring machine manufacturer for thin materials 1
Sinowon multisensor measuring machine manufacturer for thin materials 2
Sinowon multisensor measuring machine manufacturer for thin materials 1
Sinowon multisensor measuring machine manufacturer for thin materials 2

Sinowon multisensor measuring machine manufacturer for thin materials

Model:
Micromea443
Code#:
528-130
Accuracy:
XY-axis:≤2+L/200(um)
Warranty:
15-month
Delivery Time:
30-day
Inquiry
Application Scope
hardness testing machines developed and produced by Sinowon is mainly applied to the following aspects.Sinowon insists on providing customers with reasonable solutions according to their actual needs.
  • Sinowon multisensor measuring machine manufacturer for thin materials 3
Company Advantages
1. The quality of Sinowon multisensor measuring machine manufacturer has been tested for many times by the third-party authority, thus it can meet the lighting standards both domestic and international.
2. This product has passed ISO and other international certification, quality is guaranteed.
3. The product complies with international quality standard and can stand any strict quality and performance test.
4. Besides known advantages, it has many additional functionality to be discovered.
5. The product has huge commercial potentials to be developed.

Sinowon multisensor measuring machine manufacturer for thin materials 4

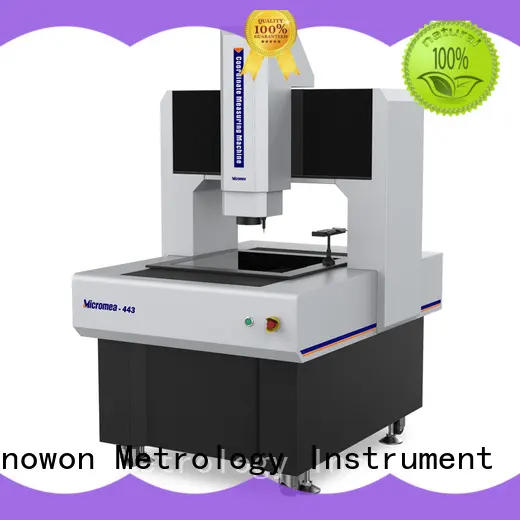

Micromea433 is a Multisensor Measuring Machine, it is designed for high accuracy and large dimension measurement. It has high precision measurement accuracy and stability. It is widely used in electronic industry, medical devices, LCD, aerospace and other industries measurement.


Product Characteristics


 Four-axis CNC fully auto loop control, auto measurement;

 Marble base and pillar, stable and reliable;

 Imported open type linear scale, resolution is 0.1um, high accuracy, great stability;

 Imported P-grade linear guide, precision grinding ball screw and AC servo motor, ensure accuracy stability of system position;

 Imported high definition color industry camera, ensure clear observation and stable measurement requirement;

 6.5X continue auto zoom lens, precision auto zoom, only need to make pixel calibration once time;

 Programmable 5-ring 8-division LED surface illumination, contour parallel LED illumination, can realize 256 grade brightness adjustment intelligently;

 With proprietary fully auto measuring software Rational vue, powerful function, simple operation;

 Optional touch probe and laser probe, it can also be customized according to customer request.



Technical Specification



Product Name

Multisensor Measuring Machine

Model

Micromea443

Code#

528-130

X/Y-axis Travel

400x400mm

Z-axis Travel

300mm

X/Y/Z 3-axis

 Linear Scale

Resolution0.0001mm

Guidance Mode

High-precision   Double-Track Linear Guide

Operation   Mode

Joystick   controller, Mouse operation, automatic detection program

Probe System

TP20 and MCR20   Probe change system

Measurement   Accuracy*

XY-axis≤2+L/200(um)

Z-axis≤3+L/200(um)

Repeatability

±1.8um

Video System**

1/2" Color CCD Camera

6.5X Automatic Zoom Lens;

Optical Magnification: 0.7X~4.5X,

 Video Magnification:   20X~129X(21.5”monitor)

Field of View

(mm)

Diagonal   *

Horizontal*Vertical

Lens   Magnification

0.7x

1x

2.0x

3.0x

4x

4.5x

1/2"CCD

11.43x9.14x6.86

8.00x6.40x4.80

4.00x3.20x2.40

2.67x2.13x1.60

2.00x1.60x1.20

1.78x1.42x1.07

Illumination

Contour

LED Parallel Contour Illumination

Surface

5-ring 8-division 0~255 grade continue adjustable

Software   System

RationalVue MS

Load Capacity

30Kg

Working   Environment

Temperature 20±2Humidity Range<2/hr, Humidity 30~80%,Vibration<0.002g,<15Hz

Power

220V/50Hz/10A

Dimension

1600x1050x1650mm

Packing   Dimension

1800x1400x2000mm

Weight

1380Kg







Company Features
1. Sinowon Innovation Metrology Manufacture Limited. has gained a stable standing in the market. Our multisensor measuring machine manufacturer manufacturing ability has been recognized.
2. Occupying a large area, the factory has sets of fully-automatic and semi-automatic production machines. With these high-efficient machines, the monthly product yield has been significantly increased.
3. Sinowon Innovation Metrology Manufacture Limited. has the courage to lead the future and seize every opportunity to continue to learn and be proactive in multisensor measuring machine field. Inquire! Sinowon Innovation Metrology Manufacture Limited. has always adhered to the business tenet of 'Quality First, Credit First'. Inquire! Sinowon believes that ever-improving quality of service and competitive price of measuring machine will be the best choice for the development of Sinowon. Inquire!
