Sinowon polishing equipment design for LCD
1. Sinowon grinding and polishing equipment is made as per the international quality standards.
2. The product is less likely to corrode. Treated with multi-layer electroplating technique, it has a metallic membrane on its surface to prevent corrosion.
3. This product has many excellent properties and can be widely used.

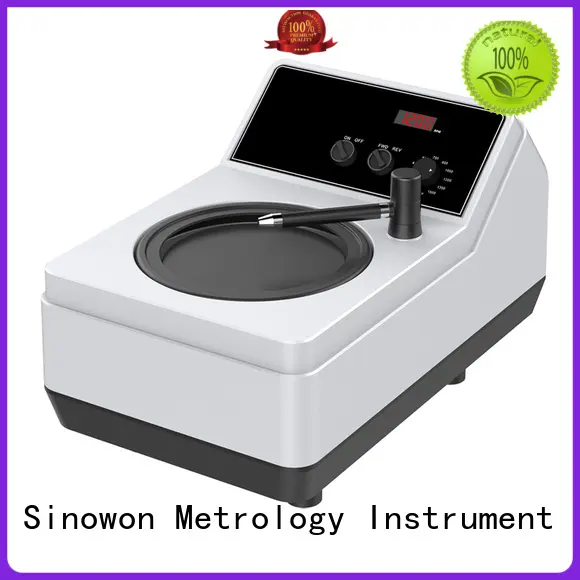

GP-201/251/301 are single wheel grinder and polisher for metallographic specimen preparation. The strong and variable speed drive allows application for all working steps.

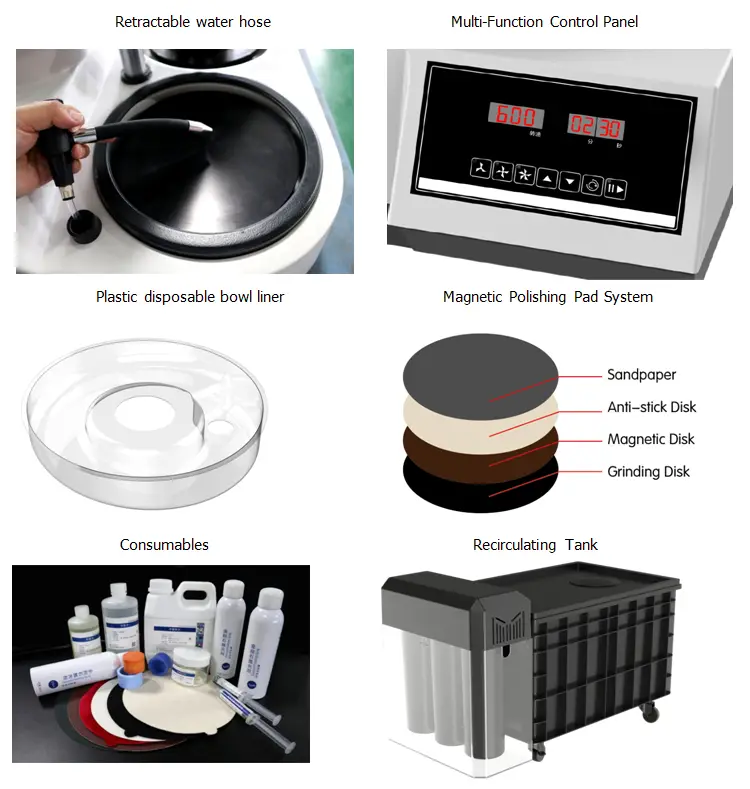

Product Feature
◆ Simple operation for grinding and polishing；
◆ Variable speed. It is determinable through a rotating switch and shown digitally on the display；
◆ CCW and CW direction control；
◆ The water hose with universal direction can be pulled out for cleaning the basin；
◆ Plastic disposable bowl liner for ease of cleaning；
◆ Hard anodized aluminum working wheel；
◆ Durable composite construction, antirust；
◆ Powder coated aluminum housing, durable and reliable.
Specification

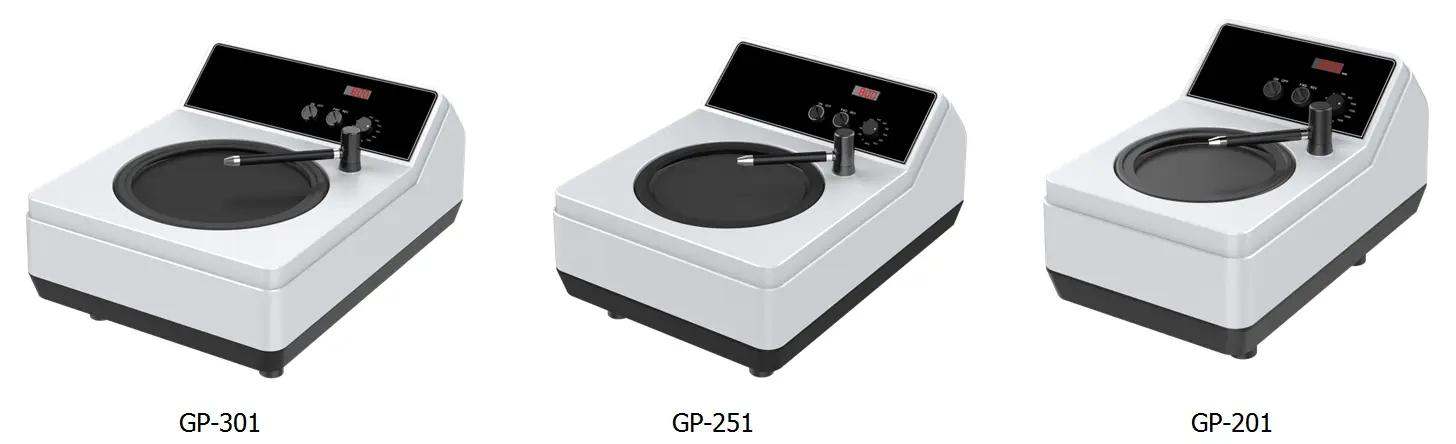

Description | GP-201 | GP-251 | GP-301 |
Wheel (mm) | Ø203 | ○Ø203●Ø254 | ○Ø203 ○Ø254 ●Ø305 |
Speed(rpm) | 100-1000 | 100-1000 | 100-1000 |
Motor | 500W | 600W | 600W |
Power | 110/220V | ||
Paper Ring | ● | ● | ● |
Splash guard | ● | ● | ● |
Cover | ● | ● | ● |
Grinding paper | ● | ● | ● |
Polishing Cloth | ● | ● | ● |
Diamond Spray | ○ | ○ | ○ |
Diamond Slurry | ○ | ○ | ○ |
Alumina Powder | ○ | ○ | ○ |
Recirculating Tank | ○ | ○ | ○ |
●Standard○Option
Details
Company Features
1. Sinowon Innovation Metrology Manufacture Limited. is globally competitive in the polishing equipment marketplace.
2. The company's products are widely used in many applications. The products are also very popular in overseas markets besides the domestic market. It is estimated that sales volume in overseas will continue to increase.
3. We conduct sustainable activities in our business operations. We believe that the impact of our actions on the environment will attract socially conscious consumers. Inquire! We are committed to meet or exceed the requirements of all applicable environmental, health, and safety legislation. So we set environmental objectives and targets each year based on the previous year’s results and trends, and spare no effort to achieve these targets.
Market position:
- We JS manufacture medium-to-high grade polished concrete equipment with reasonable price.
- JS polished concrete equipment occupy the market because they bring highest efficiency and save labor cost at the extreme,thanks to the premium raw materials the have.
Applications:
- When doing polished concrete job, for floor polishing as long as the floor is flat and without scratch, using together with polishing liquid, to get a very shining finish;
- With a size (17") polishing pad;
- Attached with vacuum motor, it can work without dust and unnecessary to connect another vacuum cleaner.
- For daily floor cleaning, polishing and maintenance as well, to have a highest efficiency.
Features:
- 2 in 1 polished concrete equipment, polishing and dust absorption
- A polished concrete equipment with 17” polishing pad.
- A polished concrete equipment with Siemens motor
- With a vacuum motor makes non dust when working and save labor cost a lot.
- Aluminium alloy gearbox , which is thicker than others in the market
- Famous brand HRB bearing
- Auto balance
- Driven by both gear and belt
- Wheel ajustable to different height
Standard configurations:
- Machine body of polished concrete equipment - 1ea
- 10m electric wire - 1ea
- tool kit - 1ea
- polishing pad - 1 ea
Specifications:
| Model | Working width | Discs | Pads | Speed | Power | Voltage | Net weight |
| JS-430A | 430mm | 1 | 17"x1 | variable 0-1800rpm | 5.5HP | 380V 3phase | 170kgs |
| JS-430B | 430mm | 1 | 17"x1 | variable 0-1800rpm | 5.5HP | 220V 3phase | 170kgs |
| JS-430C | 430mm | 1 | 17"x1 | variable 0-1800rpm | 5.5HP | 220V 1phase | 170kgs |
Others:
- Minimum order quantity:1set
- Lead time: around 7 days upon MOQ
- Minmum order quantity: 1 set
- Quantity discount: available
- OEM/ODM: available
- Quantity discount: avaialble
- Loading port and origin: Shanghai, China
Pictures:
- The color of JS-430 polished concrete equipment can be customized.
