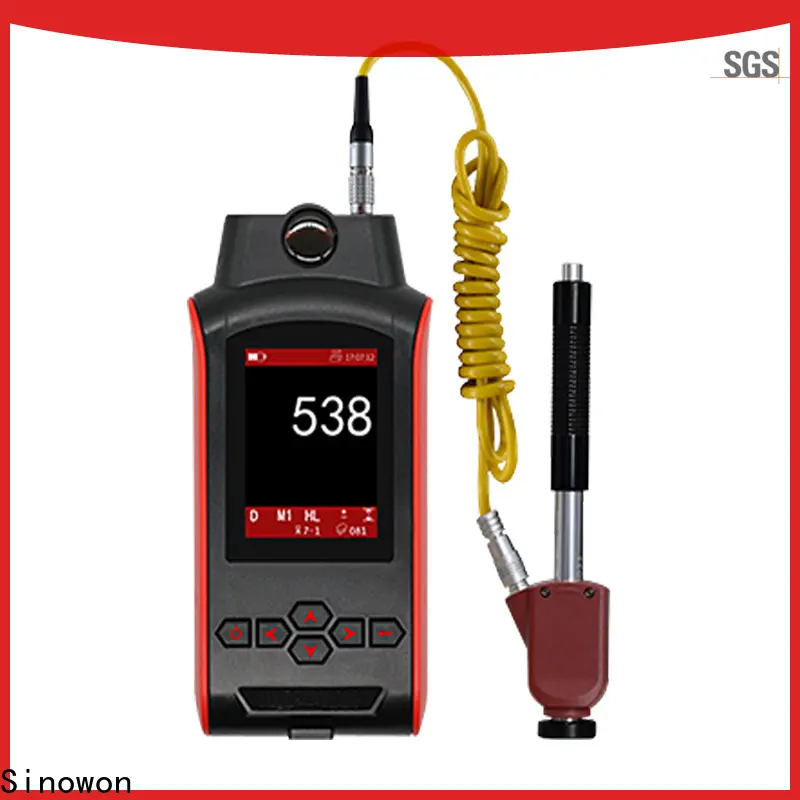

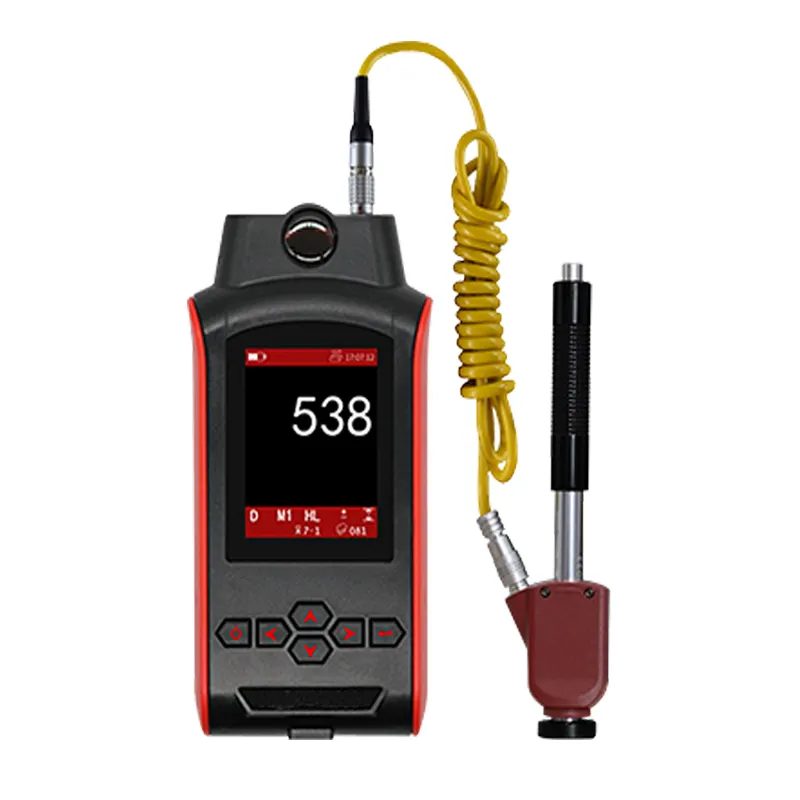

Sinowon portable brinell hardness tester personalized for precision industry

Model:
SH-660
Code#:
852-166
Accuracy:
±4HL/HRC0.2 (0.3% @ HL=800)
Warranty:
12 month
Delivery Time:
15-30days
Standard:
Conforming to ASTM A956, DIN 50156, GB/T 17394-1998
Certificate:
CE
Inquiry
Company Advantages
1. Sinowon equotip hardness tester is made of the finest materials and is subtly crafted by the proficient workers. The product is designed by professional designers to be user-friendly
2. People will find that this product can stand frequent cleaning and numerous times of wear and tear without fading or getting dirty. Its packing is made seriously to guarantee the safety during shipment
3. This product features water repellency. The state-of-the-art coating and seam will block condensation and rain to penetrate through to the interior. The product is well known for high accuracy and great stability
4. The product features the desired durability. Adopting high-performance electrical components and insulation materials, it is guaranteed to be reliable for a long time. The product performs well in program control and material use reduction
5. It resists tearing because it is well designed and constructed. The seams of this garment are strong and they will not pull apart easily. The product can be controlled in a motorized way, to eliminate errors caused by manual operation

Sinowon portable brinell hardness tester personalized for precision industry 3


Introduction


SH-660 is an innovation of Leeb hardness tester, which based on the new technology - dual-coil sensor inside probe. All probes worked with SH-660 are modularized digital probe, which gives more accurate hardness value. Besides, SH-660 can also work with our wireless probe and new RP reading probe as optional.


Product Feature


 Patent dual- coil technology

 All probe used with SH-660 are digital type

 Cost- effective with reading probe (optional)

 High repeatability accuracy: +/-4 HL (or 0.3% @HL800)

 High linear accuracy for any angles

 TFT color display

 Auto compensate error for different impact direction

 Powered by AA batter y or USB power supply

 The tester can be attrac ted to the work piece with magnetic base (optional)

 Statistics value can be calculated automatically

 Up to 10 kinds of menu language

 Data managing software on PC

 Power on/off automatically or manually


Specification


Product Name

Portable Leeb Hardness Tester

Model

SH-660

Code#

852-166

Principle

Leeb hardness   measurement

Accuracy   / Repeatability

±4HL/HRC0.2 (0.3% @ HL=800)

Display

High contrast   color TFT 240 x 320

Hardness   scale

HL/HRC/HRB/HB/HV/HS/HRA/σb

Measuring   range

HL170~960/ HRC1.3~74.7/ HRB1.2~139.7/ HB28~1027/ HV45~1221/ HS4.0~112.1/   HRA1.3~88.5/ MPa118~3315N/mm²

Probe

Digital probe D/C/DC/D+15/DL/E

Wireless probe   D/C/DC/D+15/DL/E (optional), Reading probe D (optional)

Materials and conversion curves

11 common metal   materials, 75 curves

Memory

999 data

Interface

USB / Bluetooth   (optional)

Statistics   function

Average / Max. /   Min. / S. value

Re-calibration

Allowed by user

Indicator

Low battery

Language

English, Chinese, Russian, Korean, French, Italian, German, Turkish,   Spanish

Power   on/off

Auto / Manual

Power   supply

AA alkaline   battery / USB power supply

Working   environment

-20oC~+70oC

Dimension   (mm)

145x70x30

Net   weight (g)

145g

Standards

Conforming to   ASTM A956, DIN 50156, GB/T 17394-1998
