Sinowon portable brinell hardness tester supplier for industry

Company Advantages
1. Different from common material, material for portable brinell hardness tester gains the absolute advantage in characteristics of portable rockwell hardness tester . The product is well known for high accuracy and great stability
2. The use of this product helps people reduce their working hours and helps relieve them from tiring works and heavy tasks. Its quality and accuracy are improved every year
3. We provide this functional and high performance product to meet the requirements of customers. It, up to the requirements from different industries, is widely applied

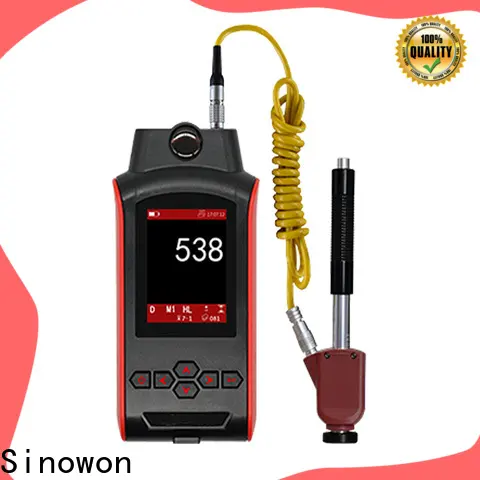

SH-660 is an innovation of Leeb hardness tester, which based on the new technology - dual-coil sensor inside probe. All probes worked with SH-660 are modularized digital probe, which gives more accurate hardness value. Besides, SH-660 can also work with our wireless probe and new RP reading probe as optional.

◆ Patent dual- coil technology

◆ All probe used with SH-660 are digital type

◆ Cost- effective with reading probe (optional)

◆ High repeatability accuracy: +/-4 HL (or 0.3% @HL800)

◆ High linear accuracy for any angles

◆ TFT color display

◆ Auto compensate error for different impact direction

◆ Powered by AA batter y or USB power supply

◆ The tester can be attrac ted to the work piece with magnetic base (optional)

◆ Statistics value can be calculated automatically

◆ Up to 10 kinds of menu language

◆ Data managing software on PC

◆ Power on/off automatically or manually

Product Name	Portable Leeb Hardness Tester
Model	SH-660
Code#	852-166
Principle	Leeb hardness   measurement
Accuracy   / Repeatability	±4HL/HRC0.2 (0.3% @ HL=800)
Display	High contrast   color TFT 240 x 320
Hardness   scale	HL/HRC/HRB/HB/HV/HS/HRA/σb
Measuring   range	HL170~960/ HRC1.3~74.7/ HRB1.2~139.7/ HB28~1027/ HV45~1221/ HS4.0~112.1/   HRA1.3~88.5/ MPa118~3315N/mm²
Probe	Digital probe D/C/DC/D+15/DL/E Wireless probe   D/C/DC/D+15/DL/E (optional), Reading probe D (optional)
Materials and conversion curves	11 common metal   materials, 75 curves
Memory	999 data
Interface	USB / Bluetooth   (optional)
Statistics   function	Average / Max. /   Min. / S. value
Re-calibration	Allowed by user
Indicator	Low battery
Language	English, Chinese, Russian, Korean, French, Italian, German, Turkish,   Spanish
Power   on/off	Auto / Manual
Power   supply	AA alkaline   battery / USB power supply
Working   environment	-20oC~+70oC
Dimension   (mm)	145x70x30
Net   weight (g)	145g
Standards	Conforming to   ASTM A956, DIN 50156, GB/T 17394-1998

Company Features
1. Sinowon Innovation Metrology Manufacture Limited. is an example for China portable brinell hardness tester producers trying to develop into renowned multinational brands. With a solid technical foundation, Sinowon Innovation Metrology Manufacture Limited. is able to produce high- quality portable hardness tester .
2. The quality of portable hardness complies with international standards.
3. Our company has a strong technical base. Our R&D team is skilled and experienced with abundant expertise. They help our company keep competitive in the market through continuous product innovation. We put both business success and environment protection as our priority. During production, we will seek quality yet more environmental-friendly materials so as to achieve sustainable development.
