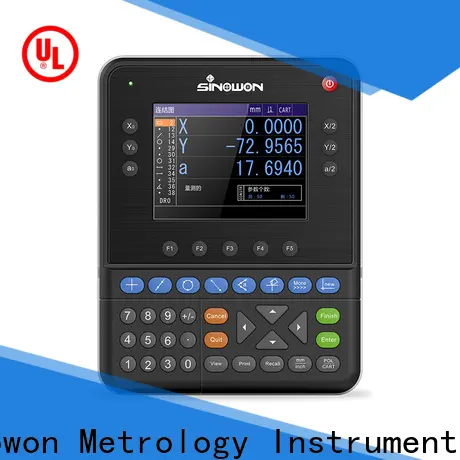

Sinowon professional digital readout display from China for nonferrous metals
1. Sinowon single axis digital readout is crafted by a team of highly skilled technicians. The product is verified by ISO9001:2015 to be quality ensured
2. After decades of puzzling efforts, Sinowon Innovation Metrology Manufacture Limited. has begun to take shape. The product is highly praised in many exhibitions such as Shanghai Electronica China Show
3. digital readout display is considered as the most promising single axis digital readout for digital linear measuring scale . The product can be controlled in a motorized way, to eliminate errors caused by manual operation
Product Feature
◆ 5.6〃Color Screen and Sealed silicone touch button,with full information, friendly operation, long using life;
◆ Save 100 permanent image elements, can set and save current date;
◆ Multi-function Measurement: Point, line, circle,angle, distance, rectangular, screw thread, ellipse, slot, rounding, preset,construction, and so on;
◆ Obverse or Opposite direction counting function,1/2 value, midpoint, permission function, Call function, REC(record)function,and Cycle measurement;
◆ Section and linear compensation are available for 3-axis, highly ensure measurement accuracy:
◆ Can connect foot switch,printer, optical edge detection and other multiple auxiliary measurement tools;
◆ With polar and coordinate system, and can display millimeter and inch, and can shift easily;
◆ With independent password permission function, to prevent the posibility of data deviation by wrong operation, it can also change the original setting by password permission;
◆ Support multiple language:Chinese, English and other language;
Technical Specification
| Model | DP400(#510-340) |
| Language | Simple Chinese, Complicated Chinese, Portuguese, German and English, etc. |
| LCD Screen Size | 115mm×85mm |
| LCD Screen Resolution | 640*480 |
| Digital Display Range | 8Digits(With Decimal Point) |
| Display Axis | 3-axis (X,Y,Z/Q) |
| Z/Q Display Model | Length or Angle |
| Angle Display Model | Degree, Minutes and Second or Degree |
| Linear Scale Signal | TTL square-wave or AC sine wave of two 90 ° phase angle difference, drive capacity larger than 10MA |
| Linear Scale Resolution | 0.1um,0.2um,0.5um, 1um,2um,5um |
| Baud Rate | 4800,9600,14400,19200,38400,57600 |
| Data Output Port | RS232，DB-9 Parent interface |
| Operation Keyboard | Sealed Silicone touch-type keyboard |
| Expansion port | Foot Switch, Printer, Optical Edge Finder, etc |
| Input Power Supply | AC90V-240V,15W |
| Operation Environment | Working Temperature： 0 ℃～40 ℃；Storage Temperature：-10 ℃～60℃；Relative Humidity：<90%RH |
Product Details
Company Features
1. Sinowon Innovation Metrology Manufacture Limited. serves as pioneer in the field of digital readout display by providing all kinds of products.
2. The technology we applied is at the forefront of the digital linear scale industry and provides a solid foundation for the company's future development.
3. Sinowon Innovation Metrology Manufacture Limited. aims to build the best brand of acurite readout in international market. Get price!
