A professional manufacturer of measuring & testing equipment.

Sinowon quality brinell hardness number manufacturer for cast iron 1
Sinowon quality brinell hardness number manufacturer for cast iron 2
Sinowon quality brinell hardness number manufacturer for cast iron 1
Sinowon quality brinell hardness number manufacturer for cast iron 2

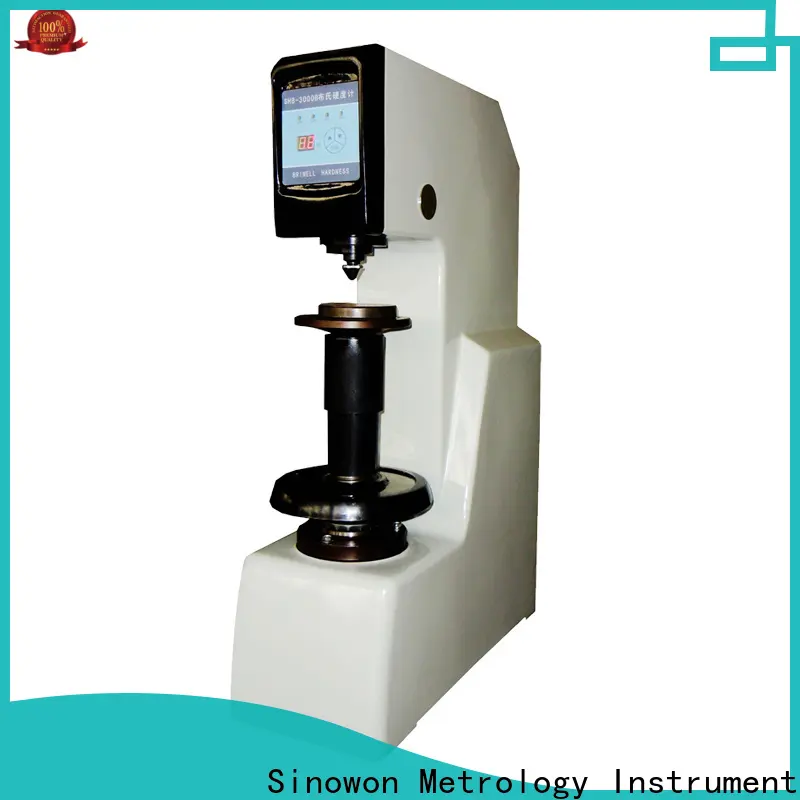

Sinowon quality brinell hardness number manufacturer for cast iron

Model:
SHB-3000B
Code#:
831-101
Accuracy:
≤±3.5%
Warranty:
12 month
Delivery Time:
15-30days
Standard:
GB/T231.2, JJG150, EN-ISO 6506 ASTM E10-12 JIS Z2243
Certificate:
CE
Inquiry
Company Advantages
1. The manufacturing processes of Sinowon king brinell hardness tester involve a range of aspects. They are pattern design, fabric sourcing, fabric spreading, cutting, cutting parts sorting, sewing, as well as quality inspection and testing. It is supported by multiple languages say English, Turkish, and German
2. Sinowon Innovation Metrology Manufacture Limited. has abundant material resources for brinell hardness number . It is well recognized by more than 5000 customers
3. This product has the required tensile. Passing tensile testing, it has been proved that it has an elongation at break, tear strength, and stitch tear strength. The product is CE certified for the European market
4. This product has good strength. It is made of heavy-duty welded metal, which makes contribution to the excellent hardness and provides strong impact resistance to fight against deformation. The product can be controlled in a motorized way, to eliminate errors caused by manual operation
5. The product causes no harm. During the production, only the low or no volatile organic compounds (VOCs) are used, and any formaldehyde is excluded. It has been marketed successfully for 12 years, thanks to the excellence in quality and technology

Sinowon quality brinell hardness number manufacturer for cast iron 3



Product Feature


 Electronic communication switch.

 Solid construction, good rigidity, precise, reliable, durable, high efficiency.

 High precision reading microscope measurement system.

◆ Widely used in quality control, strong adaptability to working environment.

 In line with GB/T231.2, ISO 6506-2 ,ASTM E10.



Application


Testing Brinell hardness of ferrous, non-ferrous metal and bearing alloy materials. Wide application range, especially used in precision measurement of parallel plane.  What’s more, measurement of curved surface is stable and reliable.



Specification



Name

Brinell Hardness Tester

Model

SHB-3000B

Code#

831-101

Loading ForceKgf

62.5Kgf, 100Kgf, 125Kgf, 187.5Kgf, 250Kgf,  500Kgf, 750Kgf, 1000Kgf, 1500Kgf, 3000Kgf

N

612.9N, 980N, 1226N, 1839N, 2452N, 4900N, 7355N, 9800N, 14700N, 29400N

Brinell Range(8-450) HBS,(8-650) HBW
Hardness DisplayCheck the table of Brinell Hardness scale
Microscope

Analogue 20x Microscope

Vertical Space

230mm

Horizontal Space

120mm

Dimension

700 x268 x842mm

Gross/Net Weight

240Kg/210Kg

Power Supply

AC 220V/110V±5%,50~60 Hz

Conform Standard

GB/T231.2, JJG150, EN-ISO 6506 ASTM E10-12  JIS Z2243

Accuracy

Hardness RangePermitted ErrorRepeatability
HBW≤ 125≤± 3.5%≤ 3.5%
125<HBW≤225≤± 2.5%≤ 3.0%
HBW> 225≤± 2.0%≤ 2.5%





Company Features
1. As a rapidly growing company, Sinowon Innovation Metrology Manufacture Limited. has grasped the market opportunity to grow into an expert in the manufacturing of brinell hardness number . All our technical staff are rich in experience for brinell hardness tester.
2. Sinowon Innovation Metrology Manufacture Limited. has successfully got several patents for technology.
3. Our brinell hardness testing machine is easily operated and need no additional tools. Sinowon Innovation Metrology Manufacture Limited.'s mission is to provide high an-performance and cost effective brinell hardness . Welcome to visit our factory!
