Sinowon quality metal hardness testing machine series for small parts 1
Sinowon quality metal hardness testing machine series for small parts 2
Sinowon quality metal hardness testing machine series for small parts 1
Sinowon quality metal hardness testing machine series for small parts 2

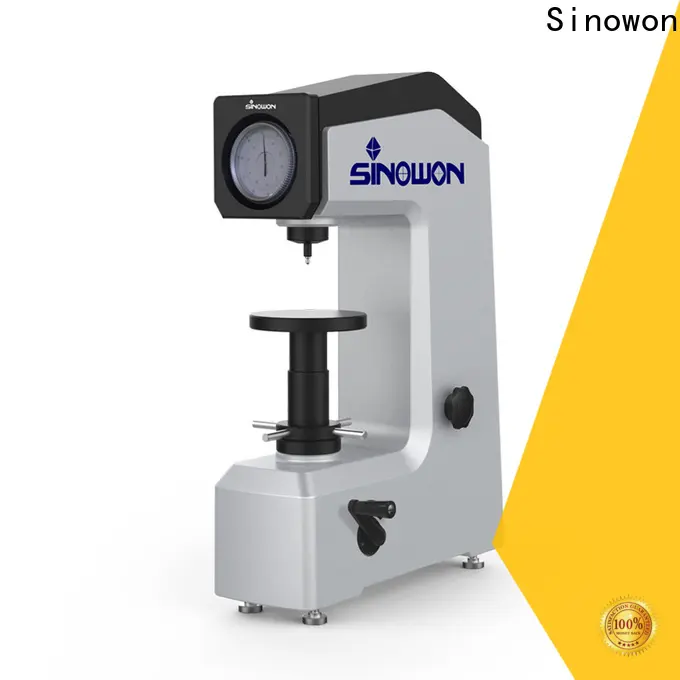

Sinowon quality metal hardness testing machine series for small parts

Model:
DigiRock HS1
Code#:
811-210
Warranty:
12 month
Delivery Time:
15-30days
Standard:
ISO 6508,ASTM E18,JIS Z2245,GB/T230
Certificate:
CE
Inquiry
Company Advantages
1. The quality control procedures of Sinowon [拓展关键词 starts from the receipt of raw material, over the precursor chemicals, up to the final cathode active material. The product is analyzed and tested cautiously before packing
2. Sinowon Innovation Metrology Manufacture Limited. can make sure that all metal hardness testing machine finished in advance can be stored in our warehouse for good condition. More than 10,000 pcs have been delivered and installed
3. The product features the desired rigidity. It can stand up a certain heavy workload while achieving sustained dynamic accuracy and repeatability. The product is designed by professional designers to be user-friendly
4. The product consumes little energy. It has the Energy Star label which is the mark of energy-saving certification, confirming that it will not consume too much energy. It is supported by multiple languages say English, Turkish, and German

Sinowon quality metal hardness testing machine series for small parts 3



Product Feature


 DigiRock HS1 analogue gauge resolution is 0.5HR, it is useful to improve the reading accuracy than traditional 1HR resolution;

 DigiRock HS1 force knob adopts the metal material to replace the plastic, it largely improves the instrument using-life ;

 DigiRock HS1 loading, dwell and unloading is buffering by oil pump,it eliminate the operator' s tiredness ;

 DigiRock HS1 intenter protector is available to improve the using lifetime of indenter.


Specification



Product NameManual Superficial Rockwell Hardness Tester
ModelDigiRock HS1
Code#811-210
Rockwell ScalesHR15N、HR30N、HR45N、HR15T、HR30T、HR45T
Preliminary Test Force3kgf(29.42N)
Addtional Test Fore15Kgf(147.1N),30Kgf(294.2N),45Kgf(441.3N)
Dwell TimeAdjustable 1-60s
Hardness IndicationAnalogue Display
Resolution0.5HR
Loading Control

Manual

Max. Height Of Specimen175mm
Instrument Throat165mm
Power supplyAC220V/50Hz;AC110V/60Hz
Dimension(LxWxH)546x182x755mm
Packing Dimension620x460x870mm
Gross/Net Weight120Kg/90Kg
Execution StandardISO 6508,ASTM E18,JIS Z2245,GB/T230


Application



Rockwell B Scale HRB: Copper alloys, soft steels, aluminum alloys, malleable iron, etc.

Rockwell C Scale HRC: Steel, hard cast irons, pearlitic malleable iron, titanium, deep case hardened steel, and other materials harder than B100.

Rockwell A Scale HRA: Cemented carbides, thin steel, and shallow case-hardened steel.




Company Features
1. By sticking to high quality, Sinowon Innovation Metrology Manufacture Limited. has become a reliable producer for metal hardness testing machine .
2. Sinowon is designed in our advanced design lab wilson hardness testers .
3. Relative service for hardness test will be provided by Sinowon Innovation Metrology Manufacture Limited.. Inquire!
