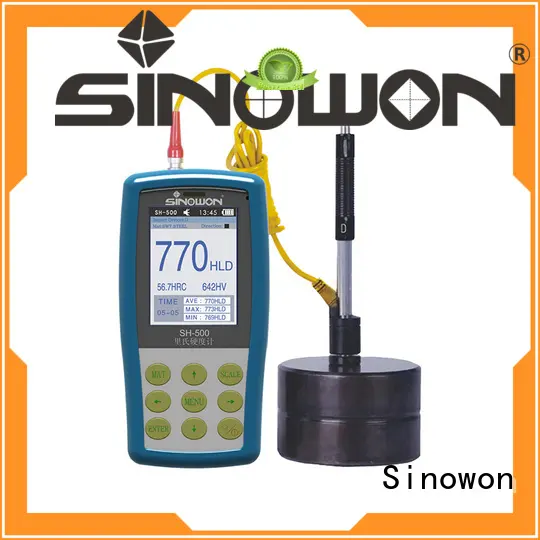

Sinowon quality portable hardness tester machine supplier for commercial
Model:
SH-500
Code#:
852-150
Accuracy:
≤3+L/200(um)
Warranty:
12 month
Delivery Time:
15-30days
Standard:
DIN 50156,ISO 18625,ASTM A956 , GB/T17394
Certificate:
CE
Application Scope
The vision measuring machine developed by Sinowon is widely used in Manufacturing Measurement & Analysis Instruments Electronic Measuring Instruments industry.Sinowon is able to meet customers' needs to the greatest extent by providing customers with one-stop and high-quality solutions.
1. Sinowon portable rockwell tester has been fully tested in many aspects. They are colorfastness, breathability, flammability, resistance to bacteria, durability, and harmful substances content.
2. The fabric of this product is known for strength and durability. It has a super soft weave and a subtle sheen with high-quality fiber.
3. This product is the best choice for warmth on a cold night. It is perfectly suitable for an adult or children's bedroom or guest room.
4. Sinowon Innovation Metrology Manufacture Limited. has achieve the optimal allocation of portable hardness tester machine resources in its business.
5. Sinowon Innovation Metrology Manufacture Limited. idea on portable hardness tester machine will revolutionize portable hardness tester and prove to be a worldwide hit.
Product Feature
◆ Metal shell, nice appearance design.
◆ Available to save 2000 groups test results.
◆ Support hardness conversion among HRC, HRA, HRB, HV, HB, etc, can convert 2 different scales simultaneously.
◆ 4” LCD to display hardness result, conversion results, Max, Min,Mean value;
◆ Support blue tooth printer, with RS232 to connect computer for software running;
◆ Can test all kinds of metal which more than 5kg;
◆ Indicating error ±5HLD, conform standard ASTM A956;
◆ Support 7 types of impact devices.
Application
◆ Die cavity of molds;
◆ Bearings and other parts;
◆ Failure analysis of pressure vessel, steam generator and other equipment;
◆ Heavy work piece;
◆ The installed machinery and permanently assembled parts;
◆ Testing surface of a small hollow space;
◆ Material identification in the warehouse of metallic materials;
◆ Rapid testing in large range and multi-measuring areas for large-scale work piece.
Specification
| Product Name | Portable Leeb Hardness Tester |
| Model | SH-500 |
| Code# | 852-150 |
| Measuring Range | (170-960)HLD,(17-68.5)HRC,(19-651)HB,(80-976)HV,(30-100)HS,(59-85)HRA(13 -100)HRB |
| Measuring Direction | 0~360° |
| Data Storage | maximum 2000 Groups test Results |
| Data-Output | RS232/Printer |
| Hardness Indication | 240x160 graphic dot color LCD display |
| Hardness Scale | HL、HBW、HRB、HRC、HRA、HV、HS |
| Shell Material | Metal |
| Indicating Error | HLD：±6 HRC：±1 HB：±4 |
| Language Option | Chinese, English, German, Portuguese, Turkish |
| Statistics | Average value, min-max ,upper-lower limits |
| Impact Device | D (standard) |
| Optional impact Devices | DC/D+15/DL/G/C/E |
| Work piece radius(convex/concave) | Rmin=50mm(with support ring Rmin=10mm) |
| Min. Workpiece weight | 2~5kg on stable support 0.05~2kg with compact coupling except C and G impact device |
| Workpiece min. thickness couple | 5mm, G:10mm,C:1mm |
| Workpiece min. case hardened depth | 0.08mm C: 0.2mm G:1.2mm |
| Power Supply | 4.2V |
| Operating Temperature | 0 ℃-40 ℃ |
| Dimension | 160x 80 x 31mm |
| Weight | 500g(Excluding impact device and printer) |
Standard Delivery:
| Standard Delivery | Code# |
| Instrument Main Body | 852-150 |
| Impact device type D | 852-410 |
| Hardness Block(750-830)HLD | 852-630 |
| Cleaning brush | 852-860 |
| SINOWON certificate | SH-500 |
| Recharger | 852-850 |
| Accessories Box | 852-900 |
| Instrument Manual | SH-500 |
Measuring Range / Materials:
| Material | HLD | HRB | HRC | HB | HV | HSD |
| Steel and cast steel | 300-900 | 38-100 | 20-68 | 81-654 | 81-955 | 32-100 |
| Cold work tool steel | 300-840 | — | 20-67 | — | 80-898 | — |
| Stainless steel | 300-800 | 46-101 | — | 85-655 | 85-802 | — |
| Grey cast iron | 360-650 | — | — | 93-334 | — | — |
| Nodular cast iron | 400-660 | — | — | 131-387 | — | — |
| Cast aluminum alloys | 170-570 | 23-84 | — | 19-164 | — | — |
| Brass | 200-550 | 13-95 | — | 40-173 | — | — |
| Bronze | 300-700 | — | — | 60-29 | — | — |
| Copper | 200-690 | — | — | 45-315 | — | — |
Company Features
1. Sinowon has been influencing portable hardness tester machine industry for years.
2. We have reliable manufacturing facilities. They get ongoing investments and continuously take in advanced machines. They offer the company state-of-the-art manufacturing capabilities.
3. We will endeavor to shoulder the glorious mission of portable hardness tester and make unremitting efforts to be a professional portable hardness tester machine manufacturer. Inquire! Our vision is portable hardness tester machine. Inquire! Consistently developing first-class portable hardness tester machine with our wisdom and power is our guiding policy. Inquire!
