Sinowon quality portable hardness tester manufacturer for small parts
1. Sinowon rockwell superficial hardness test is meticulously manufactured. Traditional methods of making, as well as innovation and experimentation with materials, cut and construction, are vital to its manufacturing process. More than 10,000 pcs have been delivered and installed
2. Sinowon Innovation Metrology Manufacture Limited. has advanced production technology and perfect quality control system. The product performs well in program control and material use reduction
3. This product is very soft. The chemical softener combines with the fiber to make the product smooth and soft. The quality is reliable and the service life is long
Product Feature

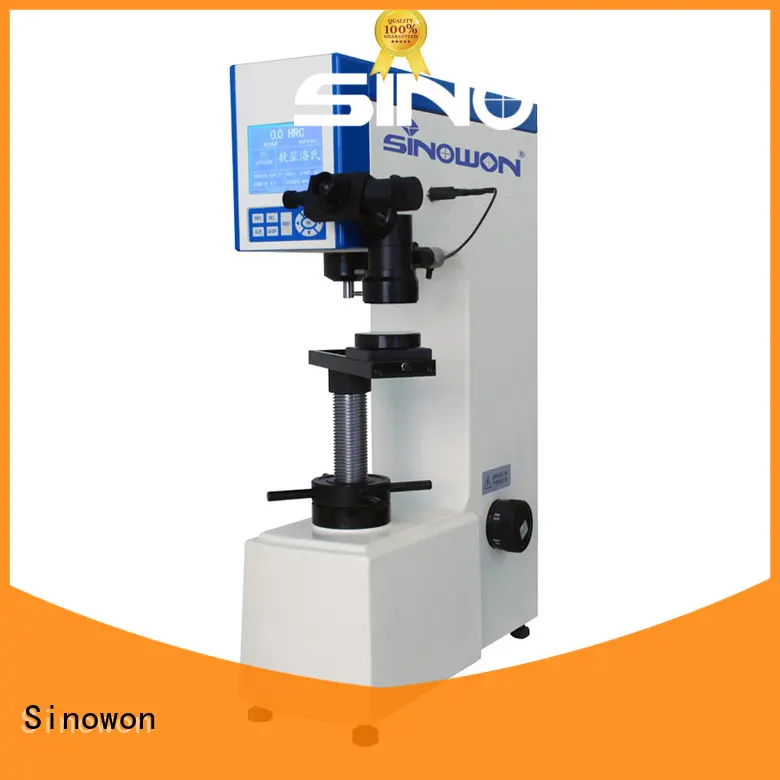

◆ Vexus SHR-187.5 is a universal hardness testing instrument for the measurement of Brinell, Rockwell and Vickers scale.
◆ Vexus SHR-187.5 equips 7-testing-foce and 5-indenter, it is universal to measure most of metal material.
◆ Vexus SHR-187.5 dwell time from 2 to 60S can be setup on LCD panel, it is much convenient than the setup on the manual hardness tester;
◆ Vexus SHR-187.5 loading ,dwell and unloading is driven by electronic motor automatically , doesn’t need the operator to handle it, it eliminates the human operating error maximum ;
◆ Vexus SHR-187.5 doesn’t need the operator to read and check the hardness scale table ,it will compute and display the testing result once press the key of digital length sensor.
Specification
| Product Name | Digital Universal Hardness Tester |
| Model | Vexus SHR-187.5D |
| Code# | 811-161 |
| Rockwell Scales | HRA, HRB, HRC |
| Rockwell Testing Force | 60Kgf(588.4N)、100Kgf(980.7N)、150Kgf(1471N) |
| Brinell Scales | HBW1/30、HBW2.5/62.5、HBW10/100、HBW2.5/187.5 |
| Brinell Testing Force | 31.25Kgf(306.5N)、62.5Kgf(612.9N、187.5Kgf(1839N) |
| Vickers Scales | HV 30、HV100 |
| Vickers Testing Force | 30Kgf(294.2N)、100Kgf(980.7N) |
| Rockwell Hardness Indication | Digital LCD display |
| Rockwell Resolution | 0.1HR |
| Loading Control | Automatic |
| Magnification of Microscope | Brinell:37.5x; Vickers:75x |
| Dwell Time | Adjustable 2~60s |
| Max. Height Of Specimen | Rockwell:170mm; Brinell, Vickers:140m |
| Instrument Throat | 165mm |
| Dimension(LxWxH) | 520 x215 x700mm |
| Packing Dimension | 630 x440 x960mm |
| Power supply | AC220V/50Hz;AC110V/60Hz |
| Gross/Net Weight | 120Kg/90Kg |
| Execution Standard | ISO 6508，ASTM E18，JIS Z2245，GB/T230 |
Application
Rockwell B Scale HRB: Copper alloys, soft steels, aluminum alloys, malleable iron, etc.
Rockwell C Scale HRC: Steel, hard cast irons, pearlitic malleable iron, titanium, deep case hardened steel, and other materials harder than B100.
Rockwell A Scale HRA: Cemented carbides, thin steel, and shallow case-hardened steel.
Company Features
1. Sinowon Innovation Metrology Manufacture Limited. has been engaged in rockwell superficial hardness test production for many years, and now it has become a leading Sinowon Innovation Metrology Manufacture Limited. production enterprise in China. The strength of Sinowon's technology is strong enough to guarantee the crafts of portable hardness tester .
2. Solid technical foundation makes Sinowon Innovation Metrology Manufacture Limited. stands out in the rockwell machine industry.
3. Sinowon Innovation Metrology Manufacture Limited. is technically famous for rockwell hardness conversion production. Protecting the environment and seeking sustainable development are our missions. We will make efficient use of natural resources and energy in all operations to reduce resource wastes.
