Sinowon quality portable hardness tester series for small parts
Model:
DigiRock DS3
Code#:
811-230
Warranty:
15-month
Delivery Time:
15-30 days
Standard:
GB/T230.2, EN-ISO 6508 , ASTM E-18
Certificate:
CE
Application Scope
As one of Sinowon's main products, hardness testing machines has wide applications. It is mainly used in the following aspects.Since the establishment, Sinowon has always been focusing on the R&D and production of vision measuring machine. With great production capability, we can provide customers with personalized solutions according to their needs.
1. portable hardness tester is produced by high-quality material exported from abroad.
2. The product has passed the international quality certification, assuring that it is of great quality.
3. The product conforms to the strict quality standard.
4. With its large growth prospect, this product has helped Sinowon won many long-term cooperation customers.
5. This product is hugely recommended by a large number of customers.
Product Feature
◆ Semi automatic hardness tester except loading initial force and change force knob. Operation is very convenient and fast.
◆ Color touch screen, displays loading force, indenter type, dwell time, and conversion scale.
◆ Built-in micro processor auto compute max, min, mean and deviation value, resolution is 0.1HR, largely improve accuracy.
◆ Auto hardness conversion to others scales, no need to check table and improve working efficiency.
◆ Support Multiple languages, English, Turkish, German, etc. Convenient for local customers operation.
◆ With 2000 single testing results and 1000 group results. Reviewing results and analysis.
◆ Optional bluetooth mini printer is available.
Specification

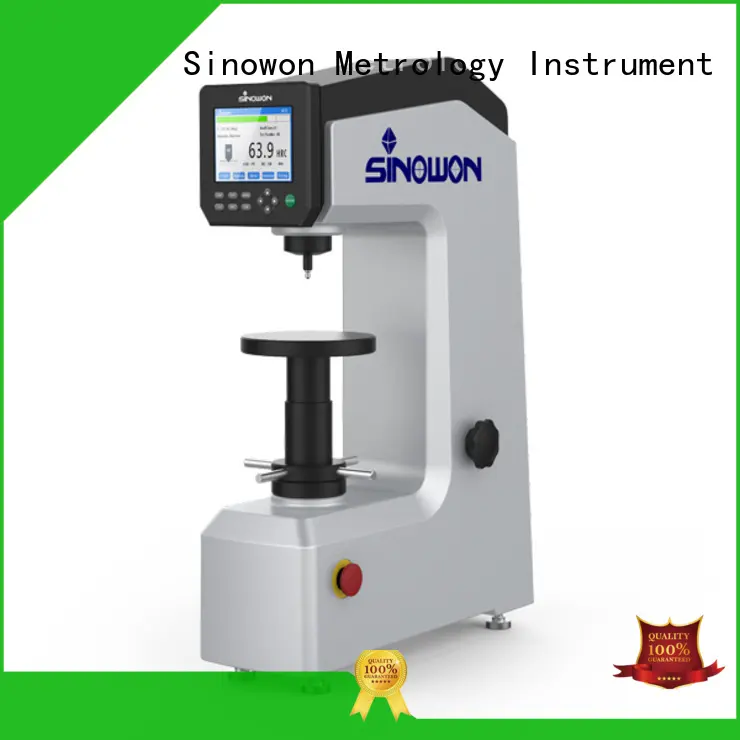

| Product Name | Digital Superficial Rockwell Hardness Tester |
| Model | DigiRock DS3 |
| Code# | 811-230 |
| Rockwell Scales | HR15N、HR30N、HR45N、HR15T、HR30T、HR45T |
| Preliminary Test Force | 3Kgf(29.42N) Permitted Error：±2.0% |
| Addtional Test Fore | 147.1N(15kg)、294.2N(30kg)、441.3N(45kg) Permitted Error:±1.0% |
| Dwell Time | Adjustable 1-60s |
| Hardness Indication | 5.2” Touch Screen, Resolution:640x480 |
| Resolution | 0.1HR |
| Loading Control | Auto Loading/Dwell/Unloading |
| Hardness Conversion | HRC、HV、HBS、HBW、HK、HRA、HRD、HRB |
| Conversion Standard | ASTM、DIN |
| Language Option | Chinese, English, German, Portuguese, Turkish, Czech, Korean |
| Correction Range | -3.0HR to +3.0HR, Step 0.1HR |
| Data Memory | 2000 Single Measuring Result, Curve Analysis, Results Reviewing And Analysis |
| Data Output | Optional Blue Tooth Mini Printer |
| Max. Height Of Specimen | 175mm |
| Instrument Throat | 165mm |
| Power supply | AC220V/50Hz;AC110V/60Hz |
| Dimension(LxWxH) | 546x182x755mm |
| Packing Dimension | 620x460x870mm |
| Gross/Net Weight | 120Kg/90Kg |
| Execution Standard | GB/T230.2, EN-ISO6508, ASTME-18 |
Application
Company Features
1. Sinowon Innovation Metrology Manufacture Limited. is dedicated into the portable hardness tester area for a long time and is highly acknowledged.
2. Sinowon Innovation Metrology Manufacture Limited. goes back to its research teams and crafts new products.
3. Sinowon Innovation Metrology Manufacture Limited. encourages employees to provide better service to customers. Inquire now! In the future, we Sinowon Innovation Metrology Manufacture Limited. will create more and more suitable rockwell hardness for customers. Inquire now!
