A professional manufacturer of measuring & testing equipment.

Sinowon quality tele brinell hardness tester for soft alloys 1
Sinowon quality tele brinell hardness tester for soft alloys 2
Sinowon quality tele brinell hardness tester for soft alloys 1
Sinowon quality tele brinell hardness tester for soft alloys 2

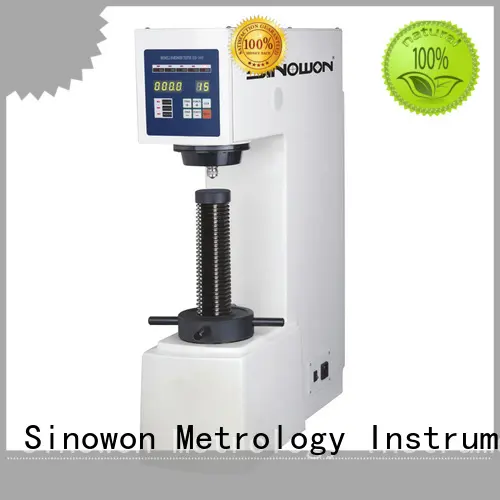

Sinowon quality tele brinell hardness tester for soft alloys

Model:
SHB-3000E
Code#:
831-111
Accuracy:
≤±3.5%
Warranty:
12 month
Delivery Time:
15-30days
Standard:
ISO 6506,ASTM E10 – 12,JIS Z2243,GB/T 231
Certificate:
CE
Inquiry
Product Details
optical measurement instruments's outstanding quality is shown in the details.Sinowon provides diversified choices for customers. optical measurement instruments is available in a wide range of types and styles, in good quality and in reasonable price.
  • Sinowon quality tele brinell hardness tester for soft alloys 3
Product Comparison
Good materials, advanced production technology, and fine manufacturing techniques are used in the production of vision measuring machine. It is of fine workmanship and good quality and is well sold in the domestic market.vision measuring machine's outstanding advantages are as follows.
  • Sinowon quality tele brinell hardness tester for soft alloys 4
    Sinowon quality tele brinell hardness tester for soft alloys 5
Company Advantages
1. Because of its tele brinell hardness tester design, brinell hardness test procedure is often preferred by costumers.
2. The product features a clean appearance. It is coated with a special layer to effectively prevent adhesion of dust or oil smoke when being placed.
3. The product can work with high accuracy. Its distinguished self-diagnostic feature can make sure that every motion is of high accuracy.
4. This product is extensively demanded in the market with huge growth prospects.
5. It can be provided in various sizes and color depending on the customer’s requirements.

Sinowon quality tele brinell hardness tester for soft alloys 6



Product Feature


 SHB-3000E adopts the load cell to replace the traditional weight, this innovative design makes the instrument more accurate;

 SHB-3000E selection of testing force and dwell time is controlled and monitored on the front panel, it is automatic during the process of loading, dwell and unloading;

 SHB-3000E uses 20x Brinell measuring microscope to measure the diameter of indentation, then the operator traces the Brinell hardness table to get the testing result.



Specification



Name

Electronic Brinell Hardness Tester

Model

SHB-3000E

Code#

861-111

Loading ForceKgf

62.5Kgf, 100Kgf, 125Kgf, 187.5Kgf, 250Kgf,  500Kgf, 750Kgf, 1000Kgf, 1500Kgf, 3000Kgf

N

612.9N, 980N, 1226N, 1839N, 2452N, 4900N, 7355N, 9800N, 14700N, 29400N

Brinell Range(8-450) HBS,(8-650) HBW
Hardness DisplayCheck the Table of Brinell Hardness Scale
Magnification of Microscope

Analogue 20x Microscope

Vertical Space

225mm

Horizontal Space

135mm

Dimension

893 x720 x747mm

Gross/Net Weight

160Kg/130Kg

Power Supply

AC220V/50Hz;110V/60Hz

Conform Standard

ISO 6506,ASTM E10 – 12,JIS Z2243,GB/T 231

Accuracy

Hardness RangePermitted ErrorRepeatability
HBW≤ 125≤± 3.5%≤ 3.5%
125<HBW≤225≤± 2.5%≤ 3.0%
HBW> 225≤± 2.0%≤ 2.5%





Company Features
1. Sinowon Innovation Metrology Manufacture Limited. has a large factory to mass manufacture brinell hardness test procedure .
2. Sinowon Innovation Metrology Manufacture Limited. has mature production technology and perfect quality guarantee system.
3. Sinowon Innovation Metrology Manufacture Limited. is striving to become a world-class manufacturer of brinell hardness tester. Inquiry! Taking tele brinell hardness tester into account is one of the focuses of Sinowon Metrology Instrument. Inquiry!
Contact us
we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
