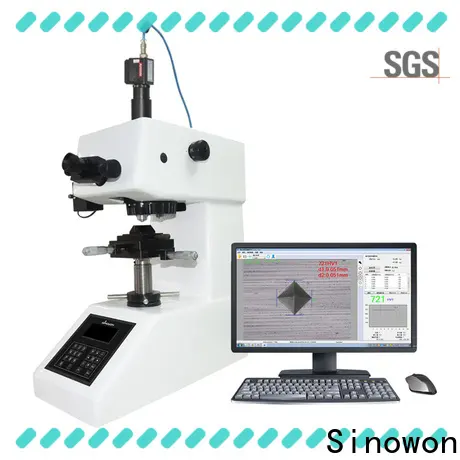

Sinowon quality universal hardness testing machine from China for thin materials

Company Advantages
1. The design of Sinowon micro vickers hardness tester mitutoyo price involves four major parts, namely, micro-filtration membrane, compressed carbon, ultrafiltration membrane, and filter life indicator, which are all indispensable parts in water treatment. A quality control system is implemented for the product
2. The product has been verified by the third-party authorities that it can eliminate and remove the pesticide and chemical residues. The product is analyzed and tested cautiously before packing
3. This product is able to withstand years of uses. Its sturdy frame will not easily deform over the years and will not be vulnerable to warping or peeling. The quality is reliable and the service life is long

◆ It adopts die-cast body, stability is much higher than in the mechanical performance of sheet metal welding machines;

◆ The dot positioning uses a three-point position to be more precise, and the repeated dot position is not skewing.

◆ It is equipped with 10X and 40X HD lens and HD USB camera, excellent image quality in optical imaging systems and video measurements;

◆ The operation interface adopts the humanized format, the digital area and the function distinguish the column type, the menu function is classified clearly and meticulously, and the light brightness, the menu selection and the objective lens selection all have the memory function.

◆ The powerful video measurement software iVicky V2.0 can convert the measured Rockwell hardness into Brinell Hardness HBW and Rockwell hardness HRC, HRA, HRB, and can also generate hardness gradient curve. Output WORD format measurement report.

◆ Measurement through the measuring software eliminates the operator's measurement error with visual optical readings, and effectively guarantees the authenticity and accuracy of Vickers hardness measurement results.

◆ Testing very thin materials like foils, thin pieces, coatings layers, etc;

◆ Measuring hardness of the surface of a part, small parts or small areas;

◆ Measuring individual micro-structures;

◆ Measuring the depth of case hardening by sectioning a part and making a series of indentations to describe a profile of the change in hardness.

Product Name		Micro Hardness Tester with Measurement Software		Auto-Turret Micro Hardness Tester with Measurement Software
Model		MV-1000PC		MV-1000AC
Code#		823-101MV		823-101AC
Test Force	N	0.098、0.246、0.49、0.98、1.96、2.94、4.90、9.80
	gf	10、25、50、100、200、300、500、1000
Indentation Measurement		iVicky V2.0 Measuring Software
Switch of Objectives and Indenter		Manual
Loading Control		Auto Loading, Dwell and Unloading
Magnification of Objective		Observation：10x；Measurement：40x
Eyepiece		10x Eyepiece
Dwell Time		5-60s
Measuring Range		1HV-3000HV
X-Y Anvil		Size: 100X100mm; Travel:25mm X 25mm;Resolution: 0.25um
Video Measuring System		USB Camera, 1X Camera Adapter, Micro Measuring Software iVicky V2.0
Maximum Height and Width of Specimen		Maximum Height: 70mm; Maximum Width:95mm
Power supply		AC220/50Hz; AC110V/60Hz
Dimension		530X290X490mm
Gross/Net Weight		50kg/40Kg
Execution Standard		ISO 6507，ASTM E92，JIS Z2244，GB/T4340

Company Features
1. With years of profound knowledge and experience of micro vickers hardness tester mitutoyo price , Sinowon Innovation Metrology Manufacture Limited. is situated in the front row in the domestic market. In the future, Sinowon Innovation Metrology Manufacture Limited. will continue to offer fabulous products and professional designs.
2. Sinowon Innovation Metrology Manufacture Limited. has successfully optimized universal hardness testing machine product development.
3. The factory is situated in a place where has industrial clusters. The industrial clusters encourage industrial cooperation between companies, which helps the factory reduce costs in sourcing raw materials or distributing parts to be re-processed. Since its inception, Sinowon Metrology Instrument has focused on market demand and continuously upgraded and improved its products. Contact us!
