Sinowon rockwell hardness chart directly sale for thin materials
Model:
DigiRock SR2
Code#:
811-310
Warranty:
12 month
Delivery Time:
15-30days
Standard:
GB/T230.2, JIS Z2245, EN-ISO 6508 , ASTM E-18
Certificate:
CE
Company Advantages
1. The outline of rockwell hardness chart deserves same attention as material in Sinowon Innovation Metrology Manufacture Limited.. It is up to both domestic and international standards
2. In order to meet the requirements of clients, Sinowon has been satisfying them with high quality rockwell hardness chart . Its packing is made seriously to guarantee the safety during shipment
3. With the extraordinary quality, it can attract the attention of most customers. It is well recognized by more than 5000 customers
Company Features
1. Sinowon Innovation Metrology Manufacture Limited. has been focused on rockwell hardness chart design, construction and service for decades.
2. Sinowon Innovation Metrology Manufacture Limited. owns greatly influential technical methods to improve the quality of rockwell hardness conversion .
3. Based on the tenet of hardness tester price , Sinowon strives hard to achieve the goal of rockwell hardness tester calibration . Please contact us!
1. The outline of rockwell hardness chart deserves same attention as material in Sinowon Innovation Metrology Manufacture Limited.. It is up to both domestic and international standards
2. In order to meet the requirements of clients, Sinowon has been satisfying them with high quality rockwell hardness chart . Its packing is made seriously to guarantee the safety during shipment
3. With the extraordinary quality, it can attract the attention of most customers. It is well recognized by more than 5000 customers

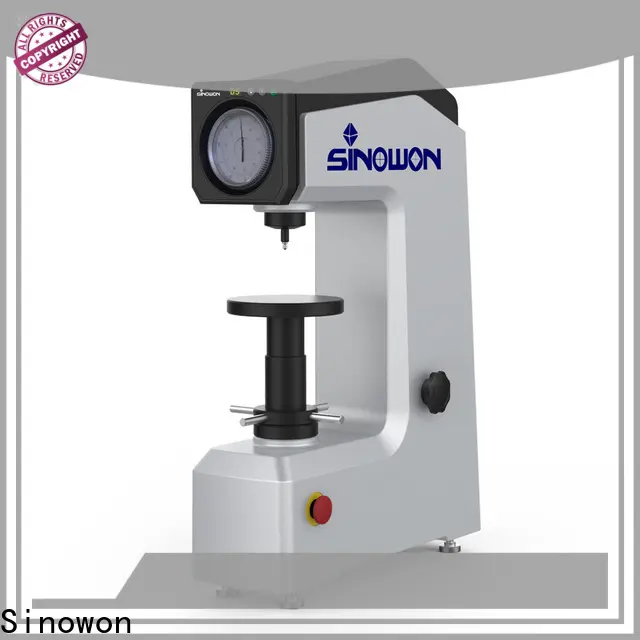

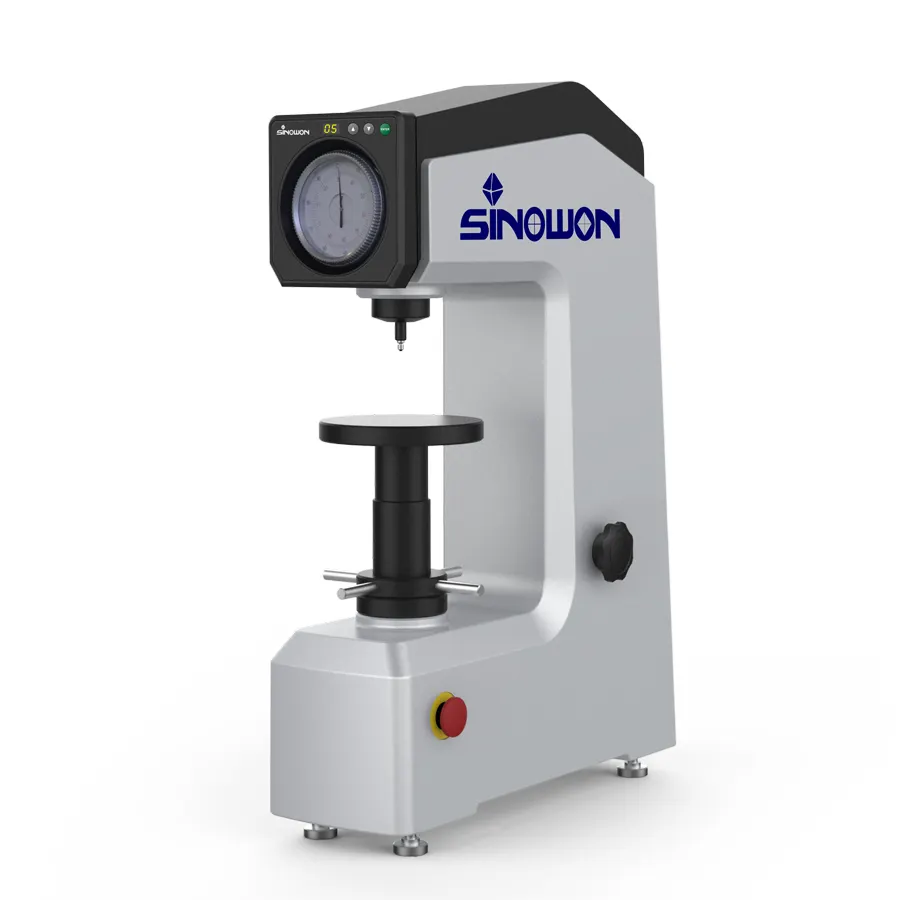

Product Feature
◆ DigiRock SR2 can test both Rockwell and Superficial Rockwell hardness scales.
◆ Manually switch 3kgf and 10kgf initial force, to test rockwell and superficial rockwell scales.
◆ Dial reading, resolution is 0.5HR.
◆ Motorized loading/dwelling/unloading to make precision force and excellent results.
Specification
| Product Name | Electronic Twin Rockwell Hardness Tester |
| Model | DigiRock SR2 |
| Code# | 811-310 |
| Rockwell Scales | HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRH, HRK,HRL, HRM, HRP, HRR, HRS, HRV |
| Rockwell Force | 60kgf(588.4N)、100Kgf(980.7N)、150kgf(1471N) |
| Superficial Rockwell Scales | HR15N、HR30N、HR45N、HR15T、HR30T、HR45T HR15W、HR30W、HR45W、HR15X、HR30X、HR45X、HR15Y、HR30Y、HR45Y |
| Superficial Rockwell Force | 15Kgf(147.1N),30Kgf(294.3N),45Kgf(441.3N) |
| Dwell Time | Adjustable 2-60s |
| Reading | Dial Reading |
| Resolution | 0.5HR |
| Loading Control | Motorized loading/dwelling/unloading |
| Max. Height Of Specimen | 175mm |
| Instrument Throat | 165mm |
| Power supply | AC220V/50Hz;AC110V/60Hz |
| Dimension(LxWxH) | 546x182x755mm |
| Packing Dimension | 620x460x870mm |
| Gross/Net Weight | 120Kg/90Kg |
| Execution Standard | GB/T230.2, JIS Z2245, EN-ISO 6508 , ASTM E-18 |
Application
Rockwell B Scale HRB: Copper alloys, soft steels, aluminum alloys, malleable iron, etc.
Rockwell C Scale HRC: Steel, hard cast irons, pearlitic malleable iron, titanium, deep case hardened steel, and other materials harder than B100.
Rockwell A Scale HRA: Cemented carbides, thin steel, and shallow case-hardened steel.
Company Features
1. Sinowon Innovation Metrology Manufacture Limited. has been focused on rockwell hardness chart design, construction and service for decades.
2. Sinowon Innovation Metrology Manufacture Limited. owns greatly influential technical methods to improve the quality of rockwell hardness conversion .
3. Based on the tenet of hardness tester price , Sinowon strives hard to achieve the goal of rockwell hardness tester calibration . Please contact us!
