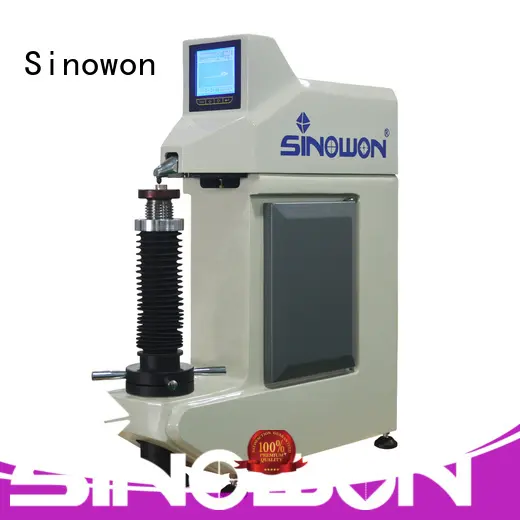

Sinowon rockwell hardness examples series for thin materials

Model:
SHR-150N/SHR-45N/SHR-145N
Code#:
811-308
Warranty:
15-month
Delivery Time:
15-30 days
Standard:
GB/T230.2, EN-ISO 6508 , ASTM E-18
Certificate:
CE
Inquiry
Company Advantages
1. The fabrics of Sinowon application of rockwell hardness test has passed through the stretch test and it is proven to be qualified for proper elasticity. The product is verified by ISO9001:2015 to be quality ensured
2. One of our customers says: 'The product is absolutely fantastic! I keep walking into my bathroom just to look at it as it is amazingly aesthetic.' The product is designed by professional designers to be user-friendly
3. The outstanding team upholds a customer-oriented attitude to provide the high quality product. It, up to the requirements from different industries, is widely applied
4. The product has high performance up to the industry advanced level. The Gost certificate has been obtained for the Russian market
5. Its unnecessary features are reduced to make it more professional. Its packing is made seriously to guarantee the safety during shipment

Sinowon rockwell hardness examples series for thin materials 3



Product Feature

 Twin tester--Regular Rockwell & Rockwell Superficial hardness for metal and plastic material;

 Horizontal Convex noise design,  which is suitable for internal and external testing;.

 Testing on surfaces difficult to reach. Testing internal surface of rings and tubes with diameters over 23mm;

 Testing force is set automatically according to testing scale;

 Provided with many features such as high measuring precision, wide measuring range with 30 Rockwell scales;

 Measuring results digitally displaying and can be printed, or transmitted to external computer automatically by USB or RS-232 data output port;

 Test value can be transformed to the value of HB, HV, HK and σb value;

 The tester meeting all the following standard such as ISO 6508, ASTM E18.

Specification

Commodity

Digtial Rockwell

Hardness Tester

Digital Superficial Rockwell

 Hardness Tester

Digital Twin Rockwell

Hardness Tester

Model SHR-150NSHR-45N SHR-145N
Code #811-308811-318811-328


Total test force

60Kgf(588.4N)

100Kgf(980.7N)

150Kgf(1471N)

15Kgf(147.1N)

30Kgf(294.3N)

45Kgf(441.3N)

15Kgf(147.1N),   30Kgf(294.3N),

45Kgf(441.3N);   60Kgf(588.4N),

100Kgf(980.7N),150Kgf(1471N)

Rockwell ScaleSHR-150N: HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRH, HRK,HRL, HRM, HRP, HRR, HRS, HRV
Superficial Rockwell ScaleSHR-45N: HR15N,HR30N,HR45N,HR15T,HR30T,HR45T
Twin Rockwell Scales

SHR-145N:HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRH, HRK,HRL, HRM, HRP, HRR, HRS, HRV;

15T,30T,45T;15Y,30Y,45Y; 15N,30N,45N

Dwell Time2-60s adjustable
Hardness IndicationHigh definition backlight LCD
Resolution0.1HR
Data-OutputRS-232
Conversion ScaleHV、HBS、HBW、HK
Loading ControlAuto Loading/Dwell/Unloading
Max. Height of Specimen 260mm
Throat150mm
Power SupplyAC 220V/50Hz;AC110V/60Hz
Dimension 710 x210 x830mm
Packing Dimension820x520x1000mm
Net Weight /Gross125Kg/95Kg
Execution standardGB/T230.2, EN-ISO 6508 , ASTM E-18
