Sinowon rockwell hardness of steel series for small parts

Model:
DigiRock BRV3
Code#:
811-160
Warranty:
12 month
Delivery Time:
15-30days
Standard:
ISO 6508,ASTM E18,JIS Z2245,GB/T230
Certificate:
CE
Inquiry
Company Advantages
1. The design of Sinowon rockwell hardness of steel follows the latest trends. Many international famous manufacturers choose this product for its premium quality
2. Reasonable prices from Sinowon Innovation Metrology Manufacture Limited. will add to your advantage in competition. The product is well known for high accuracy and great stability
3. The product needs little effort. It is designed under the user-friendly concept which aims to finish the pool cleaning work with the least amount of labor. The product is verified by ISO9001:2015 to be quality ensured

Sinowon rockwell hardness of steel series for small parts 3



Product Feature

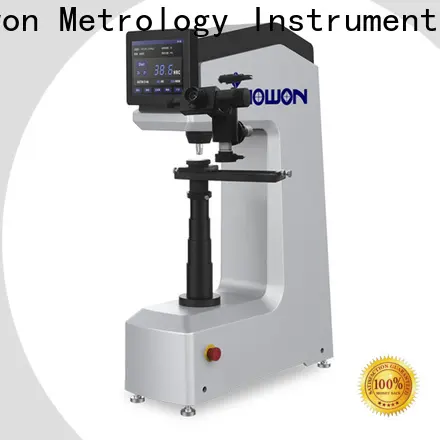

 DigiRock BRV3 is a universal hardness testing instrument for the measurement of Brinell, Rockwell and Vickers scale.

 DigiRock BRV3 equips 7-testing-foce and 5-indenter, it is universal to measure most of metal material.

 DigiRock BRV3 dwell time from 2 to 60S can be setup on LCD panel, it is much convenient than the setup on the manual hardness tester;

◆ DigiRock BRV3  loading ,dwell and unloading is driven by electronic motor automatically , doesn’t need the operator to handle it, it eliminates the human operating error maximum ;

◆ DigiRock BRV3 doesn’t need the operator to read and check the hardness scale table ,it will compute and display the testing result once press the key of digital length sensor.



Specification



Product NameDigital Universal Hardness Tester
ModelDigiRock BRV3
Code#811-160
Rockwell ScalesHRA, HRB, HRC
Rockwell Testing Force60Kgf(588.4N)、100Kgf(980.7N)、150Kgf(1471N)
Brinell ScalesHBW1/30、HBW2.5/62.5、HBW10/100、HBW2.5/187.5
Brinell Testing Force31.25Kgf(306.5N)、62.5Kgf(612.9N、187.5Kgf(1839N)
Vickers ScalesHV 30、HV100
Vickers Testing Force30Kgf(294.2N)、100Kgf(980.7N)
Rockwell Hardness Indication

Digital LCD display

Rockwell Resolution0.1HR
Loading ControlAutomatic
Magnification of MicroscopeBrinell:50x; Vickers:100x
Dwell TimeAdjustable 2~60s
Max. Height Of Specimen

Rockwell:280mm; Brinell, Vickers:140m

Instrument Throat170mm
Dimension(LxWxH)620x210x900mm
Packing Dimension735x525x1025mm
Power supplyAC220V/50Hz;AC110V/60Hz
Gross/Net Weight140Kg/125Kg
Execution StandardISO 6508,ASTM E18,JIS Z2245,GB/T230


Application




Rockwell B Scale HRB: Copper alloys, soft steels, aluminum alloys, malleable iron, etc.

Rockwell C Scale HRC: Steel, hard cast irons, pearlitic malleable iron, titanium, deep case hardened steel, and other materials harder than B100.

Rockwell A Scale HRA: Cemented carbides, thin steel, and shallow case-hardened steel.
