Sinowon rockwell testing machine from China for thin materials

Company Advantages
1. The quality inspection of Sinowon rockwell testing machine is strictly conducted. The performance of this product in terms of smoothness, splicing trace, cracks, and anti-fouling ability have been checked before delivery. Its packing is made seriously to guarantee the safety during shipment
2. Sinowon Innovation Metrology Manufacture Limited.'s technical security and R&D capabilities are first class in the industry. It is easy to operate, with fast speed
3. It can be easily mounted. It is designed with careful integration with adjacent elements such as other wall claddings, roofs, and base of wall details. It is supported by multiple languages say English, Turkish, and German
4. The product is less vulnerable to chipping and cracking. During the production stage, it has been fired to a certain hardness level. The Gost certificate has been obtained for the Russian market
5. This garment has good durability. The adopted fine yarn is tightly bound, which makes the resulting fabric and garment stronger and more durable. The product performs well in program control and material use reduction

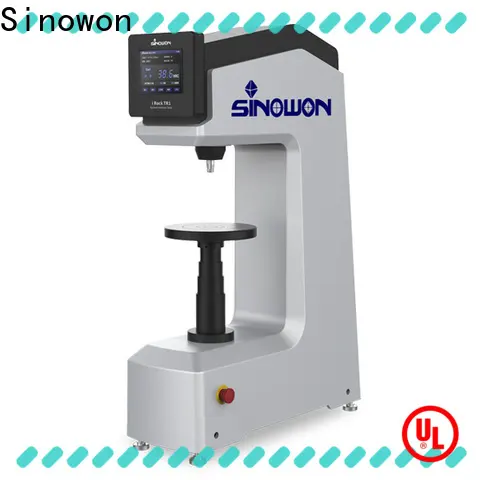

◆ A kind of Full-auto Intelligent Digital Rockwell Hardness Tester, available to test Rockwell and Superficial Rockwell hardness automatically.

◆One-key operation, auto lifting, auto load-change, auto loading/dwell/unloading,auto conversion, auto testing.

◆ Equipped with friendly operation interface, 5.2“ color touch screen directly display test force, dwell time, conversion value, indenter type, etc.

◆ Auto calculating and displaying test result, Max, Min, Ave, and hardness deviation. Resolution is 0.1HR.

◆ Available to set up upper and lower limit, with the function of over-error warning, data analysis chart, single test and group test.

◆ With software compensation function, available to compensate ±3HR, need not mechanical adjustment.

◆ With function of auto conversion according to ASTM E140, without checking hardness contrast table.

◆ Available to switch languages.: Chinese、English、German、Portuguese、Turkish、Czech、Korean.

◆ Available to save 2000 single test results and 1000 group test results. Can realize data viewing and analysis

◆ With optional wireless Bluetooth printer, there is no need to record results and report by hand.

◆ With optional data analysis software and Bluetooth receiver to input and analyze data.

◆ Support FexQMS data analysis and control software, improve integral control and decrease material consumption.

Product Name	Automatic Rockwell Hardness Tester	Automatic Superficial Rockwell  Hardness Tester	Automatic Twin Rockwell  Hardness Tester
Model	iRock-DR1	iRock-SR1	iRock-TR1
Code #	811-330	811-340	811-350
Preliminary Test Force	10Kgf(98.1N)	3Kgf(29.4N)	3Kgf(29.4N);10Kgf(98.1N)
Total Test Force	60Kgf(588.4N), 100Kgf(980.7N), 150Kgf(1471N)	15Kgf(147.1N), 30Kgf (294.3N), 45Kgf(441.3N)	15Kgf(147.1N)     30Kgf(294.3N), 45Kgf(441.3N);    60Kgf(588.4N), 100Kgf(980.7N), 150Kgf(1471N)
Rockwell Scale	DR1: HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRH, HRK,HRL, HRM, HRP, HRR, HRS, HRV
Superficial Rockwell Scale	DS1: HR15N,HR30N,HR45N; HR15T,HR30T,HR45T; HR15X,HR30X,HR45X;HR15Y,HR30Y,HR45Y
Full Rockwell Scale	TR1: HRA, HRB, HRC, HRD, HRE, HRF, ;15T,30T,45T;15T,30T,45T; 15N,30N,45N, etc
Dwell Time	1-60s adjustable
Display Screen	5.2 ”Color touch screen; Resolution：640*480
Resolution	0.1HR
Loading  Mode	Auto loading/dwell/unloading
Conversion Scale	HV、HBS、HBW、HK
Conversion Standard	ASTM,DIN
Language	Chinese、English、German、Portuguese、Turkish、Czech、Korean
Software Correction	-3.0HR ~ +3.0HR, step value 0.1HR
Data Processing	2000 group single dat, line chart of group data function;  respectively provide single data viewing and group data viewing
Print	Optional Bluetooth Printer
Max. Height of Specimen	240mm
Throat	170mm
Power Supply	AC 220V/50Hz; AC110V/60Hz
Dimension	615 x 225x 885mm
Packing Dimension	670×440×1000mm
Net Weight /Gross	125Kg/140Kg
Execution standard	GB/T230.2, EN-ISO 6508, ASTM E-18

Company Features
1. Sinowon Innovation Metrology Manufacture Limited. takes pride in its powerful manufacture capability. Our production capacity occupies steadily in the forefront of the rockwell testing machine industry.
2. All our rockwell hardness chart have conducted strict tests.
3. Sinowon Innovation Metrology Manufacture Limited. owns a professional team of technicians to keep improving our superficial hardness tester. We are finding ways to reduce the company's impact on the environment and embed sustainability throughout our businesses. We achieve these from the efficiency of our buildings to our progress in managing energy, water, and production waste.
