Sinowon saroj hardness tester series for measuring

Company Advantages
1. Sinowon rockwell hardness tester calibration has an attractive design. It is designed by our designers who are committed to innovative packaging and print design. Its packing is made seriously to guarantee the safety during shipment
2. Using the latest technology, saroj hardness tester is the most popular in the market. The product is designed by professional designers to be user-friendly
3. The creation of Sinowon rockwell hardness tester calibration has adopted many high-tech, mainly electronic information technology, automatic control technology, and micro-technology. A quality control system is implemented for the product
4. The product can run continuously for a long time. It is developed with cutting-edge technology which makes it run stably all the time without failure. The product is CE certified for the European market
5. It is not affected by the acid condition. It has passed the copper accelerated acetic acid salt spray (CASS) test which aims to check the coated one for corrosion resistance. The product is highly praised in many exhibitions such as Shanghai Electronica China Show

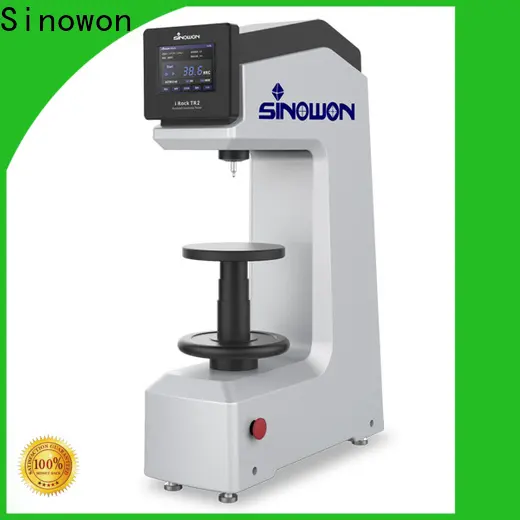

◆ Semi-automatic intelligent Digital Rockwell Hardness tester, you can automatically test the Rockwell hardness and surface Rockwell hardness measurement；

◆ Automatic variable load, automatic loading, automatic unloading, automatic conversion, automatic measurement；

◆ Friendly human-computer interaction，5.2“colorful LCD screen direct display test force,loading time,conversion value and indenter type etc；

◆ Automatically calculate and display the measured value, the maximum value, the minimum value, the average value and the hardness value deviation, the display shows the resolution 0.1HR；

◆ There are functions such as hardness upper and lower limit settings, tolerance alarms, data graph analysis, average and (single point) batch measurement modes；

◆ Software compensation function, the machine can be ± 3HR software compensation, no need to open the top cover for mechanical adjustment;

◆ With automatic hardness conversion function, according to ASTM E140 conversion, no need to check the complex hardness of the table；

◆ Multi-language features, can switch Chinese, English, German, Portuguese, Turkish, Czech, Korean and other languages；

◆ Built-in 2000 single data storage function and 1000 group packet data storage function, can view a single data and data analysis；

◆ Optional Bluetooth wireless printer to print the measurement data, no need to manually record and write test data；

◆ Optional Softhard data analysis software and Bluetooth receiver on the test data for the computer into and analysis；

◆ Support FexQMS measurement of large data analysis and control software to enhance the whole plant process control, reduce material loss.

Product Name	Digtial Heighten Digital Rockwell  Hardness Tester	Digital Heighten Superficial  Rockwell Hardness Tester	Digtial Twin Rockwell  Hardness Tester
Model	iRock-DR2	iRock-SR2	iRock-TR2
Code #	811-380	811-370	811-360
Preliminary Test Force	10Kgf(98.1N)	3Kgf(29.4N)	3Kgf(29.4N);10Kgf(98.1N)
Total Test Force	60Kgf(588.4N),100Kgf(980.7N),150Kgf(1471N)	15Kgf(147.1N),30Kgf (294.3N),45Kgf(441.3N)	15Kgf(147.1N),30Kgf(294.3N),45Kgf(441.3N);60Kgf(588.4N),100Kgf(980.7N),150Kgf(1471N)
Rockwell Scale	DR2: HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRH, HRK,HRL, HRM, HRP, HRR, HRS, HRV
Superficial Rockwell Scale	DS2: HR15N,HR30N,HR45N,HR15T,HR30T,HR45T
Full Rockwell Scale	TR2: HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRH, HRK,HRL, HRM, HRP, HRR, HRS, HRV; 15T,30T,45T; 15N,30N,45N; 15Y, 30Y, 45Y
Dwell Time	1-60s adjustable
Display Screen	5.2 ”Color touch screen; Resolution：640*480
Resolution	0.1HR
Loading  Mode	Auto loading/dwell/unloading
Conversion Scale	HV、HBS、HBW、HK
Conversion Standard	ASTM、DIN
Language	Chinese、English、German、Portuguese、Turkish、Czech、Korean
Software Correction	-3.0HR ~ +3.0HR, step value 0.1HR
Data Processing	2000 group single dat, line chart of group data function;  respectively provide single data viewing and group data viewing
Print	Optional Bulebooth printer
Max. Height of Specimen	280mm
Throat	170mm
Power Supply	AC 220V/50Hz; AC110V/60Hz
Dimension	615x225x885mm
Packing Dimension	670×440×1000(mm)
Net Weight /Gross	125Kg/140Kg
Execution standard	GB/T230.2,  EN-ISO6508, ASTME-18

Company Features
1. Sinowon Metrology Instrument is a saroj hardness tester brand which specializes in research and innovation with a concept of 'being responsible for rockwell machine '. With a strong technical foundation, Sinowon Innovation Metrology Manufacture Limited. has become the frontier of the rockwell hardness conversion industry.
2. Sinowon established a complete R&D management system for superficial hardness tester.
3. The company has a group of excellent professionals who have a clear view of the trends and a broad outlook for the product market. They strive to propose further technological innovations and new solutions for product improvement. Sinowon Innovation Metrology Manufacture Limited. adheres to the service concept and service mode of rockwell hardness tester calibration . Get more info!
