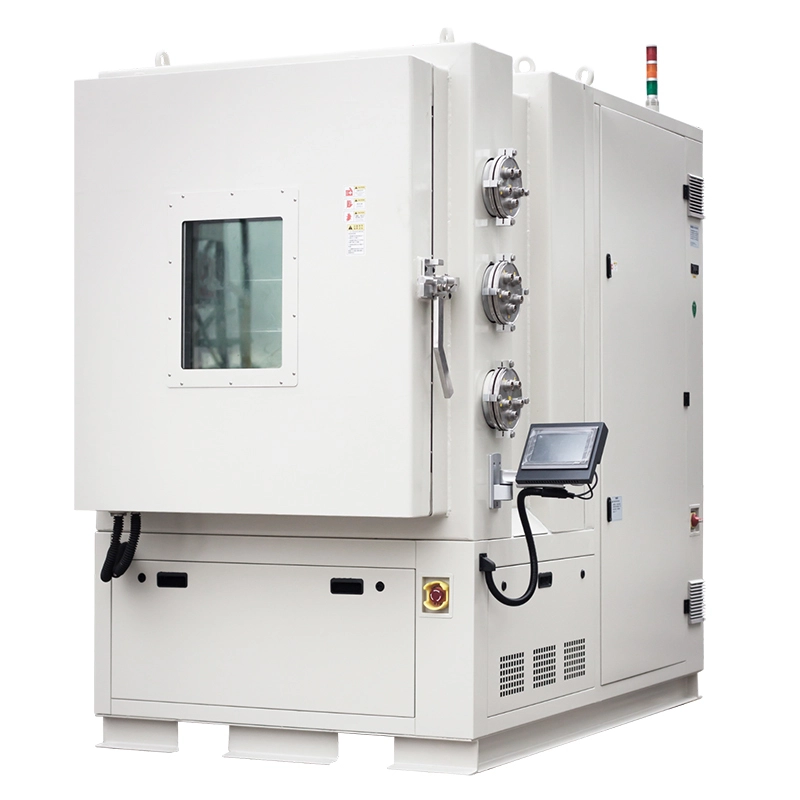

Sinowon SDH-150 Altitude Test Chamber1

Commodity

Model

Altitude Test Chamber

SDH-150L

2．Capacity and Dimension

Nominal internal volume

150L

Internal dimensions

External dimensions

W500xH600xD500 mm

W1100xH1700xD1600 mm

3.Performance index

Test Environmental Conditions

When the ambient temperature is 5-35 ℃, the relative humidity is ≤ 85% RH, and the cooling water temperature is+25 degrees Celsius

Cooling method

air-cooled

Temperature range

-40℃ ～ +150℃

Pressure Range

Atmospheric pressure～40kPa

Temperature rise and fall rate

The temperature rise rate from 20 ℃ to+85 ℃ is ≥ 2 ℃/min, with an average nonlinearity throughout the entire process, when unloaded

The cooling rate from 20 ℃ to -50 ℃ is ≥ 1 ℃/min, with an average non-linear throughout the entire process, when unloaded

Temperature fluctuation

≤±0.5℃

Temperature uniformity

≤2.0℃
