    Sinowon SDT Series Dustproof (Dust-resistant) Test Chamber1 2

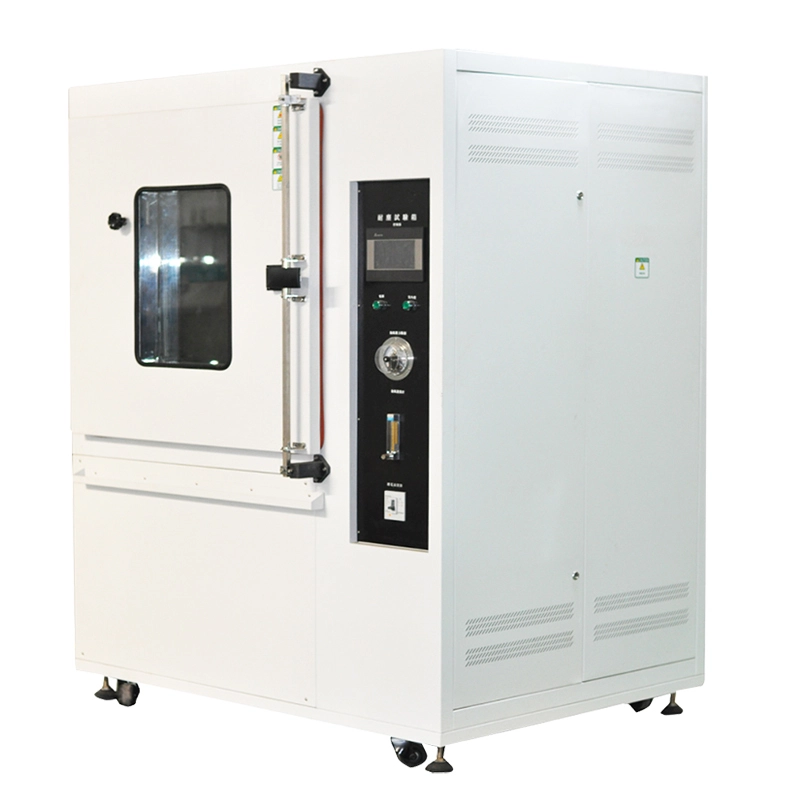

    The dust resistance test chamber (also known as sand dust test chamber, dust resistance) is mainly used for dust resistance and dust resistance tests for various automotive components, electrical and electronic components.The main test includes floating dust (F) and flowing dust (C).The tested parts include car lights, instruments, seat adjusters, electrical dust covers, lamps, steering system components, shafts, door locks, etc. for dust resistance.


    Product Characteristic



    lLarge transparent windows with lights and window wipers for direct observation of internal test conditions.

    lThe use of LCD color touch screen controller enables remote monitoring and operation with a computer connection.  It supports USB storage devices and can switch between Chinese and English.It controls temperature, dust blowing time, floating dust time, dust shaking time, resting time, and cycle expiration, respectively.

    lThe uniform synchronous air hammer vibrates the dust-raising device, and the electrostatic elimination device can prevent a large amount of dust from accumulating on the box wall.

    lIt can automatically correct the dust concentration from 100mg/m³ to 60000mg/m³.

    lAutomatic dust dehumidification system, which reduces the moisture content of incoming dust and stabilizes the dust quality.

    lWe can provide dozens of breathable and non-breathable dusts such as IEC, JIS industrial dust, Arizona dust, Portland cement, water powder, and Kanto sand.

    lDiscarded dust collection bag to ensure user health, automatic dust recovery device, users can reduce the need to enter the box for cleaning.




    Specification


    Commodity

    Dustproof (Dust-resistant) Test Chamber

    Model

    SDT-600

    SDT-800

    SDT-1000

    Code#

    221-621

    221-631

    221-641

    Interior

    Dimensions (mm)

    600*600*600

    800*800*800

    1000*1000*1000

    Exterior Dimensions (mm)

    The actual product shall prevail!

    Test Temperature

    25~40 (natural humidity, no control)

    Test Humidity

    45-85%RH (natural humidity, no control)

    Dust Spray Expired

    Intermittent control, continuous operation, cycle stop (adjustable)

    Test Dust

    Standard machine uses talcum powder (if you need to use other sand dust, please purchase it yourself)

    Dust blowing method

    Use a medium-pressure dust extraction fan to blow the test dust into the test space

    Dusting Method

    Use a vibrating motor to shake the dust attached to the inner wall of the machine back into the dust collector

    Inner box material

    304# stainless steel

    Outer box material

    Cold-rolled steel plate + powder paint

    Sample Rack

    304# stainless steel, the spacing between material racks can be freely adjusted, easy to use, standard configuration
