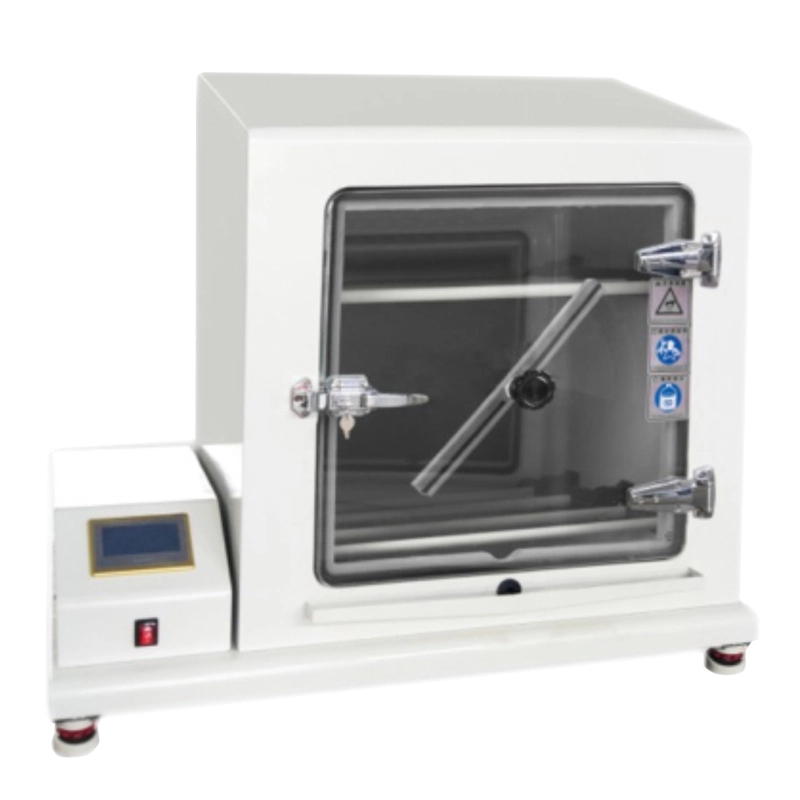

Sinowon SLN Series Condensate water test chamber1

Model:

SLN-300,SLN-500,SLN-1000,SLN-2000

Code#:

221-561,221-571,221-581,221-591

Warranty:

12 month

Delivery Time:

15-30days

Certificate:

Inquiry

Write a Review

Sinowon SLN Series Condensate water test chamber1 2

The condensed water test chamber can integrate low temperature, high temperature, and humidity testing into one, and can perform 100% humidity testing. It is an essential testing equipment for quality inspection colleges, electrical and electronic, automotive and motorcycle parts industries.This equipment is manufactured in strict accordance with ISO6270-2 standards, using European technology, advanced processes, and professional design, with long service life and guaranteed parameter accuracy. The overall parameters meet the international benchmarks for similar products.

Product Characteristic

lThe box material is made of reinforced polyester resin, which is acid-resistant, corrosion-resistant, and easy to clean;

lThe door features a large-view insulated vacuum tempered glass with a wiper that can rotate 360°, allowing users to observe the sample testing process;

lThe box adopts a European sloped design to prevent condensed water from adhering to the sample. The sample rack is made of corrosion-resistant, deformation-proof, moisture-proof glass fiber material, and the position of the sample rack can be adjusted as needed;

lLarge LCD touch programmable thermostat, intelligent human-computer interface, easy to operate;

lAdopt a microcomputer P.I.D controller with overtemperature deviation protection and digital display.The unique flat and constant temperature control allows for high-precision, highly stable temperature control;

lIt has a dedicated maintenance interface that automatically prompts users to set the temperature, humidity, and time parameters correctly.

Specification

Commodity	Condensate Water Test Chamber
Model	SLN-300	SLN-500	SLN-1000	SLN-2000
Code#	221-561	221-571	221-581	221-591
Interior Dimensions(WDH)mm	750510780	1100675650	13809801320	21309801320
Exterior Dimensions (WDH)mm	9506801020	16808801105	210012081725	280812081725
Placement Form	Desktop/table type	Floor-standing type
Volume of Capacity（L）	300	500	1000	2000
Heating Power	800W	1000W	1500W	2200W
Temperature and humidity range	40~60℃/100%RH
Temperature Fluctuation	±0.5℃
Temperature Uniformity	±3.0℃
Temperature and humidity deviation	≦±2.0℃/±3.0℃RH
Protective Device	Safe and reliable grounding protection device, heater short circuit, overload protection, etc.
Standard Configuration	2 standard sample racks, product certificate, instruction manual, warranty card
