Sinowon software vision design for commercial1

Company Advantages
1. Sinowon software vision is designed and optimized exclusively. Many factors which affect its performance such as materials, air circulation parts, housing finish are all considered during its design. The production is supported by professional engineers
2. This product can add a certain dignity and charm to any room. Its innovative design absolutely brings an aesthetic allure. It is easy to operate, with fast speed
3. The product is characterized by a smooth surface. The burrs removing workmanship has greatly honed its surface to a sleek level. The product is well used in many large engineering projects
4. The product has a soft close mechanism. The close hinges are adjustable and can eliminate the sound of slamming doors and drawers. More than 10,000 pcs have been delivered and installed
5. The product will not become yellowing. It is highly resistant to the influence of sunlight exposure, UV rays, and other strong lights. The product is verified by ISO9001:2015 to be quality ensured

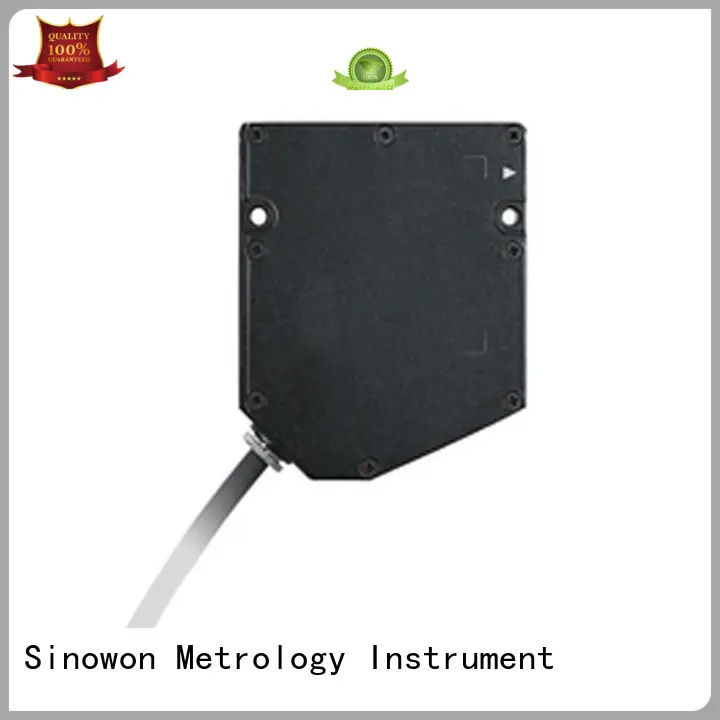

Model		LK-G30
Reference distance		30 mm (Diffuse   reflection),23.5 mm (Specular reflection)
Measuring range		±5 mm (Diffuse   reflection),±4.5 mm (Specular reflection)
Light source	Type	Red semiconductor   laser
	Wavelength	655nm (Visible   light), Class 3R laser product (JIS C6802)
	Laser Class	Class 3R (IEC   60825-1), Class IIIa (FDA CDRH Part 1040.10)
	Output	4.8 mW
Spot diameter (at   reference distance)		Approx. ø30 µm
Linearity		±0.05% of F.S.   (F.S.= ±5 mm)*1
Repeatability		0.05 µm (0.01 µm)*2*3
Sampling frequency		20/50/100/200/500/1,000   µs (Selectable from 6 levels)
LED display		Near the centre of   the measurement: Green lights    Within the measurement area: Orange lights    Outside the measurement area: Orange flashing
Temperature   characteristics		0.01 % of F.S./°C   (F.S. = ±5 mm)
Environmental   resistance	Enclosure rating	IP67 (IEC60529)
	Ambient light	Incandescent lamp   or Fluorescent lamp: 10,000 lux max.
	Ambient temperature	0 to +50 °C
	Relative humidity	35 to 85 % RH (No   condensation)
	Vibration   resistance	10 to 55 Hz, Double   amplitude 1.5 mm, 2 hours in each of the X, Y, and Z directions
Material		Aluminium die-cast
Weight		Approx. 280 g   (including the cable)
*1 This value was taken when measuring   a KEYENCE standard target (ceramic) in standard mode. *2 Consult your nearest KEYENCE representative for the Class   IIIa type with increased repeatability. *3 These values were taken when measuring a KEYENCE standard   target (SUS) at a reference distance and with the number of averaging   measurements set to 4,096

Company Features
1. Sinowon Innovation Metrology Manufacture Limited. own an excellent R&D team and have several production bases. Sinowon uses advanced technology to develop new software vision .
2. Sinowon Innovation Metrology Manufacture Limited. has strong technical advantage and will develop machine vision software .
3. We have a large number of professional technicians to control the production of linear scale . quick vision software has a great appeal to Sinowon Innovation Metrology Manufacture Limited. as a business concept. Inquire!
