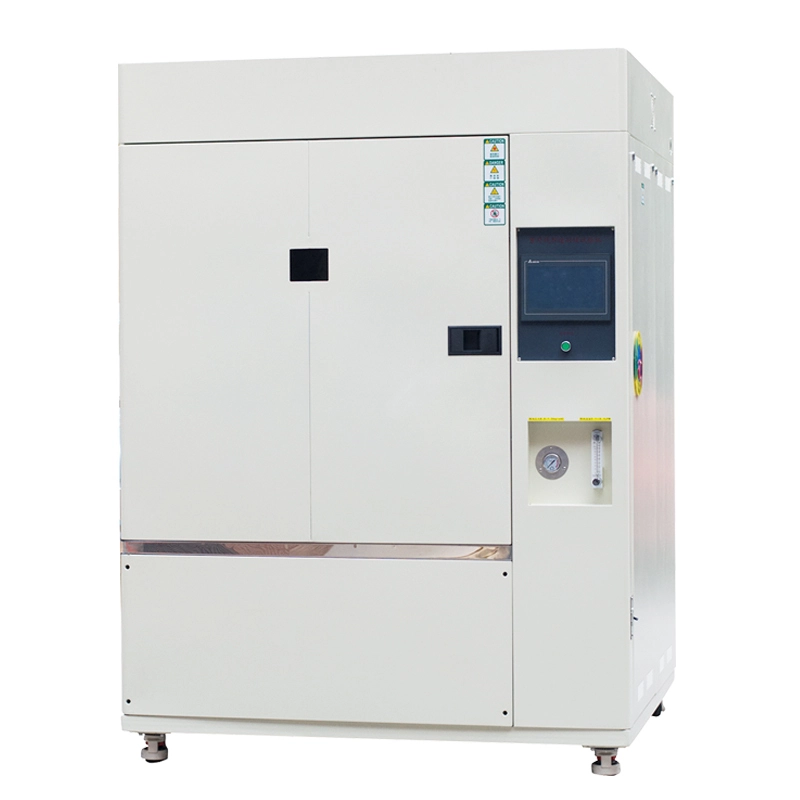

    Sinowon SSC-1300 Carbon arc Lamp Weather Resistance Test Chamber1 2

    The weather resistance test chamber for carbon arc lamps mainly uses solar-type carbon arc lamps as the light source. By changing the temperature (sample temperature, working chamber temperature), relative humidity, rainfall, etc., it simulates the comprehensive combination of light, heat, and water conditions of outdoor climate test chambers, and conducts artificial aging tests on the photochemical and mechanical properties of the tested materials.



    Product Characteristic



    Using PLC touch screen controller, the control is stable, and the main control parameters are light irradiance, working chamber temperature, sample rack temperature, and relative humidity, which can be automatically controlled by closed loop.



    Specification


    Commodity

    Carbon arc Lamp Weather Resistance Test Chamber

    Model

    SSC-1300

    Code#

    221-261

    Studio Dimensions(W*D*H

    1100*1100*1100mm

    Exterior Dimensions

    (W*D*H

    1300*1400*2050mm(The actual product shall prevail!)

    Use light source

    SUNSHINE CARBON-ARC

    Test time per cycle

    60 hours, 4 groups of carbon rods are used each time

    Temperature and humidity range: subject to the Black panel temperature

    Temperature Range

    40~70℃, black disk thermometer is 63±3℃ or 83±3℃

    Humidity Range

    When the temperature of the black disk thermometer is 63±3℃, the humidity is 50±5%.

    Environmental Conditions

    Room temperature: 25±3℃, relative humidity: 65±20%

    Temperature control method

    Electric control gate, automatic adjustment of intake and exhaust, balanced control of temperature.

    Wet control mode

    The immersion type electric heater produces water vapor and controls the humidity balance.

    Simulation of rainfall water spray cycle control

    Spray time can be set

    Spray for 18 minutes every 120 minutes (general type, rainfall cycle)

    Spray for 12 minutes every 60 minutes (rainy type, rainfall cycle)

    No spray (dry type, rainfall cycle)

    Spray water volume

    The total water volume of the nozzle at the spray pressure of 1.0kgf/cm2 is 2.10 ± 0.10L/min

    Customer water supply

    10E1 water pressure 1.5~3.0kgf/cm2

    Water Quality

    PH6.0~8.0, use hard water softening or pure water device when necessary

    Structure and material

    The test tank is made of stainless steel plate SUS304#, and the outer shell is made of steel plate painted

    The test tank door is equipped with an ultraviolet protection window

    The insulation layer is made of heat-resistant PU foam

    Rainfall cycle time control

    Power failure memory device (0-999min) with flow control: two-stage pressure regulation, pressure gauge and flowmeter (0-3.01/min)
