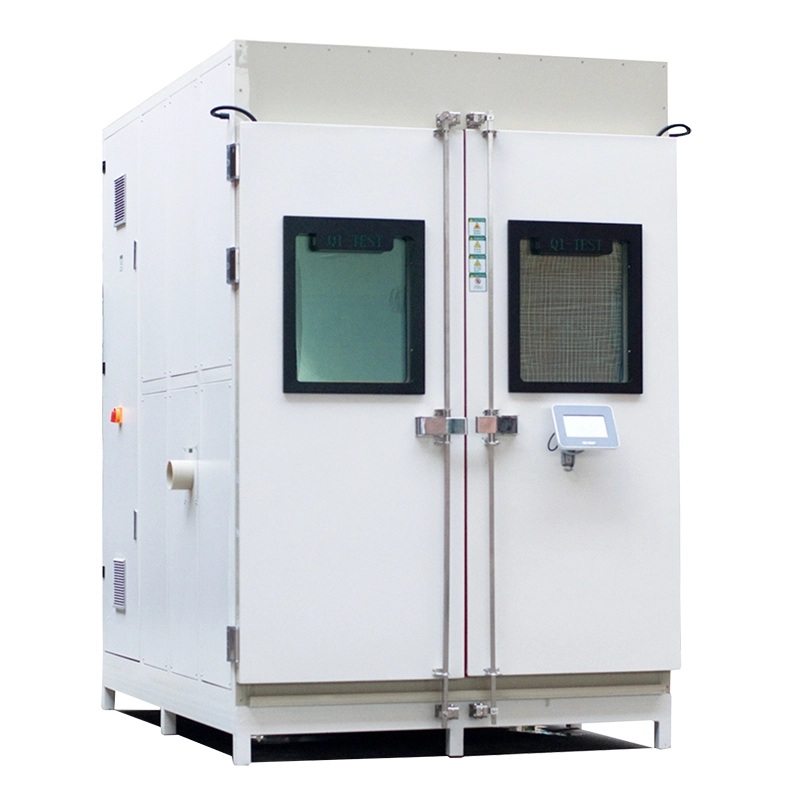

The walk-in composite cyclic corrosion test chamber mainly controls salt spray, temperature, humidity, condensation, and spray tests, mainly for large products such as aviation, high-speed rail trains, complete automobiles, housings, battery packs, solar panels, and other large workpieces. It is used for salt spray testing and CCT composite salt spray testing of tooling equipment.
lRefrigeration adopts the separate design of refrigeration system and spray system, including anti-corrosion refrigeration components and touch control system.
lThe double-door design is conducive to placing large samples.
lNo reaction door handle switch, dry seal of sealing strip.
lThe design of placing two layers of samples and the inverted trapezoidal inner box design.
lThermally stable, high-performance salt spray atomizing nozzle.
lPrecision salt spray collection device.
lThe automatic air purging device is interlocked with the top cover.
lIndependently developed programmable controller interface.
GB/T 10125-1997 《Corrosion Testing in Artificial Atmosphere - Salt Spray Test》
GB/T 10587-2006 《Technical conditions for salt spray test chamber》
GB/T 1771-2007 《Paints and varnishes—Determination of resistance to neutral salt spray》
GB10593.2-1990 《Measurement methods for environmental parameters of electrical and electronic products》
QB/T 3826-1999 《Test method for corrosion resistance of metal coatings and chemical treatment layers of light industrial products - Neutral salt spray test (NSS) method》
QB/T 3827-1999 《Test method for corrosion resistance of metal coatings and chemical treatment layers of light industrial products - Acetic acid salt spray test (ASS) method》
GB/T 12967.3-2008《Test methods for anodic oxidation coatings of aluminum and aluminum alloys—Part 3:Copper accelerated acetic acid salt spray test (CASS test)》
GJB 150.11A-2009 Environmental test methods for military equipment laboratory - Salt spray test
Model | Code# | Interior Dimensions(W*H*D)mm | (W*H*D)mm | Power Supply | Barometric Pressure |
SST-3600-CCT | 1500*1600*1500 | 1700*2500*2450 | 380V, 20KW | 8KG/m3 | |
221-351 | 2000*1700*2500 | 2200*2700*3850 | 380V, 25KW | 8KG/m3 | |
221-361 | 2000*2000*3000 | 2200*2850*4350 | 380V, 30KW | 8KG/m3 | |
221-371 | 2500*2000*5500 | 4200*2850*5850 | 380V, 45KW | 8KG/m3 |
