Sinowon stable ultrasonic hardness tester factory for mold

Company Advantages
1. All production processes of Sinowon steel hardness tester are operated at the highest possible standards. More than 10,000 pcs have been delivered and installed
2. Our company's product serves a wide variety of applications in the field. The Gost certificate has been obtained for the Russian market
3. On account of multiple advanced technology, ultrasonic hardness tester now stands out in this industry. The product can be controlled in a motorized way, to eliminate errors caused by manual operation

◆ Introduced latest ultrasonic sensor technology

◆ Obtain accurate hardness value without auxiliary devices

◆ Support 360° quick measuring

◆ Excellent human engineering design easy to hold

◆ Suitable dimension and weight of probe is convenient to control

◆ Quick and accurate measuring for edge and fixed position of specimen

◆ Micro indentation, Non- Destructive for specimen

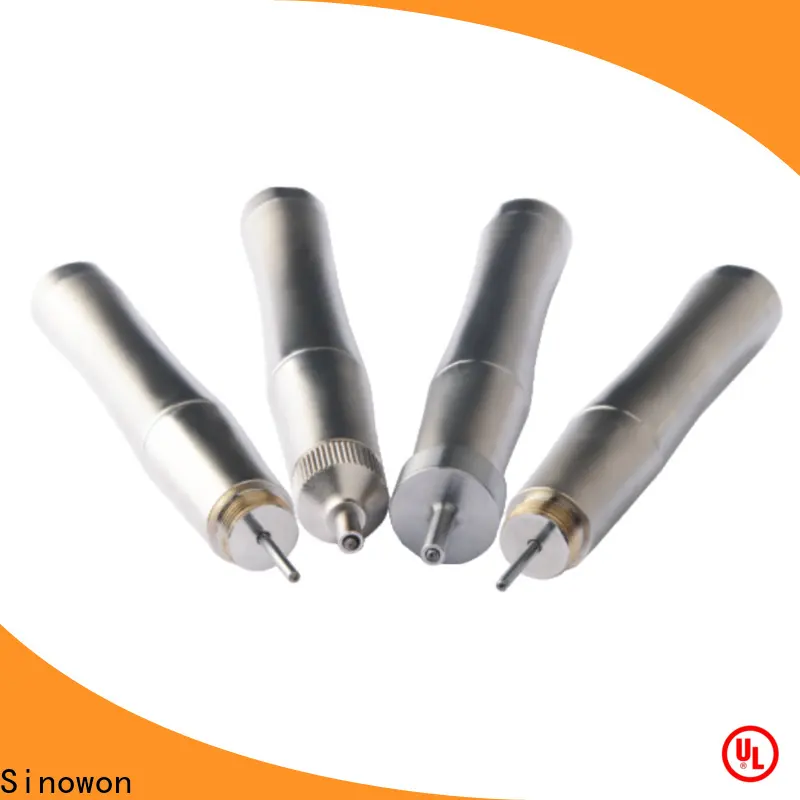

Product Name	Manual Ultrasonic Testing Probes of  Ultrasonic Hardness Tester
Probe Type	HP-1K	HP-2K	HP-5K	HP-10K
Code#	882-311	882-321	882-331	882-341
Remark Optional	Optional	Standard	Optional	Optional
Loading Force	10N	20N	50N	98N
Diameter	22mm	22mm	22mm	22mm
Length	154mm	154mm	154mm	154mm
Oscillating Rod Diameter	2.4mm	2.4mm	2.4mm	2.4mm
Roughness of measuring surface	Ra<3.2um	Ra<5um	Ra<10um	Ra<15um
Min weight of test material	0.3kg	0.3kg	0.3kg	0.3kg
Min thickness  of test material	2mm	2mm	2mm	2mm

Company Features
1. Sinowon has its own characteristics in the ultrasonic hardness tester industry.
2. Sinowon Innovation Metrology Manufacture Limited. has a scientific management model and well-trained and excellent employees.
3. To serve customers better, Sinowon has established its own service team. Get info!
