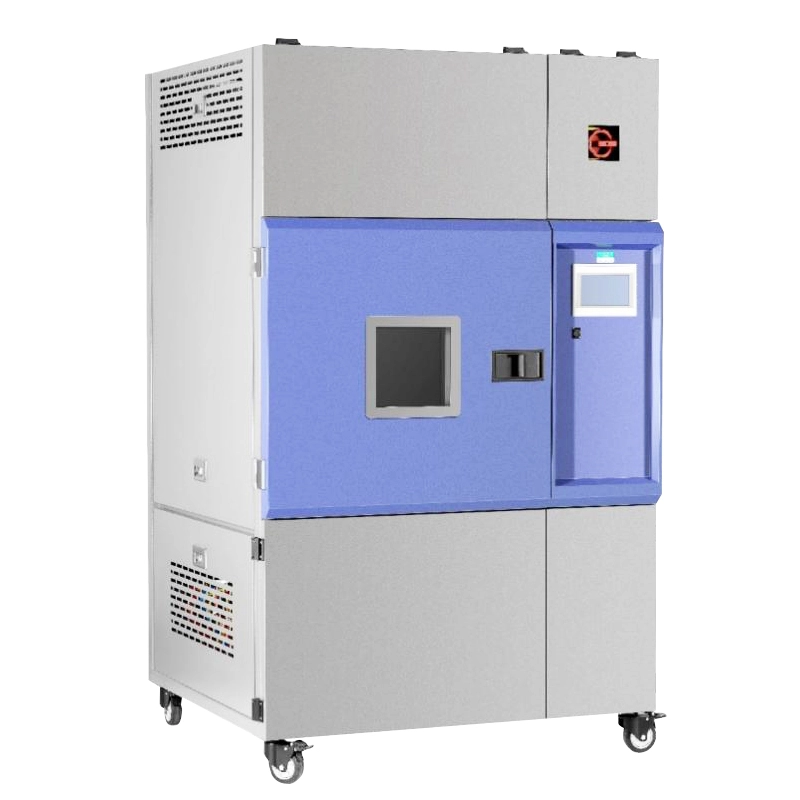

    Sinowon SXD Series Xenon Lamp Weather Resistance Test Chamber1 2

    Used for simulating artificial aging tests of various automotive interior materials, plastics, paints, coatings, electronic meters, textiles, printing and dyeing, dyes, decorative materials, wood floors, safety helmets, leather, petrochemicals, rubber, and other materials for light resistance, colorfastness to weather, and colorfastness to light and perspiration.

    By setting the conditions of xenon lamp irradiation energy, temperature, humidity, spraying, and alternating light and dark in the test chamber, a simulated natural environment required by the standard is provided to test the performance changes of materials such as fading, aging, softening, hardening, and cracking.




    Product Characteristic



    lDual temperature control, controlling the sample blackboard thermometer or ISO/DIN black standard thermometer and air temperature;

    lImported long arc lamp tube simulates the most realistic full-spectrum sunlight;

    lSpecial glass filters with specific transmittance can be interchanged with imported brands;

    lIrradiation technology: two solar standards are used for accelerated aging testing of narrow wave (420nm or 340nm), broadband (300-400nm) or irradiance control/lux (280-3000nm);

    lMonitoring interface: friendly monitoring interface, operation curve, mobile phone and computer APP communication technology.



    Specification


    Model

    Temperature/Temperature range

    Installed PowerKW

    Interior Dimensions

    W*H*Dmm

    Exterior Dimensions

    W*H*Dmm

    Lamp type

    Cooling Method

    SXD6000

    RT + 10 degrees ~ + 100 degrees Celsius (blackboard temperature)

    RT+10 degrees ~+80℃ (air temperature)

    28

    850*800*850

    1500*2200*1400

    Import Type

    Water Cooling

    SXD3000

    25

    850*800*850

    1500*2200*1400

    Domestic Type

    Water Cooling


    Temperature fluctuation

    ±0.5℃

    Temperature Uniformity

    ≤3℃

    Temperature Deviation

    ±2℃

    Humidity Range

    30~95%R.H±5%R.H

    Xenon Lamp Tube

    4KW6KW6.5KW

    Spectral Wavelength

    280~3000nm

    Distance from the center of the arc to the sample

    Effective exposure area of 275-400mm is 6500cm²

    Water spray cycle

    0~9999min adjustable (e.g. spray for 18min, stop for 102min)

    Water Spray Flow

    0.5L/min (front spray)

    Supply Voltage

    380V
