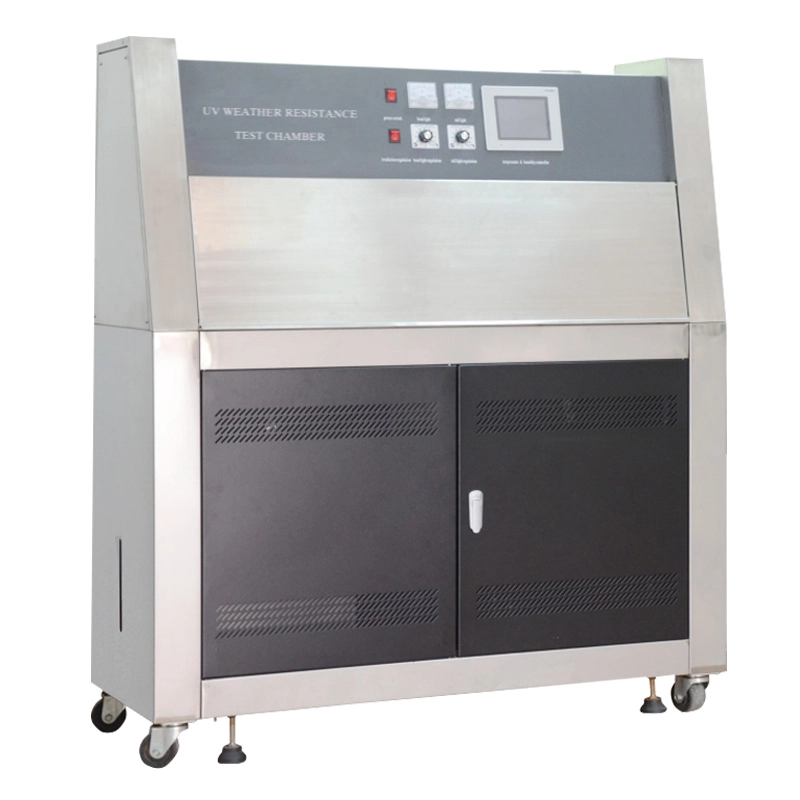

The UV aging test chamber provides a stable UV aging test environment for electronic, electrical, instrumentation, component, material and other test samples.This equipment can simulate the hazards caused by sunlight, rain and dew on materials.The damage types include fading, loss of gloss, powdering, cracking, crazing, blurring, blistering, embrittlement, strength reduction, and oxidation, which are beneficial for helping to select new materials, improve materials, and evaluate how changes in formulation affect product durability.
lSelf-developed touch screen control system, with more stable performance and easy operation, can set and display various operating data, and monitor the working status of the test chamber in real time.
lVarious different lamps can be used.
lDual-channel, dual-probe control system.
Commodity | UV Aging Test Chamber | |||
Model | ||||
Code# | ||||
Interior Dimensions (W*H*D)mm | 450*1165*500 | (W*H*D)mm | 515*1440*1300 | |
Center distance of lamp | 70mm | Distance between the test sample and the lamp plane | 55mm | |
Temperature Range | RT+10℃~+80℃ | |||
Temperature Uniformity | ±3.0℃ | |||
Humidity Range | 50%±5% (natural humidity) | |||
Ultraviolet Wavelength | UVA315-400nm or UVB280-315nm (domestic and imported lamps are optional accessories) | |||
Irradiation Intensity | 0.1~1W/m2nm adjustable | |||
Power Supply | AC 220V/50Hz, total power: 4.7KW | Standard test piece | 50*120mm or customized according to customer requirements | |
Security Configuration | Leakage protection, short circuit protection, fan overload protection, overtemperature protection, phase sequence/phase loss protection |
