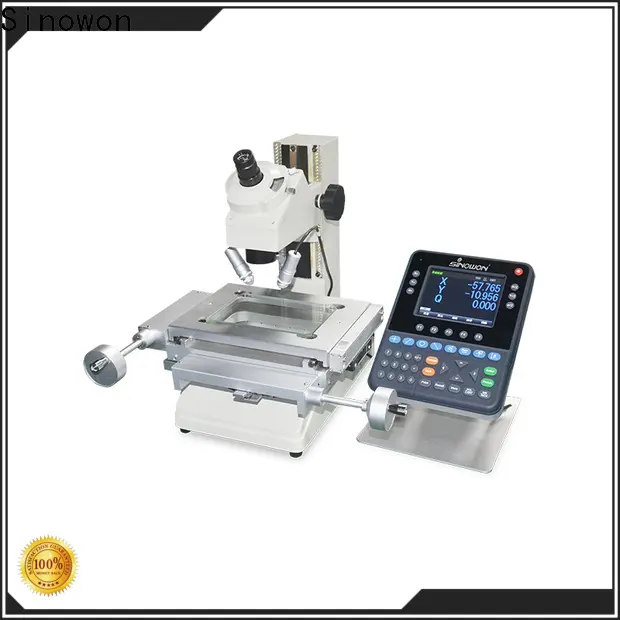

Sinowon use of tool makers microscope design for steel products
Model:
STM-1050
Code#:
531-130
Accuracy:
≤5um
Warranty:
12 month
Delivery Time:
15-30days
Certificate:
CE
Application:
It is widely used in mechanical, meter, electronic and light industry; university, Institute and metrology department. The measuring profile projector can detect the contour dimension and surface shape of variety complex workpiece, such as templates, punching pieces, cams, threads, gears, molding milling cutters.
Product Feature
◆ Precision working stage travel:100 x50mm;
◆ High precision linear scale : 0.5um;
◆ Color screen multifunctional digital readout : DP400;
◆ Optical objective with adjustable LED ring reflector illumination;
◆ With high accuracy and high stability;
Specification
| Model | STM-1050 |
| Code# | 531-130 |
| Metall Stage Size | 252×252mm |
| Glass Stage Size | 196×96mm |
| Resolution | 0.5um |
| Measuring Accuracy | ≤5um |
| Measuring Device | Digital Readout DP400 |
| Max.Height of Specimen | 115mm |
| Max.Weight of Specimen | 5Kg |
| Max.Magnification | 150×（Φ0.13mm）（15×Eyepiece+10×Objective） |
| Min.Magnification | 20×（Φ6.5mm）（10×Eyepiece+2×Objective） |
| Standard Magnification | 30×（Φ0.13mm）（15×Eyepiece+2×Objective） |
| Standard Working Distance | 67mm |
| Optical Tube | Monocular with 30°depression angle |
| 15×Eyepiece with Crossline Reticle | |
| Eyepiece | WF15/13 |
| Objective | Magnification:2× |
| Working Distance:2.638"(67mm) | |
| Eyepiece Protractor Range | 360° |
| Eyepiece Protractor Graduation | 1° |
| Vernier Angle Reading | 6’ |
| Contour Illumination | Light source:Tungsten bulb(24V;2W) |
| Surface Illumination | Ring LED illumination brightness adjustable |
| Power Supply | AC110V/60Hz;220V/50Hz |
| Dimension(D×W×H) | 415×315×420mm |
| Packing Dimension(D×W×H) | 210×333×391mm |
| Gross/Net Weight | 30Kg/25Kg |
Standard Delivery:
| Accessory Name | Code# | Accessory Name | Code# | Accessory Name | Code# |
| 15XEyepiece | 531-522 | 2X Objective | 531-602 | Ring Illumination | 413-146 |
| Linear Scale | 581-201 | Power Cable | 581-921 | Operation Manual | STM-1050 |
