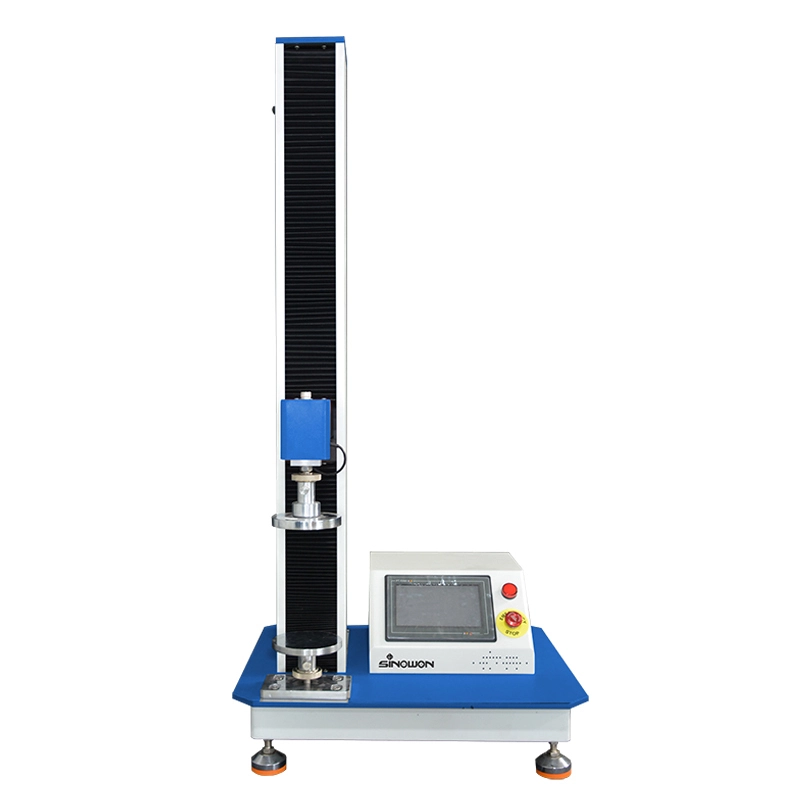

SL-8170 Tensile Compression Testing Machine

    oops...!

    no product data.

    Go to homepage

    SL-8170 Tensile Compression Testing Machine 5

    lSuitable for industries such as hardware, rubber and plastic, paper products, color printing and packaging, adhesive tapes, luggage and handbags, textiles, pharmaceuticals, daily chemicals, food, wires and electronics. Can conduct tests on various materials, semi-finished products, and finished products in the forms of tension, compression, bending, bending, shearing, tearing, peeling, etc;

    lElegant exterior design - a dynamic base with advanced spray molding treatment;

    lPrecision transmission mechanism - using high-precision, clearance free ball screws and timely gauge belts as the guarantee of transmission system accuracy;

    lAdvanced control methods - microcomputer or computer data acquisition and motion control;

    lUltra high testing accuracy - better than level 1 force measurement accuracy, 1/200000 force value resolution, and deformation measurement resolution up to 0.0001mm.



    Specification


    Model

    SL-8170

    SL-8170B

    Capacity

    2,5,10,20,50,100,200,500kg, optional

    Display

    Power and Extension Display

    Force measurement accuracy

    Better than ±1.0%

    Force resolution

    1/10, 000

    Effective force measurement range

    1~100%F.S

    Accuracy of deformation indication

    Better than ±1.0%

    Test speed range

    1500mm/min, optional

    Test maximum stroke

    1000mm, excluding grips

    Effective experimental space

    Front and back 120mm, right and left∝

    Power unit switching

    Kgf, gf, N, kN, Ibf

    Stress unit switching

    MPa, kPa, kgf/cm2, Ibf/in2

    Transformation unit switching

    Mm, cm, in

    Stop method

    Upper and lower limit safety settings, emergency stop button, program force and elongation settings, specimen damage detection

    Pointing method

    Manual point selection and pre-set point selection (20 points) function during the test process

    PC Linked

    N/A

    Yes

    Standard items

    1 pair of standard fixtures, 1 micro printer, 1 equipment power cord, 1 operation manual, 1 product qualification certificate, and 1 product warranty card

    1 pair of standard fixtures, 1 micro printer, 1 set of software and data cables, 1 equipment power cable, 1 operation manual, 1 product qualification certificate, and 1 product warranty card

    Dimension

    Around 57×47×120cm(W×D×H)

    Weight

    Around 55kg

    Motor

    Step motor

    Power

    1PH, AC220V, 50/60Hz, 10A or customized


    Professional testing software meets the relevant provisions of more than thirty national standards such as GB228-87 and GB228-2002. It can also conduct testing and data processing according to GB, ISO, JIS, ASTM, DIN, and various standards provided by users, and has good scalability.
