stable digital measuring device wholesale for steel products1
- Sinowon always put customers first and provides them with sincere and quality services.
1. The design of Sinowon machine digital readout takes many characteristics into consideration. They include function, comfort, durability, flexibility, waterproof and breathable materials, style, marketability, and cost.
2. Based on machine digital readout technology, digital measuring device has a wide application value.
3. digital measuring device ' s merits are machine digital readout, which especially adapt to digital readout systems .
4. Sinowon Innovation Metrology Manufacture Limited.'s domestic market appeal has gradually increased recent years.
5. Sinowon Innovation Metrology Manufacture Limited. has always adhered to the management tenet of 'Quality Products·Sincere Service'.
Product Feature
◆ 5.6〃Color Screen and Sealed silicone touch button,with full information, friendly operation, long using life;
◆ Save 100 permanent image elements, can set and save current date;
◆ Multi-function Measurement: Point, line, circle,angle, distance, rectangular, screw thread, ellipse, slot, rounding, preset,construction, and so on;
◆ Obverse or Opposite direction counting function,1/2 value, midpoint, permission function, Call function, REC(record)function,and Cycle measurement;
◆ Section and linear compensation are available for 3-axis, highly ensure measurement accuracy:
◆ Can connect foot switch,printer, optical edge detection and other multiple auxiliary measurement tools;
◆ With polar and coordinate system, and can display millimeter and inch, and can shift easily;
◆ With independent password permission function, to prevent the posibility of data deviation by wrong operation, it can also change the original setting by password permission;
◆ Support multiple language:Chinese, English and other language;
Technical Specification

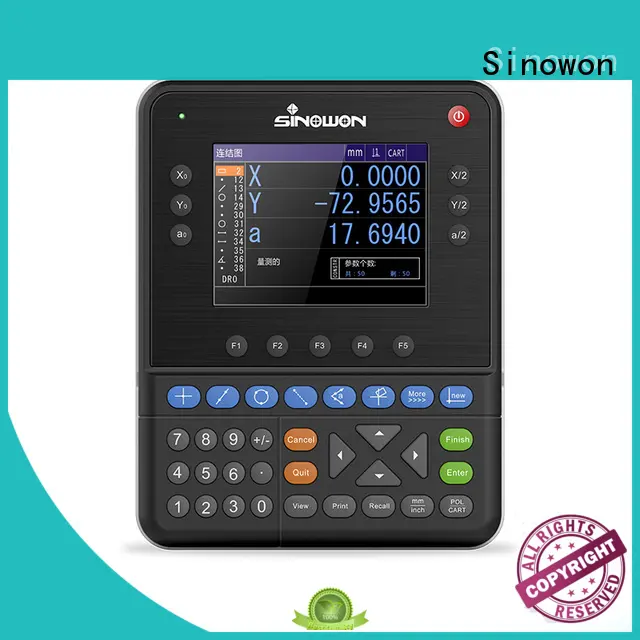

| Model | DP400(#510-340) |
| Language | Simple Chinese, Complicated Chinese, Portuguese, German and English, etc. |
| LCD Screen Size | 115mm×85mm |
| LCD Screen Resolution | 640*480 |
| Digital Display Range | 8Digits(With Decimal Point) |
| Display Axis | 3-axis (X,Y,Z/Q) |
| Z/Q Display Model | Length or Angle |
| Angle Display Model | Degree, Minutes and Second or Degree |
| Linear Scale Signal | TTL square-wave or AC sine wave of two 90 ° phase angle difference, drive capacity larger than 10MA |
| Linear Scale Resolution | 0.1um,0.2um,0.5um, 1um,2um,5um |
| Baud Rate | 4800,9600,14400,19200,38400,57600 |
| Data Output Port | RS232，DB-9 Parent interface |
| Operation Keyboard | Sealed Silicone touch-type keyboard |
| Expansion port | Foot Switch, Printer, Optical Edge Finder, etc |
| Input Power Supply | AC90V-240V,15W |
| Operation Environment | Working Temperature： 0 ℃～40 ℃；Storage Temperature：-10 ℃～60℃；Relative Humidity：<90%RH |
Product Details
Company Features
1. Sinowon Innovation Metrology Manufacture Limited. was founded years, being defined as a differentiated, high-quality, and cost-controlled manufacturer of machine digital readout.
2. We have a professional and dedicated design and engineering teams. They add value to the product development process by being involved in every stage of the development cycle.
3. Our company strives to achieve a strategic goal: the top brand in the world digital measuring device industry. Get price! Sinowon wants to become a professional brand in the world market. Get price!
24 hours online service.
Enquiry will be replied in 2 hours.
One year warranty.
1%-2%Spare Parts.
product quality are available.
Free parts for any breakdown with convincing evidence.
