stable digital microscope review personalized for cast iron
Model:
VM-200
Code#:
451-420
Warranty:
12 month
Delivery Time:
15-30days
Certificate:
CE
Application Scope
The optical measurement instruments of Sinowon is applicable in the following scenes.With many years of practical experience, Sinowon is capable of providing comprehensive and efficient one-stop solutions.
Enterprise Strength
- Sinowon adheres to the principle of 'users are teachers, peers are examples'. We adopt scientific and advanced management methods and cultivates a professional and efficient service team to provide quality service for customers.
1. Sinowon digital optical microscope presents an attractive design.
2. This product is thoroughly inspected as per the quality guidelines.
3. Our quality control ensures that customers receive the product free from defects.
4. The product is widely recognized and trusted by users and can meet continuously developing economic needs.
5. The product is perceived with high commercial value and will be more applied in the market.
Application:

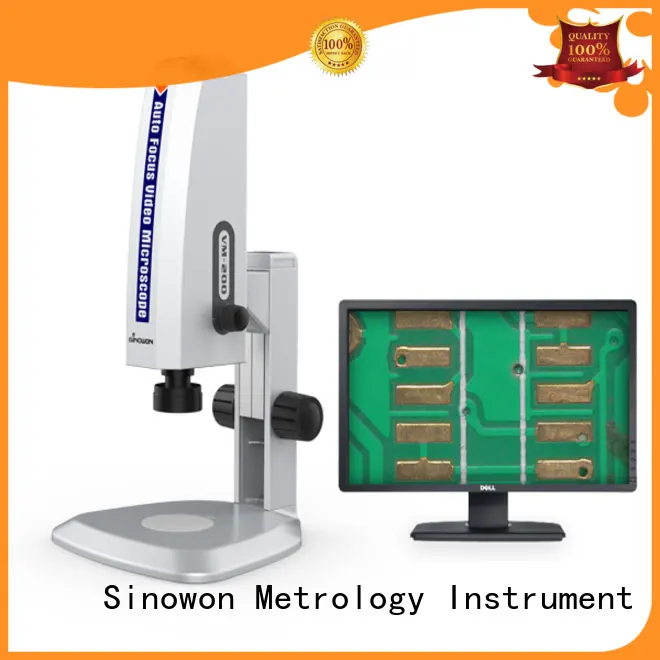

Product Feature
◆ Integral design, exquisite, fashion, generous;
◆ With high definition 0.7~4.5X parallel continue zoom lens, it is more convenient and fast to switch objective magnification;
◆ With adjustable LED surface reflection illumination, is able to control brightness independently;
◆ With 2 million pixel auto focus camera, no need to waste time for manual focus frequently.
Specification
| Product Name | Auto Focus Video Microscope |
| Model | VM-200 |
| Code# | 451-420 |
| Electronic Magnification | 32X~206X( VGA 4:3 21”Monitor；） |
| Optical Objective | 0.7X~4.5X Horizontal Zoom Lens |
| Zoom ratio：6.5:1 | |
| 0.5X C-mount Camera Adapter | |
| Camera Parameters | 2 million pixel (1920*1080) |
| Image Size:1/2.86” | |
| Frames Per Second：30fps | |
| Camera Function | Auto Focus |
| Cross Line | |
| Photograph and Video Record | |
| Output： HDMI | |
| White Balance; Brightness Control; Digital Noise Reduction | |
| Illumination | Surface: Adjustable LED Surface Illumination |
| Ring Fiber Illumination Optional | |
| Microscope Stand | Z-axis Travel: 100mm |
| Coarse Lifting System | |
| Electrical Parameters | AC90~240V；50~60HZ |
| Dimension | 310*285*500 mm |
| Weight | 6Kg |
Accessories:
| Product Name | Specification |
| Microscope Main Body | VM-200 |
| Power Adapter | DC5V（Camera）、DC12V（Illumination） |
| Monitor | Optional 4:3 21.5” |
| Operation Manual/Warranty Card/Certificate/Packing list | VM-200 |
Field of View:
| Auxiliary objective | Field of view （0.5X Camera Adapter) | Remark | |||||||||||||||||||
| 0.7X | 1X | 2X | 3X | 4X | 4.5X | ||||||||||||||||
| Length | Width | Diagonal | Length | Width | Diagonal | Length | Width | Diagonal | Length | Width | Diagonal | Length | Width | Diagonal | Length | Width | Diagonal | ||||
| 0.5X WD:108mm | Magnification 0.18X-1.12X | Optional | |||||||||||||||||||
| 25.29 | 22.86 | 34.09 | 17.70 | 16.00 | 23.86 | 8.85 | 8.00 | 11.93 | 5.90 | 5.33 | 7.95 | 4.43 | 4.00 | 5.97 | 3.93 | 3.56 | 5.30 | ||||
| 1.0X WD:91mm | Magnification 0.35X-2.25X | Standard | |||||||||||||||||||
| 12.64 | 11.43 | 17.04 | 8.85 | 8.00 | 11.93 | 4.43 | 4.00 | 5.97 | 2.95 | 2.67 | 3.98 | 2.21 | 2.00 | 2.98 | 1.97 | 1.78 | 2.65 | ||||
| 2.0X WD:35.3mm | Magnification0.70X-4.50X | Optional | |||||||||||||||||||
| 6.32 | 5.71 | 8.52 | 4.43 | 4.00 | 5.97 | 2.21 | 2 | 2.98 | 1.48 | 1.33 | 1.99 | 1.11 | 1.00 | 1.49 | 0.98 | 0.89 | 1.33 | ||||
Company Features
1. Sinowon Innovation Metrology Manufacture Limited. is a well-known manufacturer of digital optical microscope in China. We have many years of exclusive experience in this industry.
2. It has been widely known that Sinowon has been very famous for its digital microscope review .
3. Maximized mutual benefits is Sinowon Innovation Metrology Manufacture Limited.'s biggest principle. Ask! Our aim is to let each customer speak highly of the service of Sinowon. Ask!
