stable portable hardness tester price factory for precision industry
Product Feature
◆ Metal shell, nice appearance design.
◆ Available to save 2000 groups test results.
◆ Support hardness conversion among HRC, HRA, HRB, HV, HB, etc, can convert 2 different scales simultaneously.
◆ 4” LCD to display hardness result, conversion results, Max, Min,Mean value;
◆ Support blue tooth printer, with RS232 to connect computer for software running;
◆ Can test all kinds of metal which more than 5kg;
◆ Indicating error ±5HLD, conform standard ASTM A956;
◆ Support 7 types of impact devices.
Application
◆ Die cavity of molds;
◆ Bearings and other parts;
◆ Failure analysis of pressure vessel, steam generator and other equipment;
◆ Heavy work piece;
◆ The installed machinery and permanently assembled parts;
◆ Testing surface of a small hollow space;
◆ Material identification in the warehouse of metallic materials;
◆ Rapid testing in large range and multi-measuring areas for large-scale work piece.
Specification

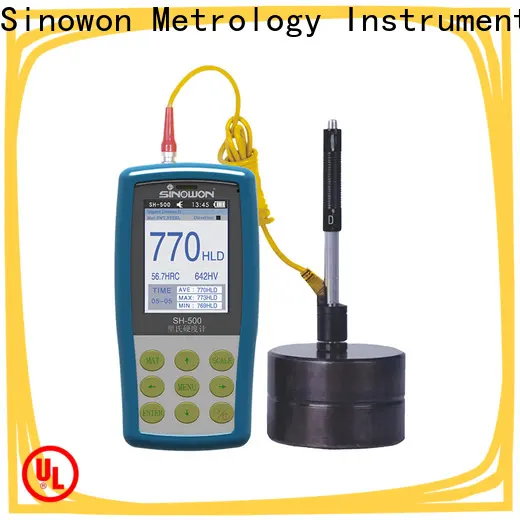

| Product Name | Portable Leeb Hardness Tester |
| Model | SH-500 |
| Code# | 852-150 |
| Measuring Range | (170-960)HLD,(17-68.5)HRC,(19-651)HB,(80-976)HV,(30-100)HS,(59-85)HRA(13 -100)HRB |
| Measuring Direction | 0~360° |
| Data Storage | maximum 2000 Groups test Results |
| Data-Output | RS232/Printer |
| Hardness Indication | 240x160 graphic dot color LCD display |
| Hardness Scale | HL、HBW、HRB、HRC、HRA、HV、HS |
| Shell Material | Metal |
| Indicating Error | HLD：±6 HRC：±1 HB：±4 |
| Language Option | Chinese, English, German, Portuguese, Turkish |
| Statistics | Average value, min-max ,upper-lower limits |
| Impact Device | D (standard) |
| Optional impact Devices | DC/D+15/DL/G/C/E |
| Work piece radius(convex/concave) | Rmin=50mm(with support ring Rmin=10mm) |
| Min. Workpiece weight | 2~5kg on stable support 0.05~2kg with compact coupling except C and G impact device |
| Workpiece min. thickness couple | 5mm, G:10mm,C:1mm |
| Workpiece min. case hardened depth | 0.08mm C: 0.2mm G:1.2mm |
| Power Supply | 4.2V |
| Operating Temperature | 0 ℃-40 ℃ |
| Dimension | 160x 80 x 31mm |
| Weight | 500g(Excluding impact device and printer) |
Standard Delivery:
| Standard Delivery | Code# |
| Instrument Main Body | 852-150 |
| Impact device type D | 852-410 |
| Hardness Block(750-830)HLD | 852-630 |
| Cleaning brush | 852-860 |
| SINOWON certificate | SH-500 |
| Recharger | 852-850 |
| Accessories Box | 852-900 |
| Instrument Manual | SH-500 |
Measuring Range / Materials:
| Material | HLD | HRB | HRC | HB | HV | HSD |
| Steel and cast steel | 300-900 | 38-100 | 20-68 | 81-654 | 81-955 | 32-100 |
| Cold work tool steel | 300-840 | — | 20-67 | — | 80-898 | — |
| Stainless steel | 300-800 | 46-101 | — | 85-655 | 85-802 | — |
| Grey cast iron | 360-650 | — | — | 93-334 | — | — |
| Nodular cast iron | 400-660 | — | — | 131-387 | — | — |
| Cast aluminum alloys | 170-570 | 23-84 | — | 19-164 | — | — |
| Brass | 200-550 | 13-95 | — | 40-173 | — | — |
| Bronze | 300-700 | — | — | 60-29 | — | — |
| Copper | 200-690 | — | — | 45-315 | — | — |
