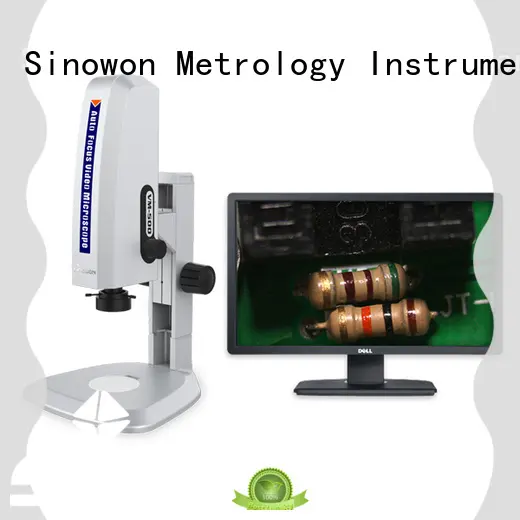

stable vision microscope supplier for soft alloys
Model:
VM-500
Code#:
451-450
Warranty:
12 month
Delivery Time:
15-30days
Certificate:
CE
Product Details
Choose Sinowon's hardness testing machines for the following reasons.Sinowon pays great attention to integrity and business reputation. We strictly control the quality and production cost in the production. All these guarantee hardness testing machines to be quality-reliable and price-favorable.
1. Sinowon buy digital microscope has a user-friendly design that can give intuitive user experience.
2. This product has the advantage of bacteria resistance. It has a nonporous surface that is unlikely to gather or hide mold, bacteria, and fungal.
3. This product is strongly resistant to moisture. It will not be affected by water which will provide fertile grounds for germs and molds.
4. The sales of vision microscope also benefits from the sales network.
Application:
Incoming inspection, production inspection, material research, PCB and SMT inspection analysis, printing, textile inspection, biological anatomy, medical testing and other fields.
Product Feature
◆ Integral design, exquisite, fashion, generous;
◆ Built-in FULL HD sensor and VGA integrated camera, can directly connect with the monitor to realize video image and can also use SD card to take picture or record video, which integrate video observation and image storage;
◆ With high definition 0.7~4.5X parallel continue zoom lens, it is more convenient and fast to switch objective magnification;
◆ With adjustable LED surface reflection illumination, is able to control brightness independently;
◆ With 2 million pixel auto focus camera, no need to waste time for manual focus frequently.
Specification
| Product Name | Auto Focus Video Microscope |
| Model | VM-500 |
| Code# | 451-450 |
| Electronic Magnification | 32X~206X( VGA 4:3 21”Monitor；） |
| Optical Objective | 0.7X~4.5X Horizontal Zoom Lens |
| Zoom ratio：6.5:1 | |
| 0.5X C-mount Camera Adapter | |
| Camera Parameters | 2 million pixel (1920*1080) |
| Image Size:1/2.86” | |
| Frames Per Second：30fps | |
| Camera Function | Auto Focus |
| Cross Line | |
| Photograph and Video Record | |
| Output： HDMI | |
| White Balance; Brightness Control; Digital Noise Reduction | |
| Illumination | Surface: Adjustable LED Surface Illumination |
| Ring Fiber Illumination Optional | |
| Microscope Stand | Z-axis Travel: 100mm |
| Coarse Lifting System | |
| Electrical Parameters | AC90~240V；50~60HZ |
| Dimension | 310*285*500 mm |
| Weight | 6Kg |
Accessories:
| Product Name | Specification |
| Microscope Main Body | VM-500 |
| Power Adapter | DC5V（Camera）、DC12V（Illumination） |
| Monitor | Optional 4:3 21.5” |
| Operation Manual/Warranty Card/Certificate/Packing list | VM-500 |
Field of View:
| Auxiliary objective | Field of view （0.5X Camera Adapter) | ||||||||||||||||||||
| 0.7X | 1X | 2X | 3X | 4X | 4.5X | Remark | |||||||||||||||
| Length | Width | Diagonal | Length | Width | Diagonal | Length | Width | Diagonal | Length | Width | Diagonal | Length | Width | Diagonal | Length | Width | Diagonal | ||||
| 0.5X WD:108mm | Magnification 0.18X-1.12X | Optional | |||||||||||||||||||
| 25.29 | 22.86 | 34.09 | 17.70 | 16.00 | 23.86 | 8.85 | 8.00 | 11.93 | 5.90 | 5.33 | 7.95 | 4.43 | 4.00 | 5.97 | 3.93 | 3.56 | 5.30 | ||||
| 1.0X WD:91mm | Magnification 0.35X-2.25X | Standard | |||||||||||||||||||
| 12.64 | 11.43 | 17.04 | 8.85 | 8.00 | 11.93 | 4.43 | 4.00 | 5.97 | 2.95 | 2.67 | 3.98 | 2.21 | 2.00 | 2.98 | 1.97 | 1.78 | 2.65 | ||||
| 2.0X WD:35.3mm | Magnification0.70X-4.50X | Optional | |||||||||||||||||||
| 6.32 | 5.71 | 8.52 | 4.43 | 4.00 | 5.97 | 2.21 | 2 | 2.98 | 1.48 | 1.33 | 1.99 | 1.11 | 1.00 | 1.49 | 0.98 | 0.89 | 1.33 | ||||
Product Details
Company Features
1. Sinowon Innovation Metrology Manufacture Limited. is a production professional in vision microscope industry.
2. Our company has employed a dedicated sales team. They know well about our products and has a certain understanding of overseas culture, dealing with our customers' inquiry quickly.
3. Sinowon is ambitious enough to become one of the most professional digital microscope review supplier. Check it! Sinowon Innovation Metrology Manufacture Limited. is dedicated to creating a beat digital microscope products system for customers. Check it! Sinowon Innovation Metrology Manufacture Limited. sincerely do our best to offer the best service for all clients and businessmen. Check it!
