STH-32 Benchtop Temperature and Humidity Test Chamber 1

STH-32 Benchtop Temperature and Humidity Test Chamber 2

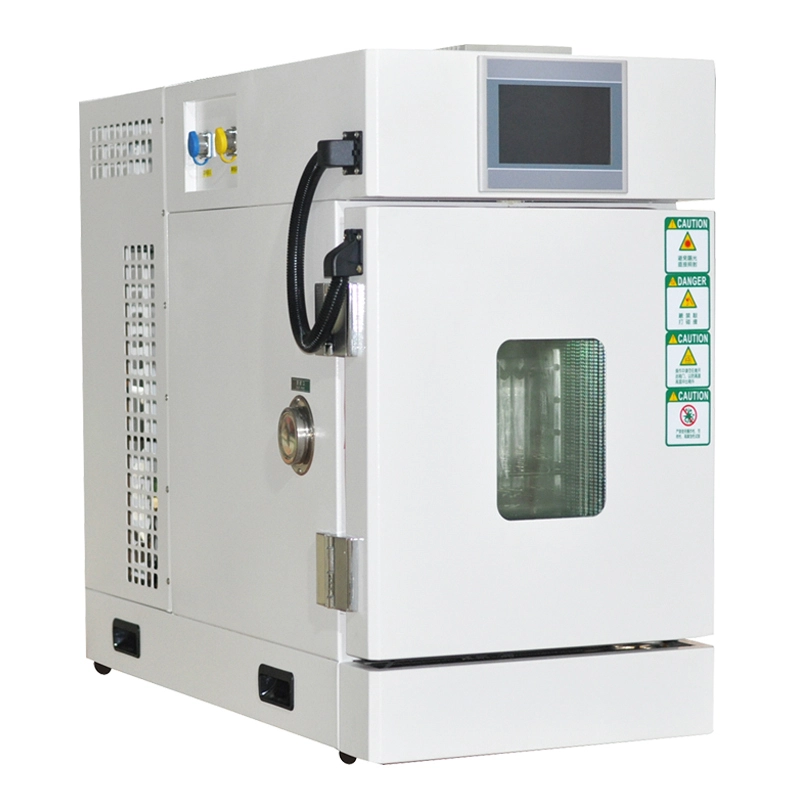

STH-32 Benchtop Temperature and Humidity Test Chamber

Model:

STH-32

Code#:

221-551

Warranty:

12 month

Delivery Time:

15-30days

Certificate:

Inquiry

Write a Review

STH-32 Benchtop Temperature and Humidity Test Chamber 3

This machine is mainly used for small parts and small-scale testing, and is the most suitable choice for reliability research and development of electronic products.

Suitable for adaptability testing of optoelectronic, semiconductor, electronic related parts, automotive parts, computer related parts and materials during storage, transportation, and use in high and low temperature alternating humid and hot environments.

Product Characteristic

Desktop design, beautiful in appearance, silent, small in size and large in volume, not taking up space, suitable for office use.

Touch type color LCD operation screen, displaying various operating data, users can freely set and save according to their needs.

Using the latest intelligent (refrigeration & dehumidification) system, compared to traditional machines, it can save 30-45% electricity.

Large observation windows and experimental space lighting.

It can be connected to a computer or phone through a LAN or USB port for remote control.

There is a data collection and storage interface that can output graphics and Excel data tables.

An independent temperature limit alarm system, which automatically interrupts when the temperature exceeds the limit, ensuring the safe operation of the test process.

Specification

Commodity	Benchtop Temperature and Humidity Test Chamber
Model	STH-32B	STH-32C	STH-32D
Code#	221-551B	221-551C	221-551D
Internal dimensions (W×H×D)mm	300×350×300
External dimensions (W×H×D)mm	550×850×1050
Terperture Range	B: B=-20℃~ +100℃;	C: C=-40℃~+100℃;	D: C=-50℃~+100℃
Humidity Range	20%～98%R.H
Terperture Uniformity	≤2℃
Humidity Uniformity	±3%R.H
Heating-Up Time	1.0℃~3.0℃/min
Cooling Time	0.7℃~1.0℃/min
Inner box materials	SUS304 # High-quality stainless-steel plate,
outer box materials	Cold-rolled plate powder baking paint
Insulation material	Rigid foam
Freezing system	Air-cooled
Protective devices	Compressor overload protection switch, refrigerant high pressure protection switch, ceramic fuse, water tray shortage protection switch, electromagnetic switch, air burning protection switch, alarm
Power supply	AC1 Ø 220V 50/60HZ

Software Introduction
