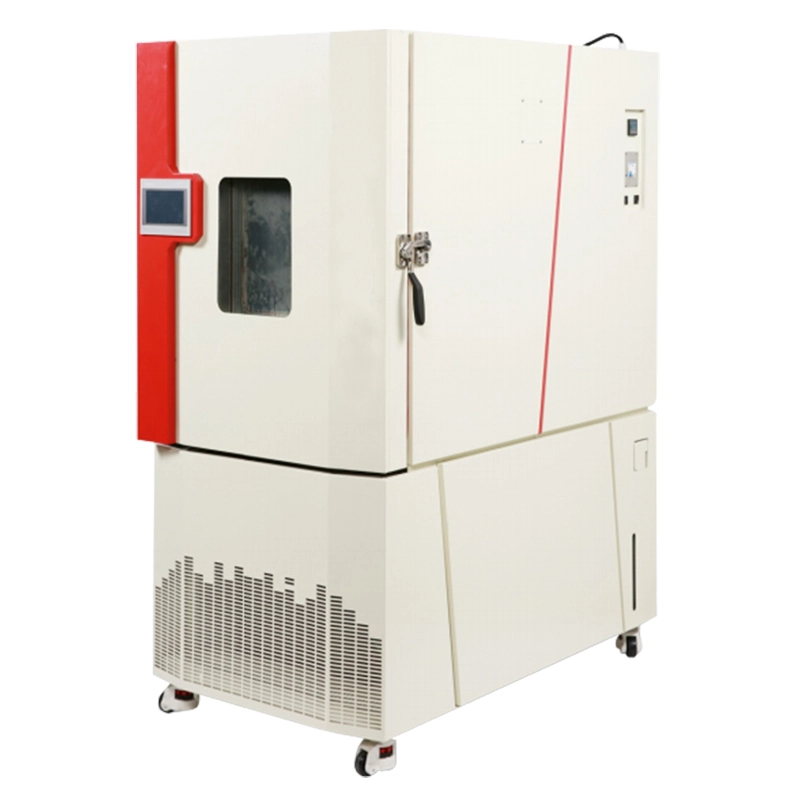

STH Series Constant Temperature and Humidity Test Chamber 1
STH Series Constant Temperature and Humidity Test Chamber 2
STH Series Constant Temperature and Humidity Test Chamber 1
STH Series Constant Temperature and Humidity Test Chamber 2

STH Series Constant Temperature and Humidity Test Chamber

    oops...!

    no product data.

    Go to homepage

    STH Series Constant Temperature and Humidity Test Chamber 3

    The constant temperature and humidity test chamber is suitable for investigating the resistance to moisture of electrical and electronic products, components, parts and materials under different temperature and humidity conditions. It can also be used as an adaptability test for storage, transportation and use in high and low temperature environments.The cabinet is equipped with an independent control system and uses a human-machine interface touch screen controller for simple and intelligent operation.




    Product Characteristic


    lEasy to operate: Mode color LCD operation screen, display various operating data, users can freely set and save according to their needs.

    lEnergy saving and consumption reduction: Using the latest developed intelligent (freezing & dehumidification) system, it can save 30-45% of electricity compared to traditional machines.

    lConvenient observation: large observation window and test space lighting.

    lCommunication storage: It can be connected to a computer or mobile phone through a LAN or USB port to enable remote control.It has a data acquisition storage interface that can output graphics and Excel data tables.

    lComplete series: In addition to standard test chambers, it can also meet non-standard requirements.

    STH Series Constant Temperature and Humidity Test Chamber 4

    Advantages of independently developed programmable controller


    lAdopt 7-inch or 10.1-inch industrial control touch screen with higher display frequency.

    lSimple interface, all operations can be completed in 3 steps.

    lAdopting self-developed internal control algorithm and high-precision acquisition module, it is stable and accurate.

    lLow-power refrigeration system, with energy-saving control algorithms, achieves internal balance in refrigeration, rejecting the high-power control mode that relies on heaters for balance.

    lWe have independently developed a control system that allows us to better customize for you and make you stand out from the crowd.

    STH Series Constant Temperature and Humidity Test Chamber 5



    Specification


    Model

    STH-100

    STH-150

    STH-225

    STH-416

    STH-1000

    Code#

    221-501

    221-511

    221-521

    221-531

    221-541

    Interior

    DimensionsW*H*Dmm

    500*500*400

    500*600*500

    500*750*600

    700*850*700

    1000*1000*1000

    Internal VolumeL

    100

    150

    225

    416

    1000

    Exterior Dimensions (mm

    The external box size is subject to the quotation

    Temperature Range (optional)

    (-40℃/-50℃/-60℃/-70℃~+150℃ optional) can be customized ~+180℃

    Humidity Range

    10% to 98% RH (humidity working range +10℃ to 90℃) Customizable low humidity range of 5% to 98% RH

    Temperature Fluctuation

    ±0.3℃

    Temperature Deviation

    ±2℃

    Humidity Deviation

    -3~+2%R.H (above 75%R.H), ±5%R. H (below 75%R.H)

    Heating Time

    About 3℃/min (non-standard customization is available at 5℃, 10℃, 15℃/min)

    Cooling Time

    About 1℃/min (non-standard customization is available at 5℃, 10℃, 15℃/min)

    Materials

    Case Material

    Cold-rolled steel plate + paint treatment (SUS#304 stainless steel, optional)

    Liner Material

    SUS#304 stainless steel

    Thermal insulation material

    Rigid polyurethane foam

    Freezing System

    Well-known brand compressor

    Protective Device

    No fuse switch, compressor overpressure, overheating protection, overcurrent protection, overtemperature protection, overload protection, dry burning protection, water shortage protection, etc.

    Power Supply

    AC220V/380VAC3ø50/60HZ

    Standard Accessories

    1 test hole, 2 storage racks, 1 operation manual
