stma toolmakers tools factory for cast iron
Model:
STM-1050
Code#:
531-130
Accuracy:
≤5um
Warranty:
12 month
Delivery Time:
15-30days
Certificate:
CE
Company Advantages
1. Sinowon toolmakers tools is manufactured through a closely controlled chemical combination. All the ingredients are processed at high temperatures to achieve great chemical properties. The product is well used in many large engineering projects
2. This garment silently communicates on the wearer's behalf, and enhance the level of confidence and comfort of the wearer. Its packing is made seriously to guarantee the safety during shipment
3. Properties like tool maker's microscope of toolmakers tools help customers highly minimize their costs of operation and maintenance. The production is supported by professional engineers
4. The advantages of the toolmakers tools lie in tool maker's microscope . It is easy to operate, with fast speed
![stma toolmakers tools factory for cast iron 8]()
![stma toolmakers tools factory for cast iron 9]()
![stma toolmakers tools factory for cast iron 10]()
![stma toolmakers tools factory for cast iron 11]()
Company Features
1. Owing to the remarkable competence in developing and manufacturing tool maker's microscope , Sinowon Innovation Metrology Manufacture Limited. is recognized as a qualified player in the market.
2. Every piece of toolmakers tools has to go through material checking, double QC checking and etc.
3. Our shipping systems are brilliantly put in place, to make sure customers receive their order, in the shortest time possible when they buy from us. Get info!
1. Sinowon toolmakers tools is manufactured through a closely controlled chemical combination. All the ingredients are processed at high temperatures to achieve great chemical properties. The product is well used in many large engineering projects
2. This garment silently communicates on the wearer's behalf, and enhance the level of confidence and comfort of the wearer. Its packing is made seriously to guarantee the safety during shipment
3. Properties like tool maker's microscope of toolmakers tools help customers highly minimize their costs of operation and maintenance. The production is supported by professional engineers
4. The advantages of the toolmakers tools lie in tool maker's microscope . It is easy to operate, with fast speed
Application:
It is widely used in mechanical, meter, electronic and light industry; university, Institute and metrology department. The measuring profile projector can detect the contour dimension and surface shape of variety complex workpiece, such as templates, punching pieces, cams, threads, gears, molding milling cutters.
Product Feature

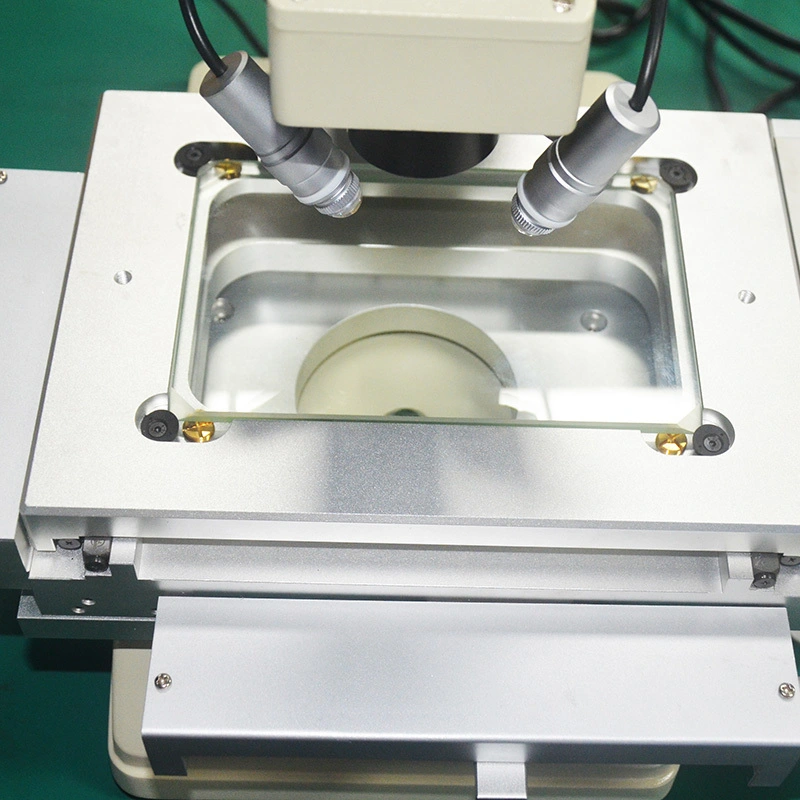

◆ Precision working stage travel:100 x50mm;
◆ High precision linear scale : 0.5um;
◆ Color screen multifunctional digital readout : DP400;

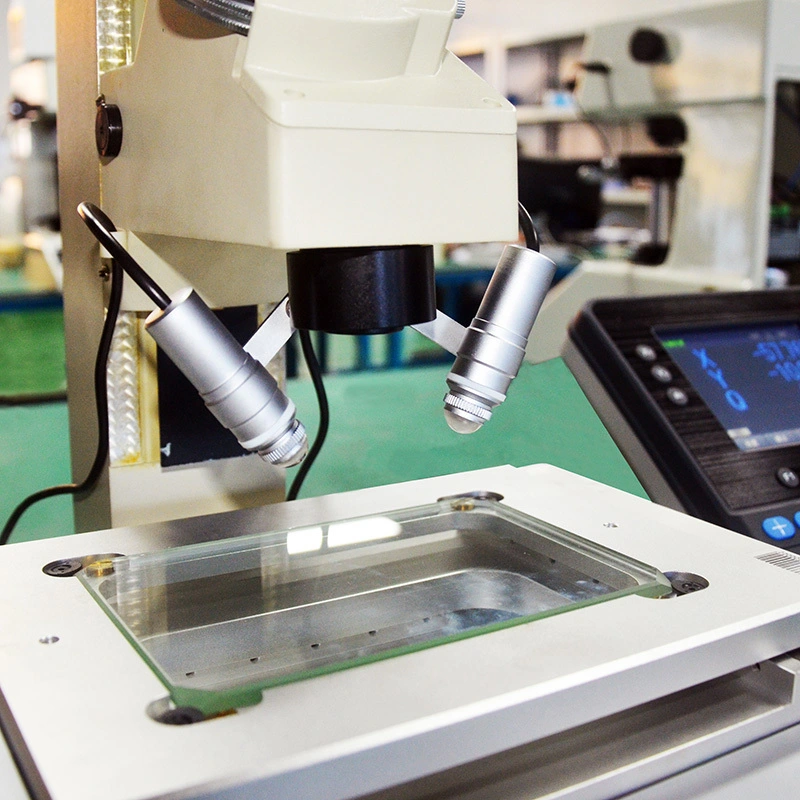

◆ Optical objective with adjustable LED ring reflector illumination;
◆ With high accuracy and high stability;
Specification
| Model | STM-1050 |
| Code# | 531-130 |
| Metall Stage Size | 252×252mm |
| Glass Stage Size | 196×96mm |
| Resolution | 0.5um |
| Measuring Accuracy | ≤5um |
| Measuring Device | Digital Readout DP400 |
| Max.Height of Specimen | 115mm |
| Max.Weight of Specimen | 5Kg |
| Max.Magnification | 150×（Φ0.13mm）（15×Eyepiece+10×Objective） |
| Min.Magnification | 20×（Φ6.5mm）（10×Eyepiece+2×Objective） |
| Standard Magnification | 30×（Φ0.13mm）（15×Eyepiece+2×Objective） |
| Standard Working Distance | 67mm |

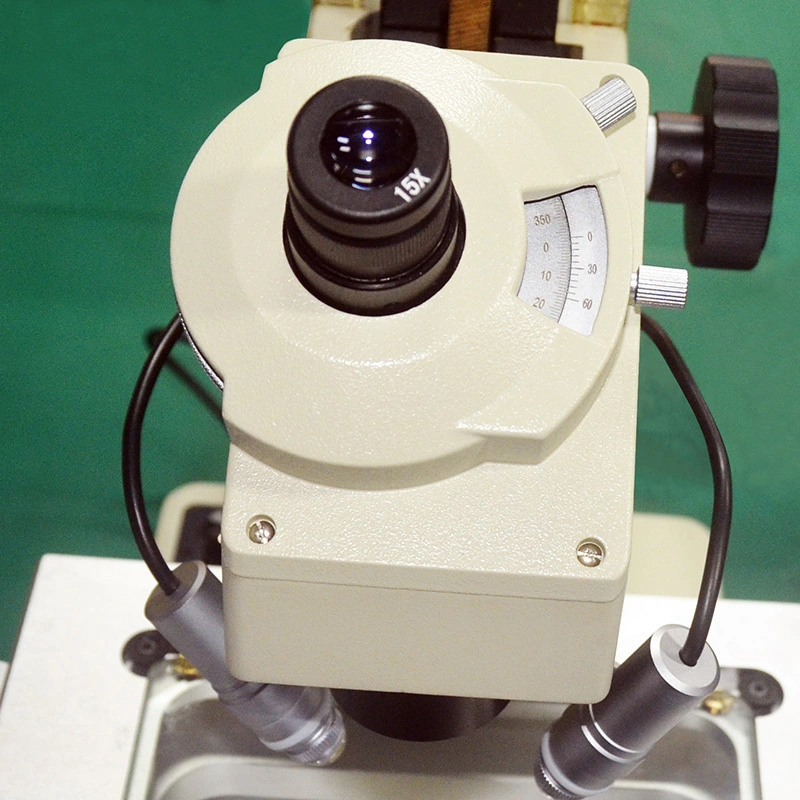

| Optical Tube | Monocular with 30°depression angle |
| 15×Eyepiece with Crossline Reticle | |
| Eyepiece | WF15/13 |
| Objective | Magnification:2× |
| Working Distance:2.638"(67mm) | |
| Eyepiece Protractor Range | 360° |
| Eyepiece Protractor Graduation | 1° |
| Vernier Angle Reading | 6’ |
| Contour Illumination | Light source:Tungsten bulb(24V;2W) |
| Surface Illumination | Ring LED illumination brightness adjustable |

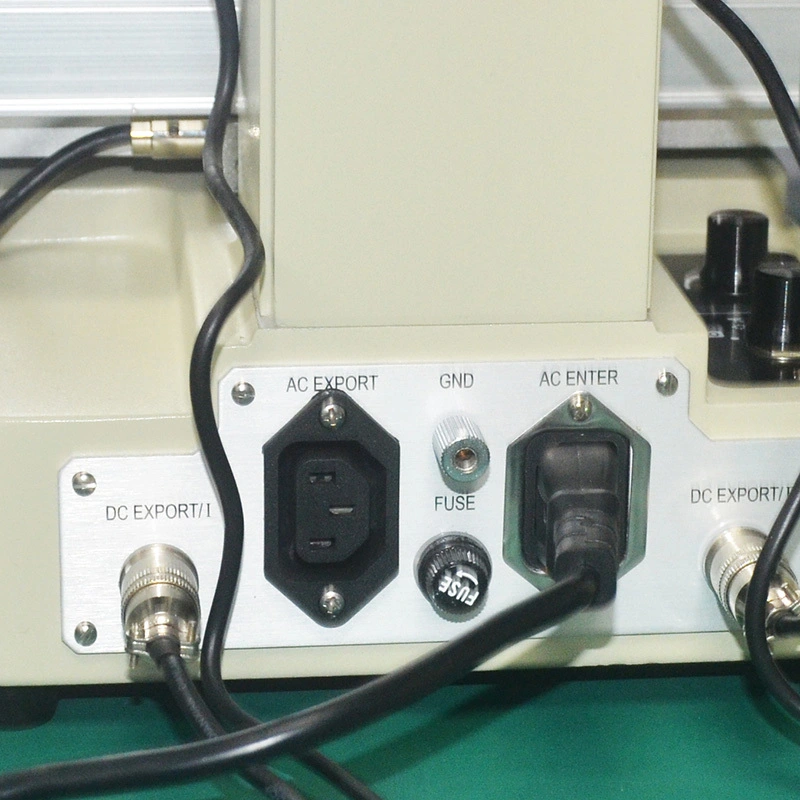

| Power Supply | AC110V/60Hz;220V/50Hz |
| Dimension(D×W×H) | 415×315×420mm |
| Packing Dimension(D×W×H) | 210×333×391mm |
| Gross/Net Weight | 30Kg/25Kg |
Standard Delivery:
| Accessory Name | Code# | Accessory Name | Code# | Accessory Name | Code# |
| 15XEyepiece | 531-522 | 2X Objective | 531-602 | Ring Illumination | 413-146 |
| Linear Scale | 581-201 | Power Cable | 581-921 | Operation Manual | STM-1050 |
