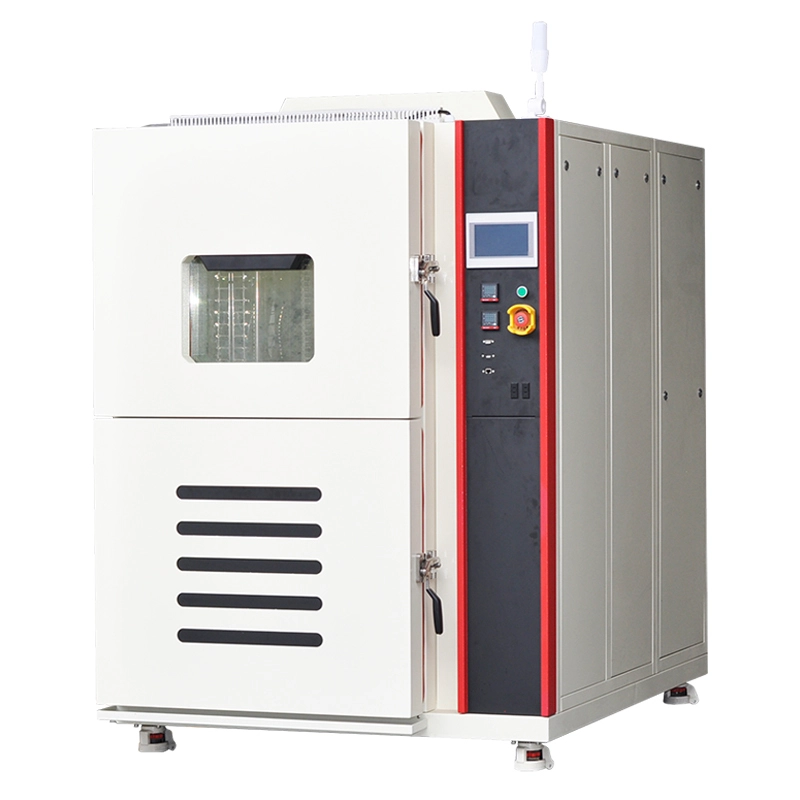

STS2 Series Two-box Type Thermal Shock Test Chamber 1

STS2 Series Two-box Type Thermal Shock Test Chamber 2

STS2 Series Two-box Type Thermal Shock Test Chamber

Model:

STS2-100,STS2-150,STS2-225

Code#:

221-201,221-201,221-221

Warranty:

12 month

Delivery Time:

15-30days

Certificate:

Inquiry

Write a Review

STS2 Series Two-box Type Thermal Shock Test Chamber 3

The two-box thermal shock test chamber is used to test the degree to which materials or composite materials can withstand extreme high and low temperatures in a continuous environment, in order to test the chemical changes or physical damage caused by thermal expansion and contraction in the shortest possible time.Applicable objects include metals, plastics, rubbers, electronics, and other materials, which can be used as a basis or reference for product improvement.

Product Characteristic

lThe upper and lower movement of the test frame is used to quickly transfer the test sample to the test area, minimizing the thermal load of cold and heat shock and shortening the temperature recovery time.

lTouch operation, program setting, fault detection and other functions are complete.

lRS-485 communication interface device, which can be used for local area network monitoring and recording with computers.

Detail Display

STS2 Series Two-box Type Thermal Shock Test Chamber 4

STS2 Series Two-box Type Thermal Shock Test Chamber 5

Specification

Commodity		Two-box Type Thermal Shock Test Chamber
Model		STS2-100	STS2-150	STS2-225
Code#		221-201	221-211	221-221
Interior Dimensions(DHW)mm		400500500	500500600	750500600
Exterior Dimensions		Actual products or quotations shall prevail!
Shock Temperature	High Temperature	+60℃～+150℃
	Low Temperature	L (-10℃～-40℃);F (-10℃～-55℃);X (-10℃～-65℃) conditions are optional
Temperature range of high temperature tank		+60℃～+200℃
Temperature range of low temperature tank		A (-55℃～-10℃);B (-65℃～-10℃);C (-80℃～-10℃) conditions are optional
Temperature Fluctuation		±0.5℃
Heating Time		RT room temperature ~ +200℃≤15min
Cooling Time		A（+20℃～-55℃）≤70min; B（+20℃～-65℃）≤80min; C（+20℃～-75℃）≤90min
Impact Recovery Time		≤5min
Basket moving time		Within 10S
Inner and outer box materials		Steel plate paint or 304 stainless steel
Insulation material		High-temperature and low-temperature resistant high-density polyurethane foam insulation material
Refrigeration Method		Air-cooled or water-cooled, using imported brand compressors
Throttle Actuator		Air Cylinder
Safety Protection Device		Leakage and short circuit protection, compressor high and low pressure protection, refrigerant high pressure protection, fault alarm system
