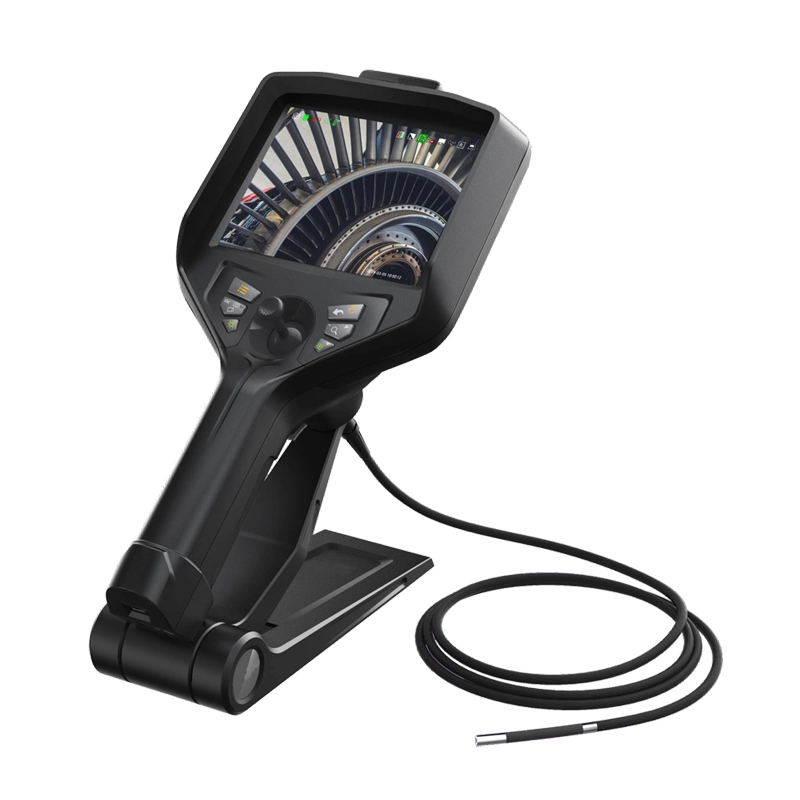

Ultraviolet-light Intelligent Videoscope VU510 Series
INTELLIGENT SOFTWARE
Strong intelligent image processing system: with the functions of mage rotation, white balance, exposure control, negative film and zoom in & out, comparative measurement, it can meet all kinds of complicated inspection needs.
White Balance: Auto white balance with strong color reduction; manual-control white balance according to inspection needs.
Exposure Setting: exposure suppression--the polished object is also inspected clearly; exposure compensation--when checking large cavity, it can be more effective and clearer
Normal Mode: HD image effect Negative Film Mode: Enhance the ability to compare and analyze the internal defects of the inspected objects.
Support 8X zoom in/out
UV Inspection on Site
FLEXIBLE ARTICULATION CONTROL
360 ° joystick-control articulation, damping type positioning design, precise probe locking technology, make the detection more accurate and efficient. Independently developed technology of long-distance transmission ensures bending angle ≥100°
STRONG HARDWARE
VU510 Ultraviolet-light HD intelligent videoscope adopts modular design, the host and the handle can be separated with one button. The dual light source of the probe is designed in an integrated way, and an insert tube is equipped with both ultraviolet light and white light at the same time. By one-key switch through the universal button, white light can be used to find the direction, and ultraviolet fluorescence detection can be performed.
Specification
VU510 Series | VU510 Ultraviolet-light Intelligent Videoscope | |
Ultraviolet Probe System | Probe Diameter | Φ6mm |
Camera Pixels | 1MPixel | |
Probe Resolution | 1280×720 | |
Video Resolution | 1280×720 | |
DOF | 10-100mm | |
FOV | 120° | |
Viewing Direction | Direct-view /90° Sideview | |
Light Source | UP1: Direct-view probe: Optic fiber UV illumination | |
UP2: Direct-view probe: Fiber UV illumination + LED White Front illumination | ||
UP3: Sideview Probe: LED UV illumination | ||
Illuminance | 1200uw/cm2 | |
Tube Length | 1.5/2.0m/3.0 Meters | |
Protecting Device of Durability | 42mm buffer protection device between tube and handle | |
Articulation | 360° joystick-control articulation | |
Bending Angle | Maximun:190° | |
Probe Positioning | Damping positioning & articulation lock device | |
Monitor Display System | Display | VU510 5.1" color IPS display, all sight viewing angle, sunshade design |
Display Resolution | 1280*960 | |
Zoom In/Out | 8X | |
Language | English / French / German / Spanish / Japanese / Traditional Chinese / Simplified Chinese / Russian / Korean | |
White Balance Suppression | 5 levels adjustable | |
White Balance | Auto white balance, automatically adjusts and eliminates speckles to achieve optimal images. | |
Image Effect | Negative film/ black & white/standard | |
Temperature Indication | High temperature alarm （optional） | |
IP Level | Probe/tube: IP67 | |
Software Function | Playback, image parameters adjust and rotate | |
Structure | Hand-held integrated design | |
Image/Video Format | JPEG/MOV | |
Comparative Measurement | Use measuring probe and analog scale to compare and analyze the internal defect and size of the inspected object. | |
Data Port | HDMI video output, Micro USB port with water &dust proof device | |
Working Time | ≥8h | |
Battery Capacity | 3.7V，3200mAh×2 | |
Power Charge | DC5V, 1A | |
Weight | ≤0.8Kg | |
Wi-Fi Transmission | Image transmission to Mobile phone, computer by Wi-Fi(optional) | |
Compatibility | Interchangeable monitor and tube with different diameters | |
Accessories | Standard Configuration | Instrument case:1pc; videoscope: 1 set; battery: 2pcs; card reader: 1pc; 32G. TF card: 1pc; charger: 1pc; USB cable: 1pc; user manual: 1 set |
