universal portable hardness tester automatic for small areas Sinowon

Company Advantages
1. The design of Sinowon hardness measuring device complies with the industrial design concepts.
2. The product outperforms other similar products in functionality and quality.
3. With the functions that meet user need, the product has a good practical value.
4. Sinowon Innovation Metrology Manufacture Limited. has built large and clean warehouse to make sure quality of portable hardness tester stock.

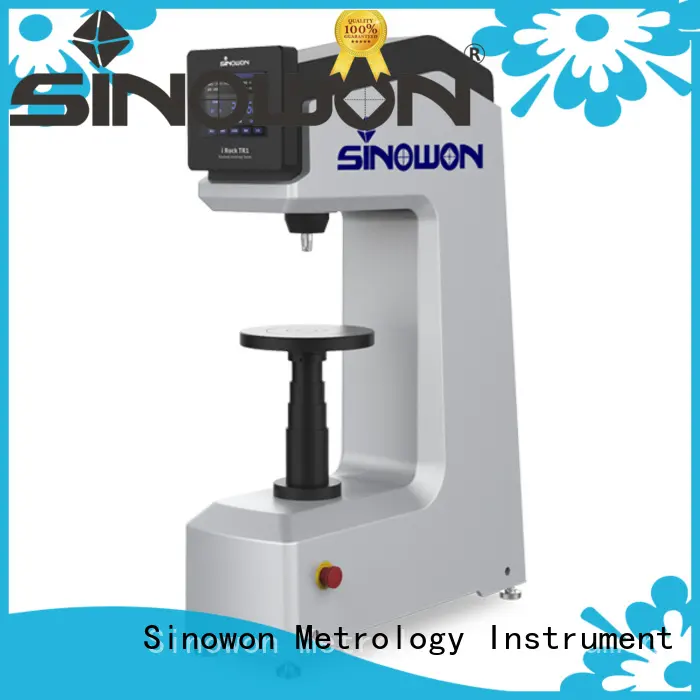

◆ A kind of Full-auto Intelligent Digital Rockwell Hardness Tester, available to test Rockwell and Superficial Rockwell hardness automatically.

◆One-key operation, auto lifting, auto load-change, auto loading/dwell/unloading,auto conversion, auto testing.

◆ Equipped with friendly operation interface, 5.2“ color touch screen directly display test force, dwell time, conversion value, indenter type, etc.

◆ Auto calculating and displaying test result, Max, Min, Ave, and hardness deviation. Resolution is 0.1HR.

◆ Available to set up upper and lower limit, with the function of over-error warning, data analysis chart, single test and group test.

◆ With software compensation function, available to compensate ±3HR, need not mechanical adjustment.

◆ With function of auto conversion according to ASTM E140, without checking hardness contrast table.

◆ Available to switch languages.: Chinese、English、German、Portuguese、Turkish、Czech、Korean.

◆ Available to save 2000 single test results and 1000 group test results. Can realize data viewing and analysis

◆ With optional wireless Bluetooth printer, there is no need to record results and report by hand.

◆ With optional data analysis software and Bluetooth receiver to input and analyze data.

◆ Support FexQMS data analysis and control software, improve integral control and decrease material consumption.

Product Name	Automatic Rockwell Hardness Tester	Automatic Superficial Rockwell  Hardness Tester	Automatic Twin Rockwell  Hardness Tester
Model	iRock-DR1	iRock-SR1	iRock-TR1
Code #	811-330	811-340	811-350
Preliminary Test Force	10Kgf(98.1N)	3Kgf(29.4N)	3Kgf(29.4N);10Kgf(98.1N)
Total Test Force	60Kgf(588.4N), 100Kgf(980.7N), 150Kgf(1471N)	15Kgf(147.1N), 30Kgf (294.3N), 45Kgf(441.3N)	15Kgf(147.1N)     30Kgf(294.3N), 45Kgf(441.3N);    60Kgf(588.4N), 100Kgf(980.7N), 150Kgf(1471N)
Rockwell Scale	DR1: HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRH, HRK,HRL, HRM, HRP, HRR, HRS, HRV
Superficial Rockwell Scale	DS1: HR15N,HR30N,HR45N; HR15T,HR30T,HR45T; HR15X,HR30X,HR45X;HR15Y,HR30Y,HR45Y
Full Rockwell Scale	TR1: HRA, HRB, HRC, HRD, HRE, HRF, ;15T,30T,45T;15T,30T,45T; 15N,30N,45N, etc
Dwell Time	1-60s adjustable
Display Screen	5.2 ”Color touch screen; Resolution：640*480
Resolution	0.1HR
Loading  Mode	Auto loading/dwell/unloading
Conversion Scale	HV、HBS、HBW、HK
Conversion Standard	ASTM,DIN
Language	Chinese、English、German、Portuguese、Turkish、Czech、Korean
Software Correction	-3.0HR ~ +3.0HR, step value 0.1HR
Data Processing	2000 group single dat, line chart of group data function;  respectively provide single data viewing and group data viewing
Print	Optional Bluetooth Printer
Max. Height of Specimen	280mm
Throat	170mm
Power Supply	AC 220V/50Hz; AC110V/60Hz
Dimension	615 x 225x 885mm
Packing Dimension	670×440×1000mm
Net Weight /Gross	125Kg/140Kg
Execution standard	GB/T230.2, EN-ISO 6508, ASTM E-18

Company Features
1. Sinowon Innovation Metrology Manufacture Limited. deals in portable hardness tester of fine quality at preferential prices.
2. With the mastering of advanced technology, Sinowon can produce rockwell hardness scale with excellent performance.
3. We hold the belief of rockwell hardness testing machine to be a professional enterprise. Call now! Always following the vision of rockwell hardness , Sinowon aims to be the leading manufacturer in this industry. Call now!
