    Vacuum Inlaying Machine CMP-250 2

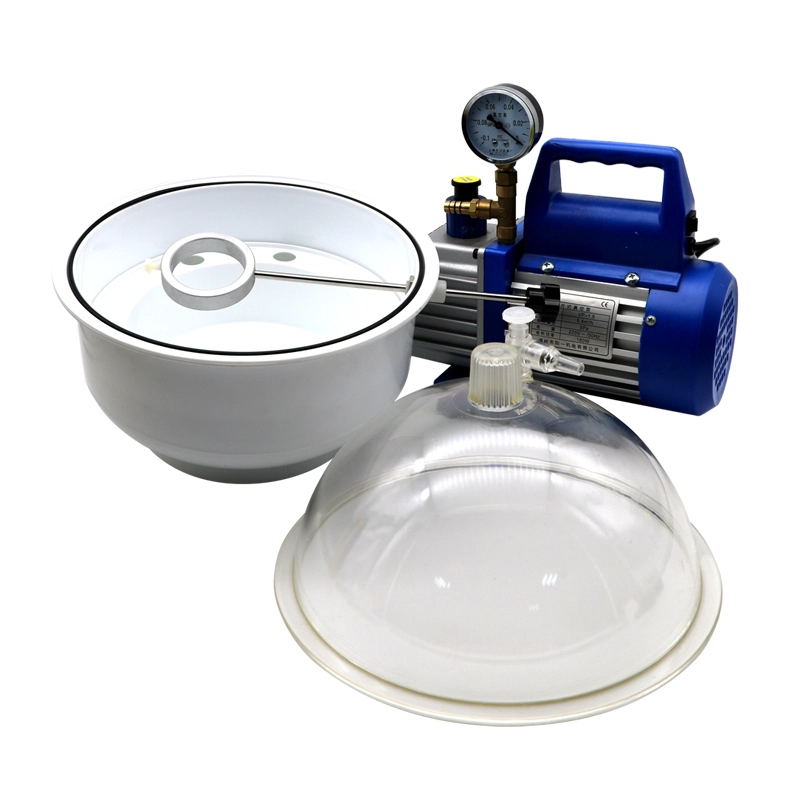

    The CMP-250 is a castable vacuum chamber for cold mounting. It can significantly improve penetration of voids and provide better edge retention. This machine is designed for impregnation of porous materials, such as specimens for failure analysis with cracks, porous casts, electronic components, rocks minerals, ceramics, etc. Its large vacuum chamber allows for 11 1.5inch molds to be processed simultaneously.


    Product Feature


     Large vacuum chamber;

     Transparent cover, easy to observe samples;

     Retractable arm, easy to use;

     Efficient vacuum pump;

     Applications: epoxies resins, acrylic resins, Polyester resin, etc.


    Specification



    Description

    CMP-250

    Ultimate Vacuum

    10Pa

    Mold size

    ● 30mm 1,1.25,1.5, 2.0inchRectangular

    Power

    110/220V50/60Hz, Single Phase

    Chamber (WxDxH)

    300*300*300

    Pump(WxDxH)

    260*110*240

    Weight

    6Kg

    Epoxies resins

    ● 1sets

    Mould Release

    250ml




    Vacuum Inlaying Machine CMP-250 3

    Transparent resin observation cover

    Vacuum Inlaying Machine CMP-250 4

    High-efficiency vacuum pump

    Vacuum Inlaying Machine CMP-250 5

    Gating System


    Vacuum Inlaying Machine CMP-250 6

    Insert hard mould silicone soft film

    Vacuum Inlaying Machine CMP-250 7

    Epoxy Set

    Vacuum Inlaying Machine CMP-250 8

    Acrylic Suit
