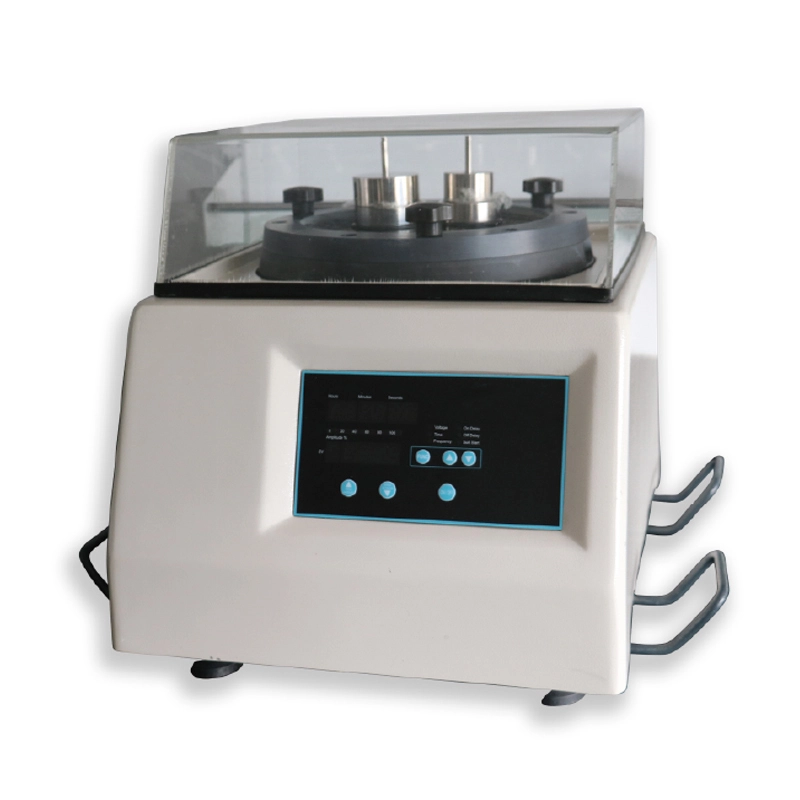

Vibratory Polisher GP-9

    oops...!

    no product data.

    Go to homepage

    Vibratory Polisher GP-9 2

    The GP-9 is an automatic vibratory polisher designed to prepare high quality polished surfaces on a wide variety of materials, especially for electron-backscatter diffraction (EBSD) applications. The high frequency vibration in horizontal motion produces a very effective polishing action to remove minor deformation remaining after mechanical preparation and reveal the stress-free surface. Ideal for EBSD specimens preparation.

    Product Feature


    ◆ Frequency and voltage controls. By adjusting the vibrating frequency, different size specimens can be polished. By changing the applied voltage,the speed of the polishing action can be easily controlled;

    ◆ Timer control. Stop automatically;

    ◆ Capable of handling small or large specimens;

    ◆ Multiple size holders (1-inch upto 2-inch diameter, others can be customized);

    ◆ Robust and durable design;

    ◆ Easy to use and service;

    ◆ Ideal for all materials.




    Specification


    Description

    GP-9

    Bowl Size (mm)

    Ø228.6mm/9inch

    Power

    110/220V50/60Hz

    Motor

    350W

    Dimension(WxDxH)

    430*530*440

    Weight(kg)

    82

    Specimen Holder, 1.25inch

    ● 3pcs

    Holder Weights, 1.25inch

    ● 3pcs

    Lever Plate for 1.25inch

    ● 1pcs

    Polishing Pad

    ● 1pcs

    Other holders, weights and lever plate

    1inch  1.5inch  2inchcan be customized

    ●StandardOption



    Details
