    VicPad Vickers Hardness Vision Measurement 2


    Application

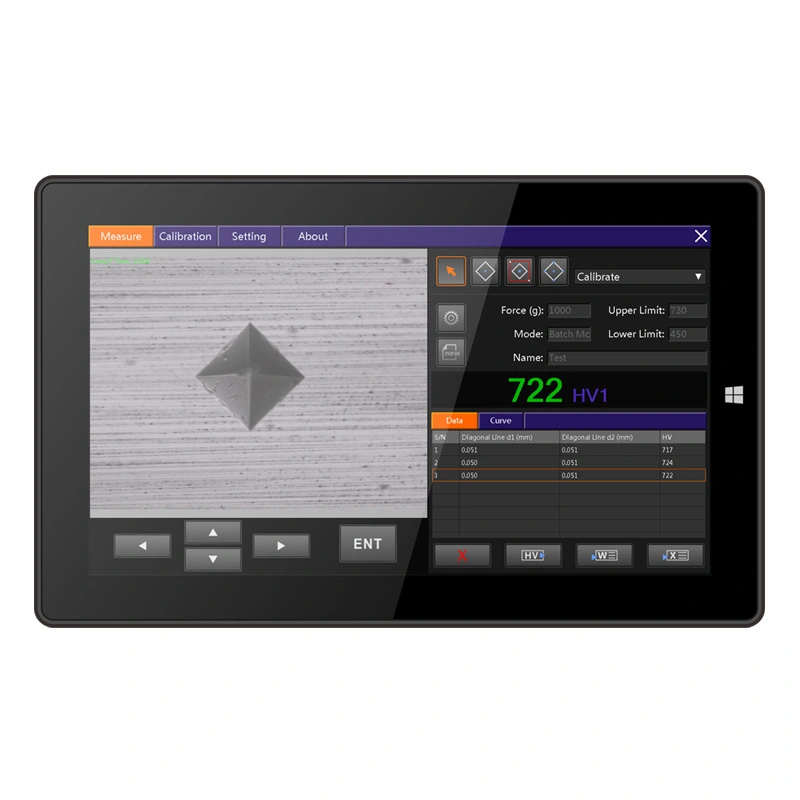

    VicPad was developed by Windows operation system, it integrated high resolution CMOS camera and iVicky 3.0 vickers software, VicPad can be worked with any vickers hardness testers, replace the traditional eyepiece, directly measure the indentation, mainly used to upgrade existed or new vickers hardness testers.

    There is no need to aim indentation and reading dialog line, and can avoid human error when measure dialog line, largely improve accuracy and efficiency.

    Users can export Word/Excel report, and feedback the result to their suppliers and customers, improve quality control capacity.



    Specification


    NameVickers Hardness Vision Measurement
    ModelVicPad
    Operation SystemWin10
    Size of Tablet10.1”
    USB ConnectorMicro-USB2.0, Type C
    CPUIntel Cherry Trail X5-z8300
    RAM4GB
    Hard Disc32GB
    Camera1.3MP Pixel, 1/3”CMOS Color Camera
    Vickers SoftwareiVicky 3.0 Tablet Vickers Software
    ApplicationAny Vickers Hardness Testers
