video measuring system prices military auto touch 3d vision measurement system manufacture
-
v s
- has a team of professional and technical personnel with high production efficiency.
- provides practical services based on different customer demand.
- always adheres to the strategic orientation of 'people-oriented, efficient, pragmatic and sustain-developed'. We focus on sincerity-based business and technological innovation during development. To gain mutual benefit, we strengthen the partnerships at home and abroad.
- was established in . During the development, we have constantly explored in the market and have introduced advanced science and technology and production equipment. Now we develop the business on the basis of large-scale production.
- 's vision measuring machine gain a relatively large market share in China. They are also exported to Africa, Southeast Asia, and other countries and regions.
1. The product is well known for high accuracy and great stability. Sinowon collection of video measuring system prices encompasses video measuring equipment, vision system for measurement, video coordinate measuring machine, etc.
2. Cusomers in the industry greatly rely on the product for its stable performance and long service life, delivering more economic benefits. Many international famous manufacturers choose this product for its premium quality
3. The finest quality of raw materials and sophisticated technology used for manufacturing vision measurement system, make them machine vision system in metrology. Its quality and accuracy are improved every year
4. In the vision measurement industry, Sinowon now is a leading manufacturer in the market. A quality control system is implemented for the product

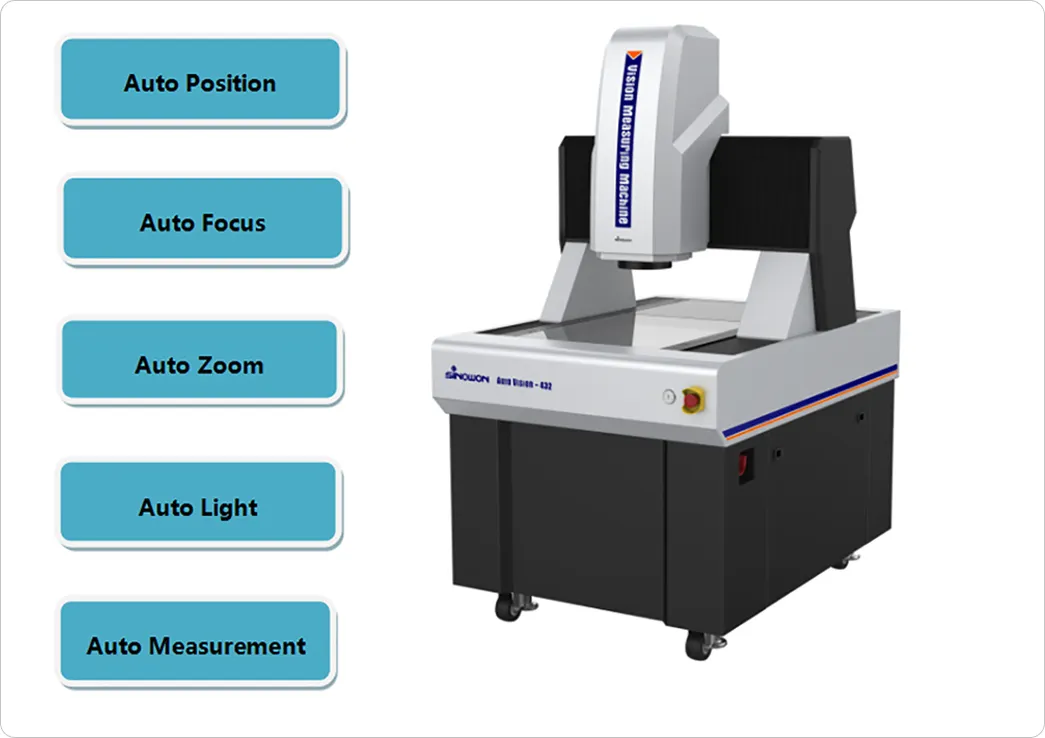

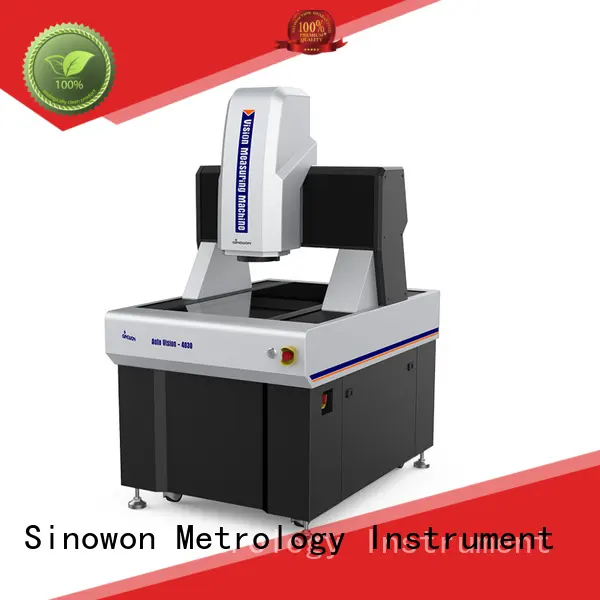

2.5D AutoVision is a Gantry Fully Auto Vision Measuring Machine, it is designed for high accuracy and large dimension measurement. Equipped with movable bridge structure, the workpiece is fixed, which can ensure measurement accuracy and stability. It is widely used in electronic industry, medical devices, LCD, aerospace and other industries measurement.
Product Characteristics
◆ Moving bride structure, the workpiece is fixed;
◆ Four-axis CNC fully auto close loop control, auto measurement;
◆ “00” grade “JINANQING”marble base and pillar, stable and reliable;
◆ Imported open type linear scale, resolution is 0.1um, high accuracy, great stability;
◆ Imported H grade linear guide, precision grinding ball screw and AC servo motor, ensure accuracy stability of system position;
◆ Imported high definition color industry camera, ensure clear observation and stable measurement requirement;
◆ 6.5X continue auto zoom lens, precision auto zoom, only need to make pixel calibration once time;

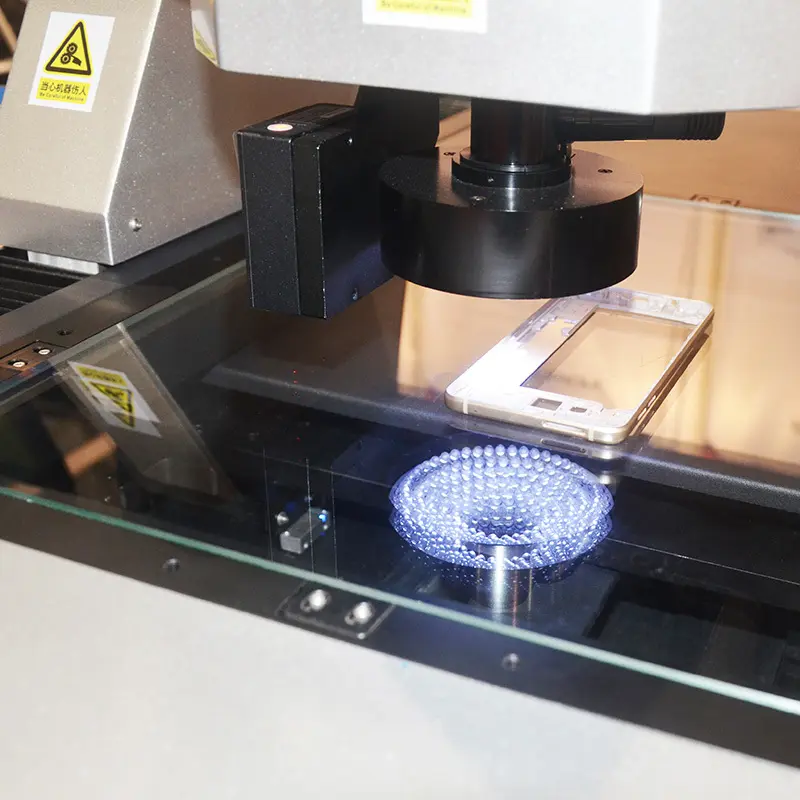

◆ Programmable 5-ring 8-division LED surface illumination, contour parallel LED illumination, can realize 256 grade brightness adjustment intelligently;
◆ With proprietary fully auto measuring software iMeasuring 4.1, powerful function, simple operation;
◆ Optional touch probe and laser probe, it can also be customized according to customer request;
◆ Optional FexQMS Measuring Data Analysis and Real-time monitoring software which enhance program control and reduce material consumption.
Technical Specification
| Product Name | 2.5D Automatic Vision Measuring Machine | ||||||||||
| Model | AutoVision432 | AutoVision542 | AutoVision652 | AutoVision862 | |||||||
| Code# | 520-121 | 520-131 | 520-141 | 520-151 | |||||||
| X/Y-axis Travel（mm） | 400x300mm | 500x400mm | 600x500mm | 800x600mm | |||||||
| Z-axis Travel（mm） | 200mm | ||||||||||
| X/Y/Z 3-axis Linear Scale（mm） | Imported Open Linear Scale, resolution：0.1um | ||||||||||
| Guidance Mode | Imported H grade Linear Guide，Double-Track Double Slider Guide | ||||||||||
| Operation Mode | Joystick controller, Mouse operation, automatic detection program | ||||||||||
| Measurement Accuracy | XY-axis：≤2+L/200(um) | ||||||||||
| Z-axis：≤5+L/200(um) | |||||||||||
| Repeatability | ±2um | ||||||||||
| Video System | 1/2" Color CCD Camera | ||||||||||
| 6.5X Automatic Zoom Lens; Optical Magnification: 0.7X~4.5X, Video Magnification: 20X~129X(21.5”monitor) | |||||||||||
| Field of View(mm) Diagonal * Horizontal*Vertical） | Lens Magnification | 0.7x | 1x | 2.0x | 3.0x | 4x | 4.5x | ||||
| 1/2"CCD | 11.43x9.14x6.86 | 8.00x6.40x4.80 | 4.00x3.20x2.40 | 2.67x2.13x1.60 | 2.00x1.60x1.20 | 1.78x1.42x1.07 | |||||
| Illumination | Contour | LED Parallel Contour Illumination | |||||||||
| Surface | 5-ring 8-division 0~255 grade continue adjustable | ||||||||||
| Software System | iMeasuring 4.1 Fully Auto Measuring Software | ||||||||||
| Load Capacity | 30Kg | 30Kg | 30Kg | 30Kg | |||||||
| Working Environment | Temperature 20℃±2℃，Humidity Range<2℃/hr,Humidity 30~80%,Vibration<0.002g,<15Hz | ||||||||||
| Power | 220V/50Hz/10A | ||||||||||
| Dimension | 1160x800x1650mm | 1450x950x1650mm | 1600x1050x1650mm | 2000x1200x1650mm | |||||||
| Packing Dimension | 1380x1170x1910mm | 1690x1300x2000mm | 1800x1400x2000mm | 2300x1700x2000mm | |||||||
| Weight | 650Kg | 780Kg | 1380Kg | 2000Kg | |||||||

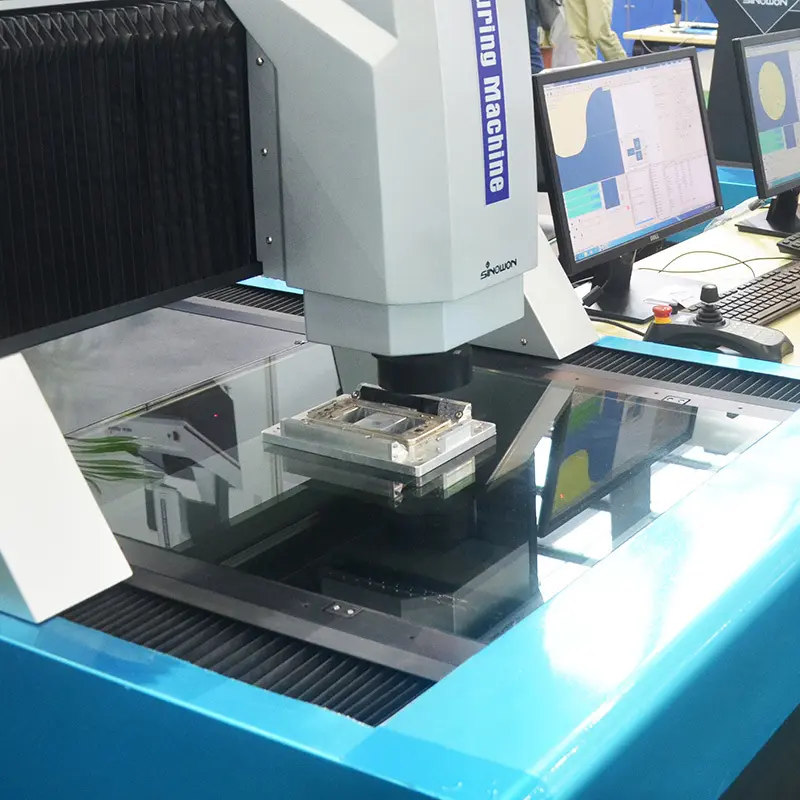

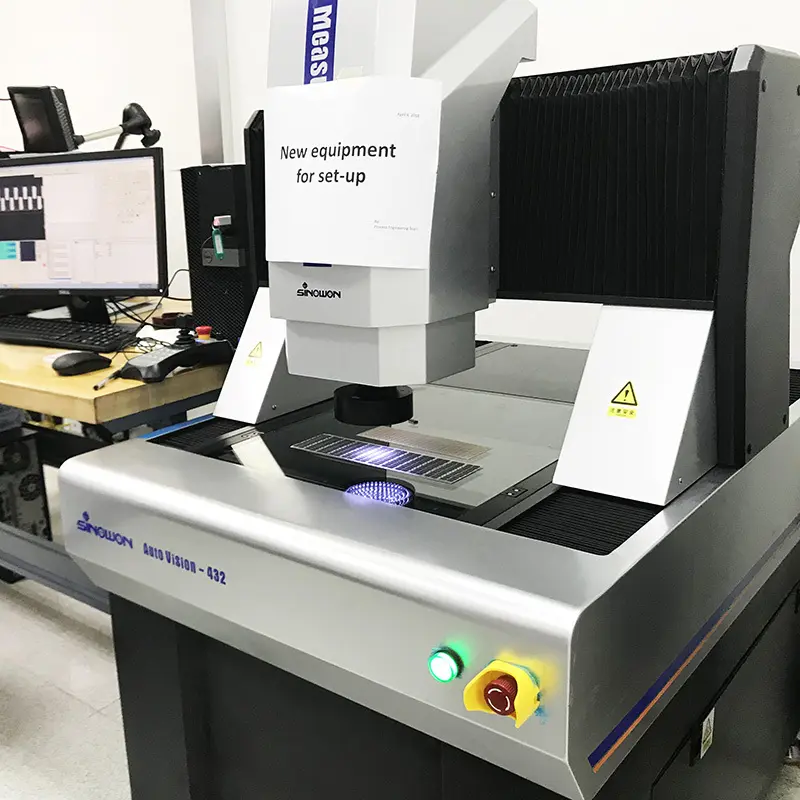

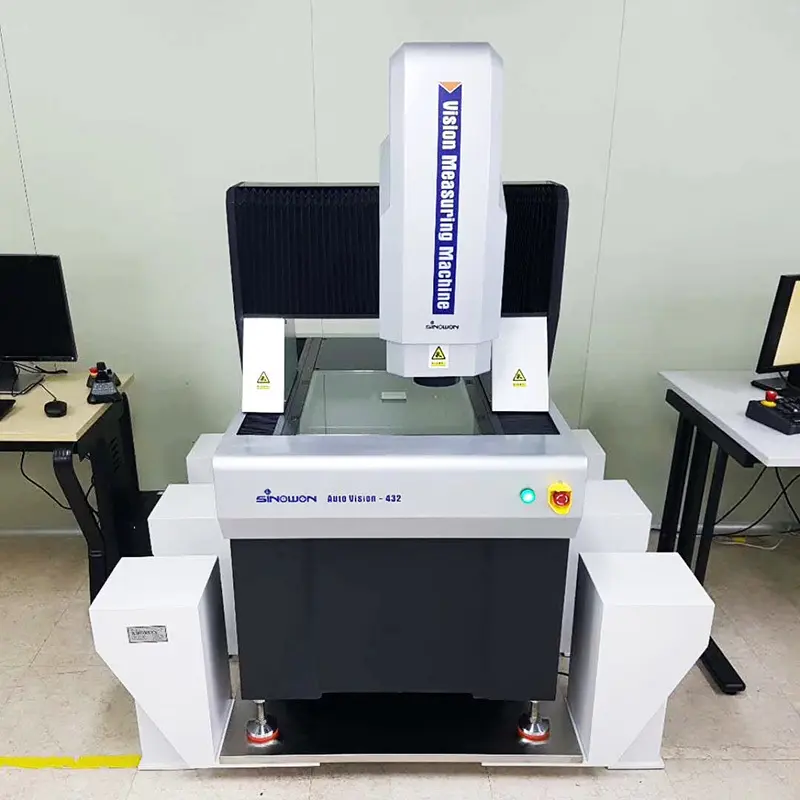

Product Details
Company Features
1. Sinowon Innovation Metrology Manufacture Limited. with a focus on the production and research and development of vision measurement system, has a good reputation at home and abroad.
2. Every Man Has His Price. Sinowon Provides High Quality vision measurement, video measuring system prices, video measuring equipment To Satisfy Customers' Needs With Support Of Advanced Technique. Welcome To Visit Our Factory!
3. By upholding the concept of vision system for measurement, Sinowon strives for the sustainable development in the industry. Check it!
