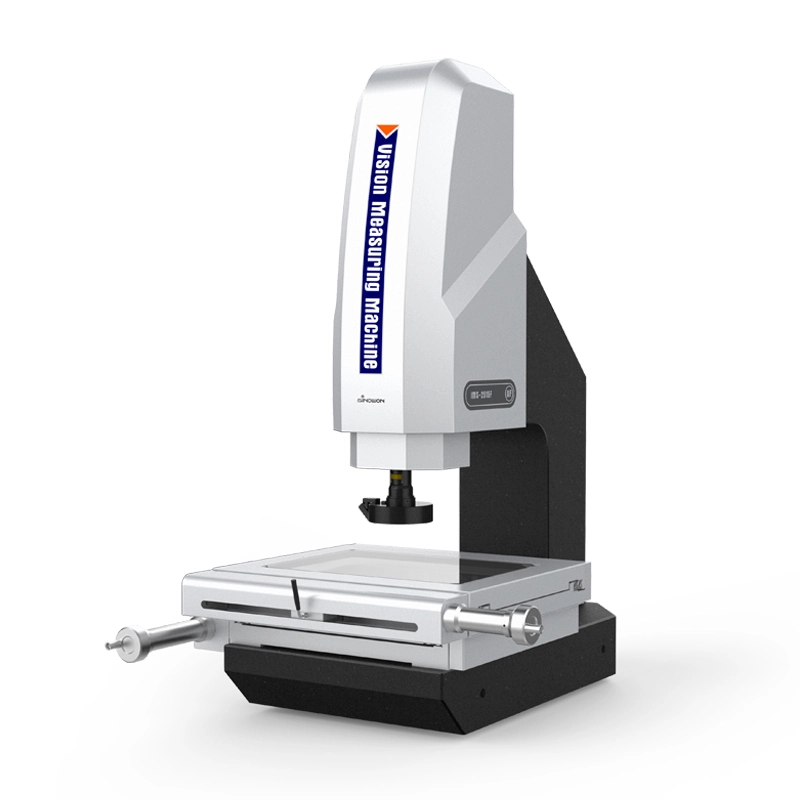

2.5D iFocus Vision Measuring Machine
Brief Induction:
iFocus is the 2.5D high accuracy semi-auto geometric vision measuring machines with optical detent zoom lens, and the Z-axis focus is motorized by the DC servo motor and it is adjustable by the software, it is widely applied at the industry of 3C, semiconductor, PCB, automobile parts, medical parts, precise molds, aviation and aerospace, etc.
Product Characteristic:
l High precision marble base and pillar ensures the high stability of vision measuring system;
l High precision toothless rod and fast moving locking device ensures repeatability error is less than 2um;
l High precise working stage with 0.5um optical linear scales ensures the accuracy is less than 2.5+L/200um;
l High definitive detent zoom lens and high resolution digital camera ensures clear image without distortion;
l With programmable surface 4-ring 8-division LED Cold Illumination and contour LED telecentric illumination and built-in intelligent light adjustment, it can automatic control the brightness in the 4-ring 8-division;
Technical Specification：
Mode | iMS-2010F | iMS-2515F | iMS-3020F | iMS-4030F | iMS-5040F |
Code# | 521-140F | 521-150F | 521-160F | 521-170F | 521-180F |
Working Table | 270x350mm | 408x308mm | 458x358mm | 608x470mm | 650x580mm |
Material | Marble Table | Metal Table | Metal Table | Metal Table | Marble Table |
Glass Table | 142x242mm | 306x198mm | 356x248mm | 456x348mm | 541x441mm |
X/Y-axis Travel | 200x100mm | 250x150mm | 300x200mm | 400x300mm | 500x400mm |
Z-axis Travel | High-precision linear guide and servo motor control system , working travel 200mm | ||||
X/Y/Z-axis Travel | 0.0005mm | ||||
X/Y-axis Accuracy | ≤2.5+L/200(um) | ||||
Hysterisis Error | 2um | ||||
Base and Pillar | High Accuracy Jinan Qing Marble | ||||
Illumination System(Software Adjustment) | Surface: Stepless Adjustable 4-ring 8-division LED Cold Illumination, every division can be adjust independently | ||||
Contour: LED Parallel Illumination | |||||
LED Laser Navigation Lights | |||||
CCD Camera | High Resolution Digital Camera | ||||
Zoom lens | 6.5X High Resolution Detented Zoom Lens | ||||
Magnification：0.7X~4.5X；Video Magnification：26X~172X | |||||
Working Environment | Temperature：20℃±2℃, change range < 2℃/hr | ||||
Humidity：30% ~80%RH | |||||
Vibration<0.002g，<15Hz | |||||
Measuring Software | iMeasuring 2.2 | ||||
Operation System | Support XP，WIN7，WIN8.1，WIN 10, 32/64 operating system | ||||
Language | English, Simplified Chinese, Traditional Chinese, other language versions can be added | ||||
Dimension(W*D*H) | 677x552x998mm | 790x617x1000mm | 838x667x1000mm | 1002x817x1043mm | 1104x852x1085mm |
Net Weight | 150Kg | 175Kg | 185Kg | 350Kg | 380Kg |
